Working Principle And Characteristics Of High Speed Tablet Press Machine

Working Principle And Characteristics Of High Speed Tablet Press Machine

Tablet press is a common equipment in solid preparation. It places particles or powder materials in the die hole and presses them into tablets by punch. Taking the automatic high-speed tablet press as an example, this paper introduces the working process, transmission form and performance of the rotary tablet press, and analyzes how to maintain and maintain the common faults of the tablet press to ensure the long-term and effective operation of the equipment.

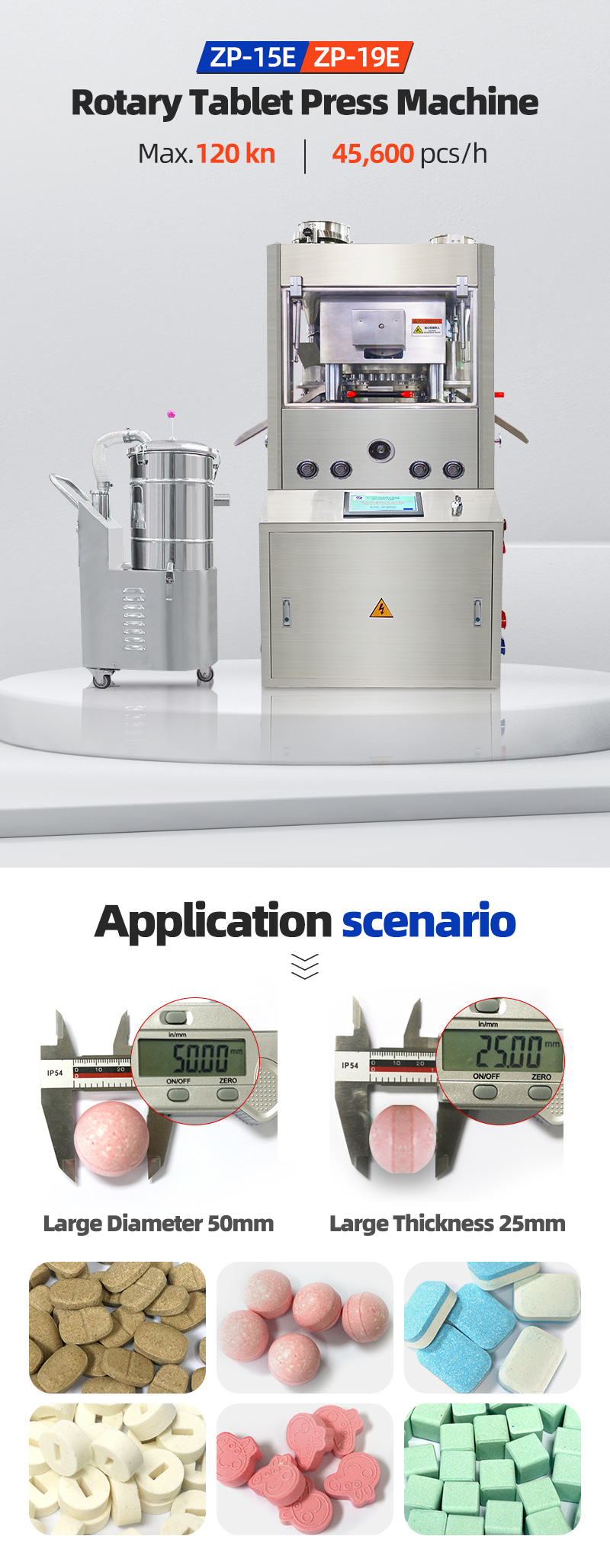

1. Working principle of high-speed tablet press

Full automatic high-speed tablet press, including filling, quantitative, preloading, main pressure forming, tablet discharge and other processes. The upper and lower punches of the full-automatic tablet press are driven by the punch plate and move from left to right along the upper and lower guide rails respectively. When the punch moves to the filling section, the upper punch moves upward to bypass the forced feeder. At the same time, the lower punch of the rotary tablet press moves downward under the action of the pull-down cam. At this time, the upper surface of the lower punch forms a cavity with the die hole, The powder particles are filled into the cavity of the middle die hole after being stirred by the forced feeder impeller, and excessive filling is formed when the lower punch passes through the low point of the pull-down cam. The punch of the tablet press continues to move with the punch plate, and the lower punch gradually moves upward when passing through the filling cam, and pushes the excess powder particles in the cavity out of the middle die hole into the quantitative section. In the quantitative section, the upper surface of the filling cam is horizontal, and the lower punch maintains a horizontal motion state. The quantitative scraper scrapes out the excess powder particles on the upper surface of the middle die, ensuring the consistent filling amount of powder particles in each middle die hole. In order to prevent the powder in the middle mold hole from being thrown out, a cover plate is installed behind the quantitative scraper. The lower punch is pulled down by the lower punch protection cam of the tablet machine, and the upper punch also moves downward under the action of the lower pressing cam. When the middle die hole moves out of the cover plate, the upper punch enters the middle die hole. When the punch passes through the preloading wheel, it completes the preloading action and then continues to pass through the main pressure wheel. After the compaction action is completed through the extrusion of the main pressure wheel, it moves up through the tablet cam, moves up through the upper punch, pushes up through the lower punch, and pushes the pressed tablets out of the middle die hole. The tablets enter the tablet discharging device to complete the whole tablet pressing process.

2. Transmission system and characteristics of high-speed tablet press

The main drive system of the tablet rotary tablet press is to provide power for the tablet press. The full-automatic tablet rotary tablet press requires that the speed of the main drive system is adjustable and has sufficient torque. The speed of the automatic tablet press is stable and reliable under large impact load. The main drive system mainly includes high-power AC motor, frequency converter, tensioning pulley, large pulley, synchronous toothed belt, small pulley, hand wheel, worm gear reducer, main drive shaft and other components.

The automatic rotary tablet press adopts frequency conversion technology to replace the mechanical speed regulation of stepless speed regulation motor. The advantages of variable frequency speed regulation are energy saving and consumption reduction, reliable control, stable operation and low noise. The frequency converter of tablet press itself has many protection functions such as overvoltage, low voltage and overcurrent. The actuator can be monitored in real time through the output parameters. In case of abnormality, the protection function acts. The frequency converter controls the main motor to stop running, displays the fault code and indicates the cause of the fault, which further ensures the safe and reliable operation of the motor.
