The Component Part Of Aluminum-Plastic Aluminum Packaging Machine

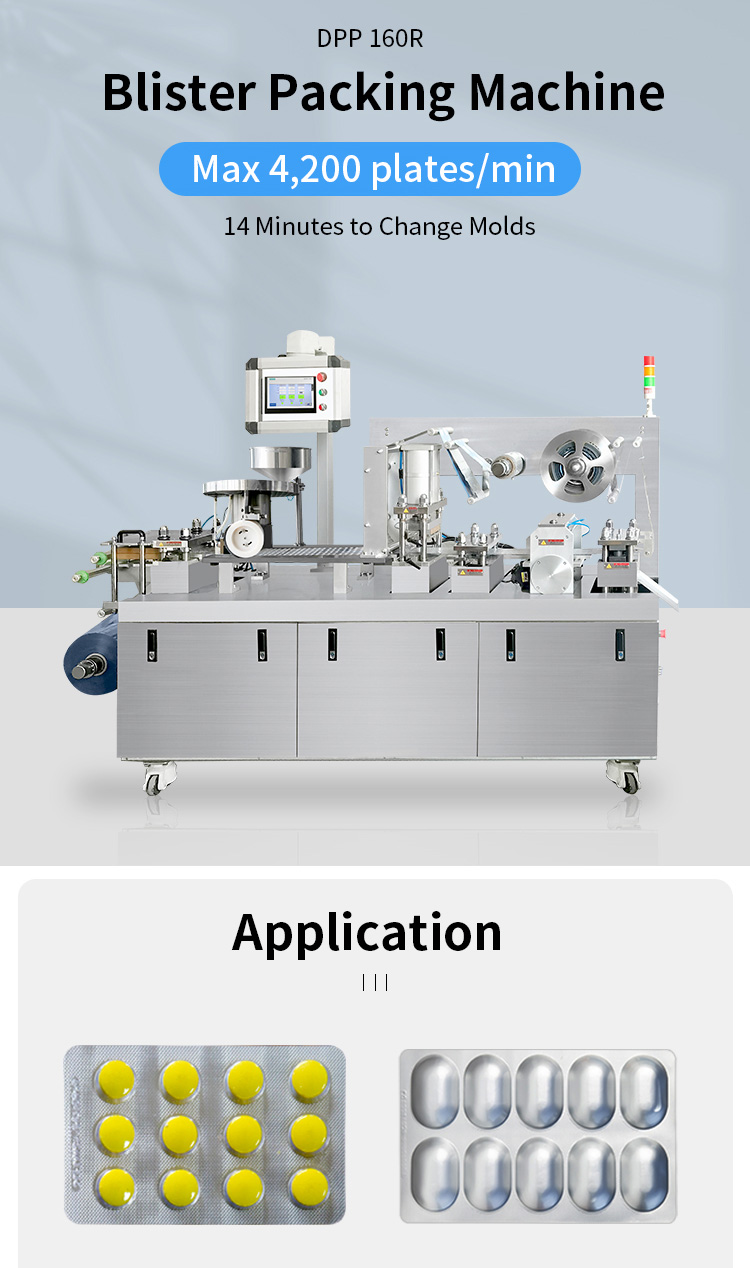

preparation packaging in China, and is widely used in medicine. Does the user know about the machine parts of the aluminum-plastic aluminum packaging machine? This article details the structural composition of the machine. Aluminum plastic aluminum packaging machine is mainly composed of winding, heater, forming, filling, thermal sealing, clip device, printing device, punching, transmission system, body and pressure, cooling, electrical control, frequency control and other systems.
(1) Release the roll part. The plastic film and aluminum foil coil are fixed on the equipment, with compression, braking and axial position adjustment devices, and some are also equipped with cursor tracking devices.
(2) Aluminum-plastic aluminum packaging machine heater. The heater uses electroheating to soften the plastic film for molding.
(3) Forming part. It is composed of forming roller (board), connecting valve board, vacuum (compressed air) system, cooling water system, etc. The heated into plastic plastic film sheet is sucked (blown) into a specified shape through the molding device of the smooth foam cover.
(4) Fill the department. The feeder will fill the tablets, capsules, etc. into the formed blister.
(5) Thermal sealing department. It is composed of electric heating system, air pressure control and mechanical tension device, which closes the aluminum foil with the foam plastic membrane.
(6) Aluminum-plastic aluminum packaging machine clip delivery device. Complete the forward delivery work of packaging materials.
(7) Printing device. Print out the batch number and press out the tear line on the packed plate.
(8) Cutting and cutting department. It is composed of main body, crankshaft, connecting rod, guide column, concave and convex mold, back (pressure) material plate and frequency conversion speed regulation system. It is the aluminum plastic bubble film after heat sealed into the specified size plate to complete the latter process of aluminum plastic aluminum packaging machine. Due to the function of frequency conversion speed regulation system, the number of strokes can be set according to the length of stroke.
(9) The body. To support and fix various parts, systems, it is composed of housing, mounting panels and welding base.
Aluminum-plastic aluminum packaging machine is composed of the above nine main components.
