Introduction
This machine is mainly used for coating and polishing the tablets, pills and granules, it is also suitable for coating candy. The tablet will have bright and smooth surface after being coated and polished. It protects the tablet core from being oxidized and deteriorated, from being affected with damp or volatilizing. It also covers the peculiar smell of tablet core, makes it easy for distinguishing and dissolving in human stomach intestine system.

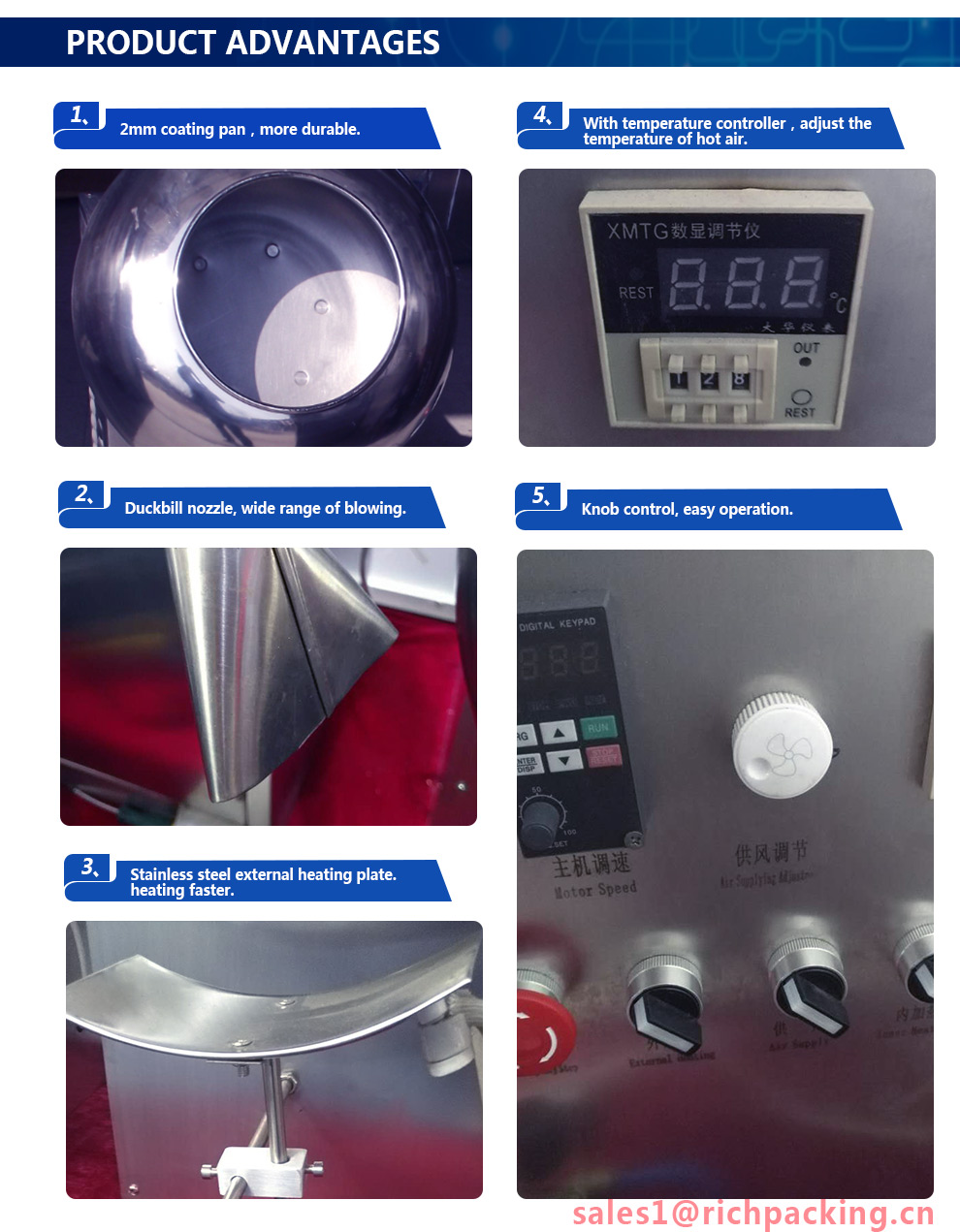

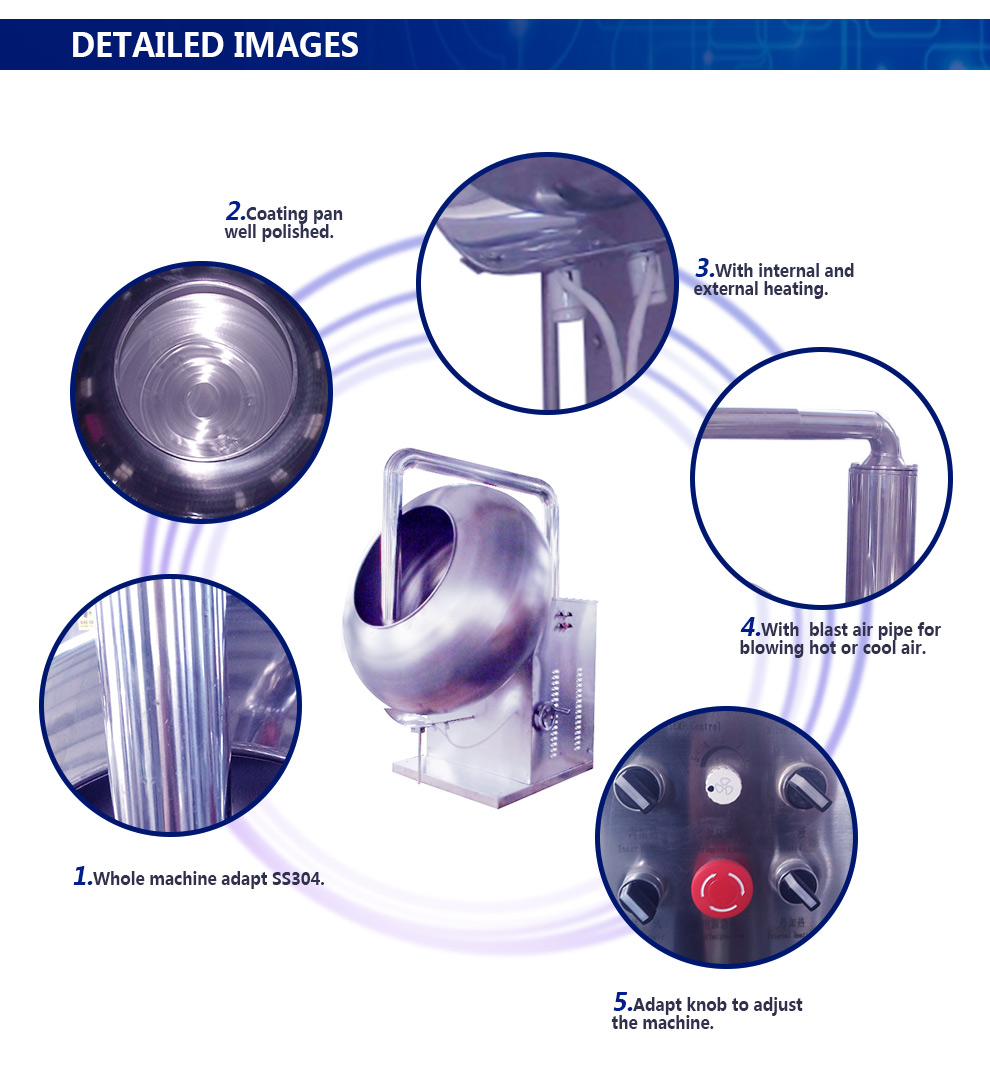

Main Features
1.This machine has advantages of simplified operation, easy maintenance and low cost.
2.It can place external heating plate under the pan for heating.
3.Equipped with the electric blower, the dust extends into the pan for heating or air blowing, the temperature has two levels for adjustment.
4.The material of coating pan can be stainless steel or copper.

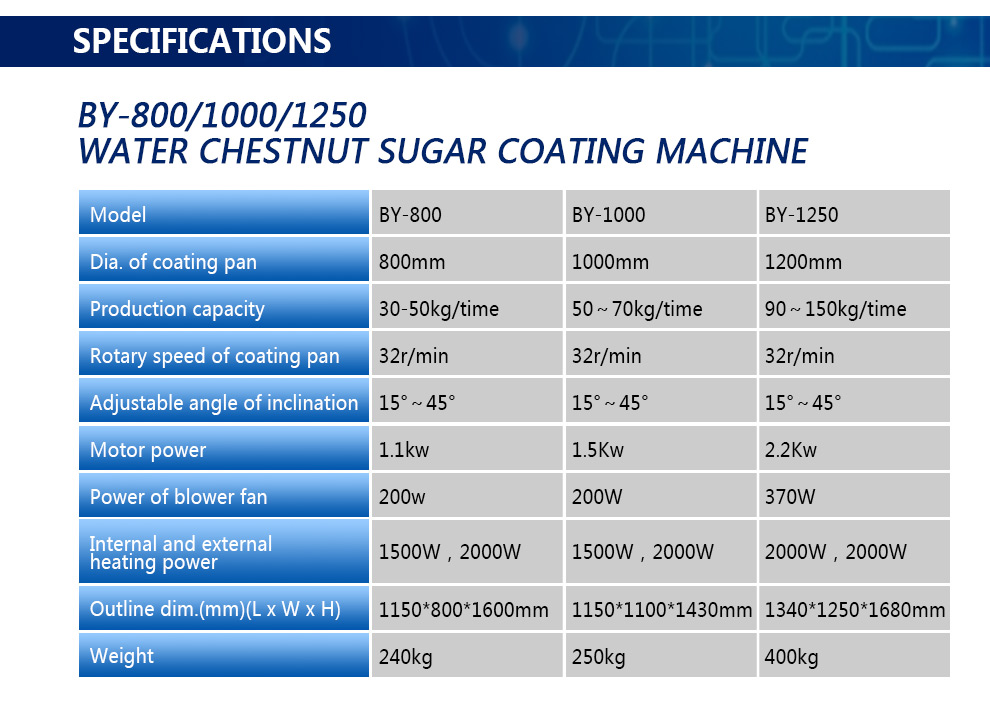

Main Technical Parameters

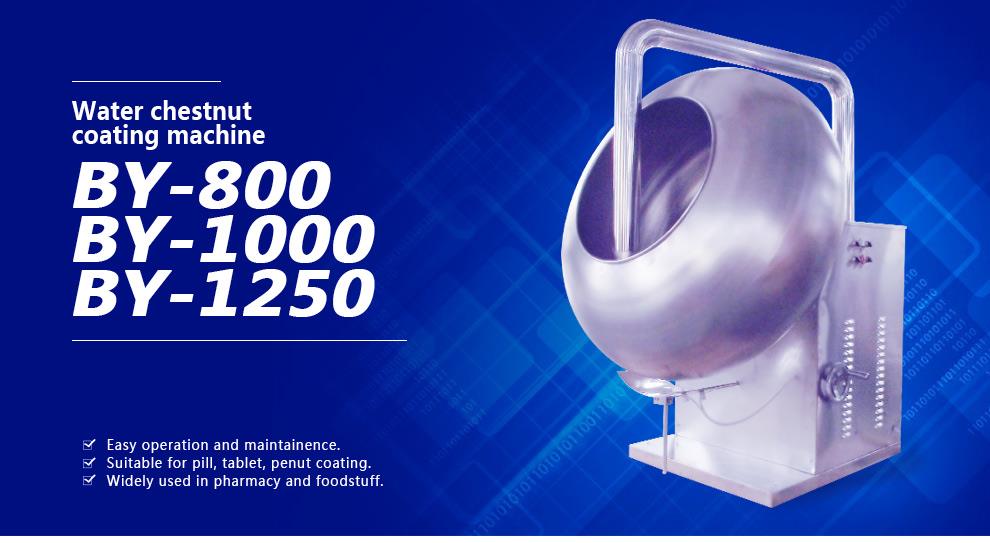

Model | BY-800 | BY-1000 | BY-1250 |
Coating pot diameter | 800mm | 1000mm | 1250mm |
Throughput | 30～50kg/time | 50～70kg/time | 90～150kg/time |
Speed of coating pan | 32r/min | 32r/min | 30r/min |
Adjustable dip angle | 15º～45º | ||
Internal and external heating power | 1500W，2000W | 1500W，2000W | 2000W，2000W |
Main motor power | 1.1kW | 1.5kW | 2.2kW |
Fan power | 200W | 200W | 370W |
Power Supply | 380V/50Hz | ||
Dimensions | 1150*800*1600mm | 1150*1100*1430mm | 1340*1250*1680mm |
Weight | 240kg | 250kg | 400kg |
