BYC-400 Water Chestnut Simplified Coating Machine
  • BYC-400 Water Chestnut Simplified Coating Machine
  • BYC-400 Water Chestnut Simplified Coating Machine
  • BYC-400 Water Chestnut Simplified Coating Machine
  • BYC-400 Water Chestnut Simplified Coating Machine
  • PRODUCT DESCRIPTION
    • PRODUCT NAME:BYC-400 Water Chestnut Simplified Coating Machine
    • VIDEO CONNECTION:
    • INTRODUCTION:

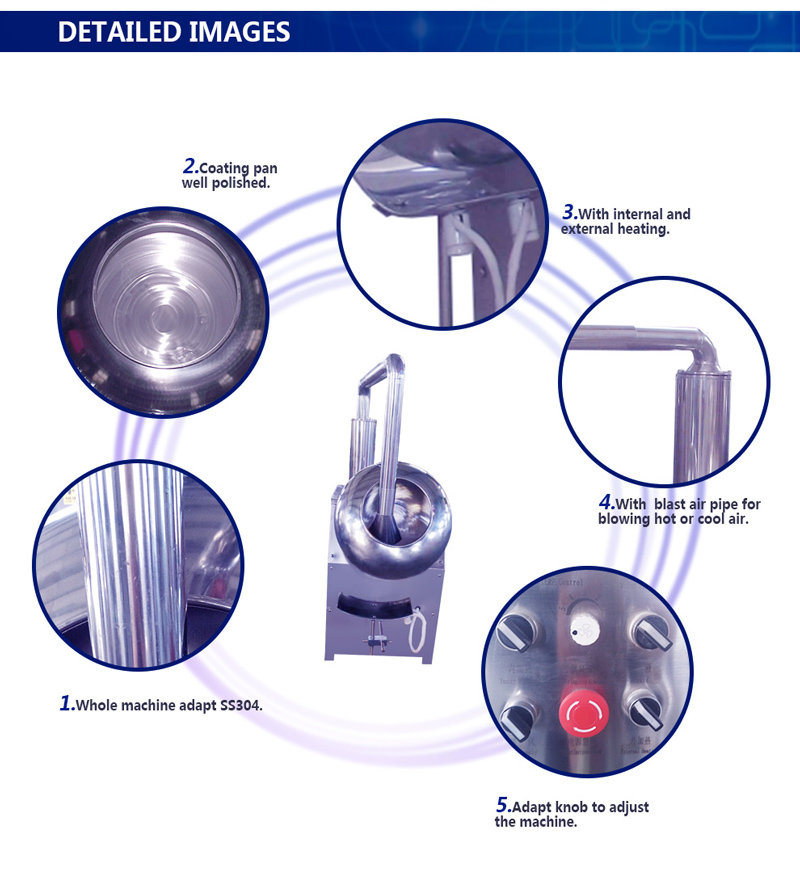

      This machine is used to carry out sugarcoating and film coating to the core of Chinese Traditional and Western Medicine tablets; it integrates strong power, weak power, hydraulic and pneumatic. It is a new type equipment improved on the basis of original common type sugarcoating machine.It composed of the mainframe (original sugarcoating machine), controllable normal temperature hot air system, automatic fluid supply and air supply spraying system, etc.
  • Details


  • Introduction
    This machine is used to carry out sugarcoating and film coating to the core of Chinese Traditional and Western Medicine tablets; it integrates strong power, weak power, hydraulic and pneumatic. It is a new type equipment improved on the basis of original common type sugarcoating machine.It composed of the mainframe (original sugarcoating machine), controllable normal temperature hot air system, automatic fluid supply and air supply spraying system, etc.

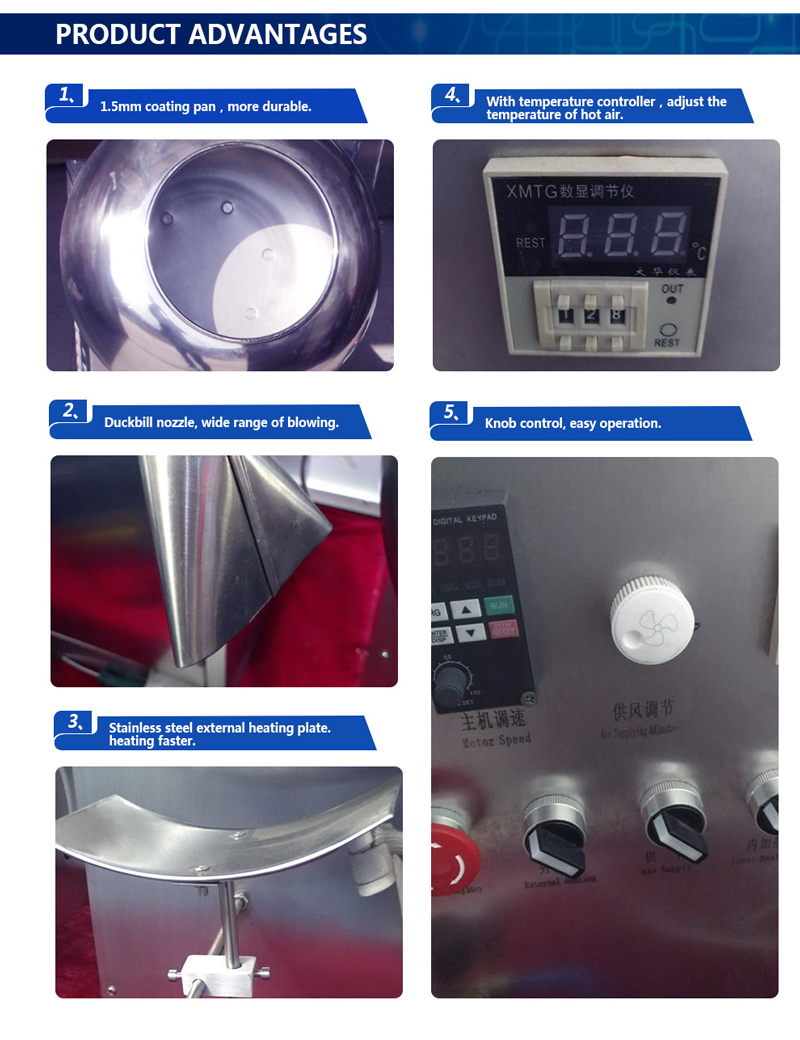

    Main Features

    1.The speed can be controlled, the coating accessories using high atomization spray to tablets surface by the method of automatic electrical control.

    2.The tablets make continuous and complex track movement in the coating pan, let the coating fluid cover the tablet core evenly, the controllable normal-temperature hot air in the pan will dry the tablets at the same time, let the tablet rapidly form a firm, fine, complete and smooth surface film.



    Main Technical Parameters



    Model

    BYC-400

    Throughput

    2~5kg/time

    Pot body inclination

    42°

    Motor power

    0.55kW

    Fan power

    60W

    Liquid tank volume

    1L

    Spray gun

    RA-C1

    Speed

    0~46r/min

    Electric heating power

    1kW

    Power Supply

    220V/50Hz

    Dimensions

    800*800*1200mm

    Weight

    200kg
