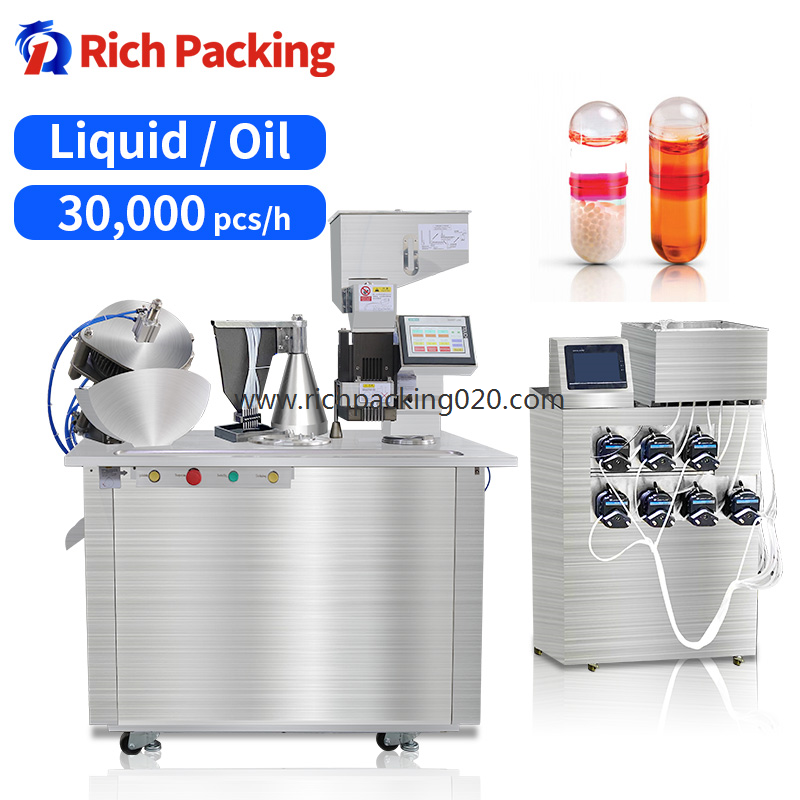

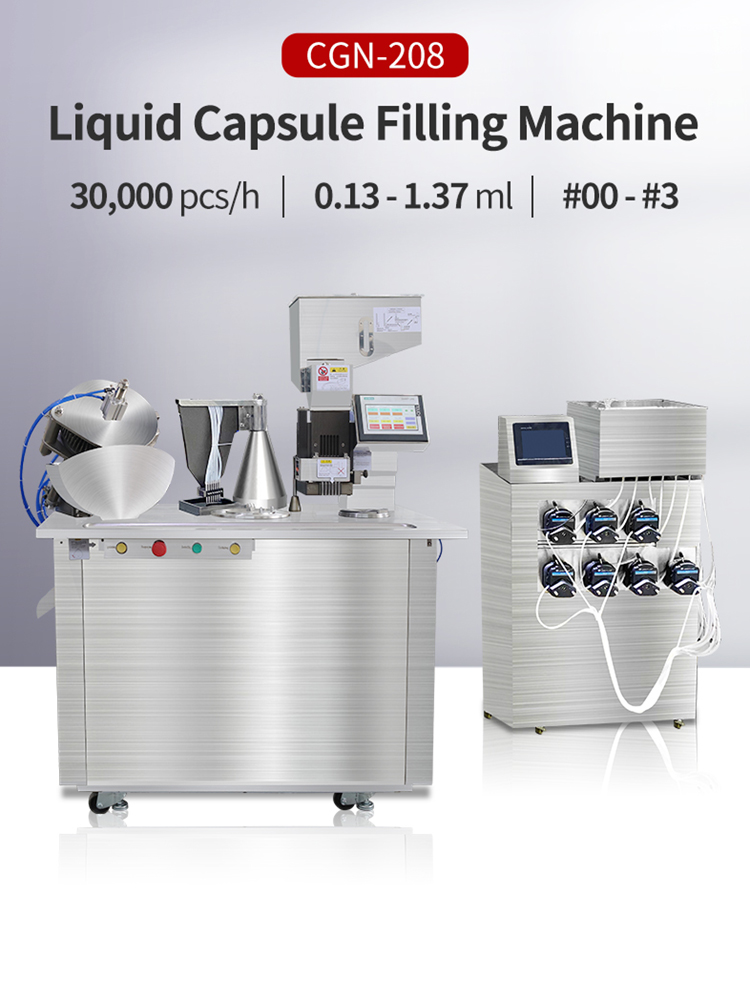

CGN 208D Semi Automatic Liquid Oil Empty Hard Capsule Filling Machine
Capacity of of liquid hard capsule filler | 15000-28500pcs/h |
suit for hard gel capsule size | 00#,0#,1#,2#,3# |
Power supply of liquid hard capsule filler | 2.12kw |
Power of liquid hard capsule filler | 380V/50Hz |

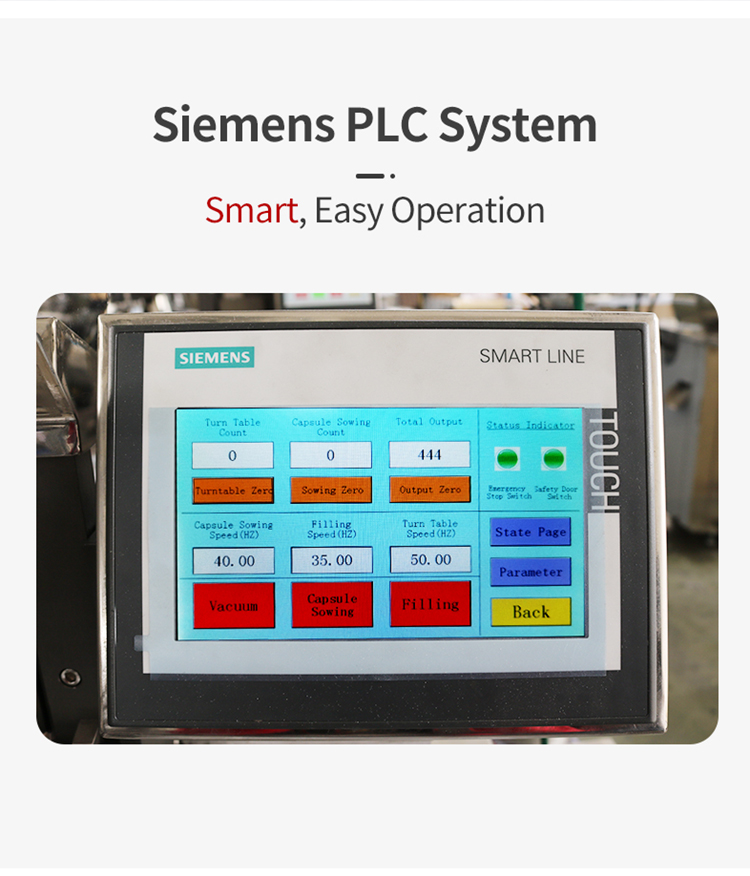

PLC of semi auto liquid hard capsule filler | Germany Siemens |
Outline dim. of cgnt 208 gel cap filler | 1300*800*1750mm |
Net weight of of liquid hard capsule filler | 420kg |
Gross weight of liquid hard capsule filler | 520 kg |
Packing size of liquid hard capsule filler | 1640*720*1720mm |
The new cgn208 semi-automatic capsule filling machine developed by Guangdong Richpacking is suitable for filling liquid oil with the size of No. 5-00 hard capsule. This newly improved semi-automatic liquid capsule filling machine cgn208 abandons the previous vertical mode and improves the locking station to be in a flat position, so that the whole machine is in a good and stable state without powder leakage.

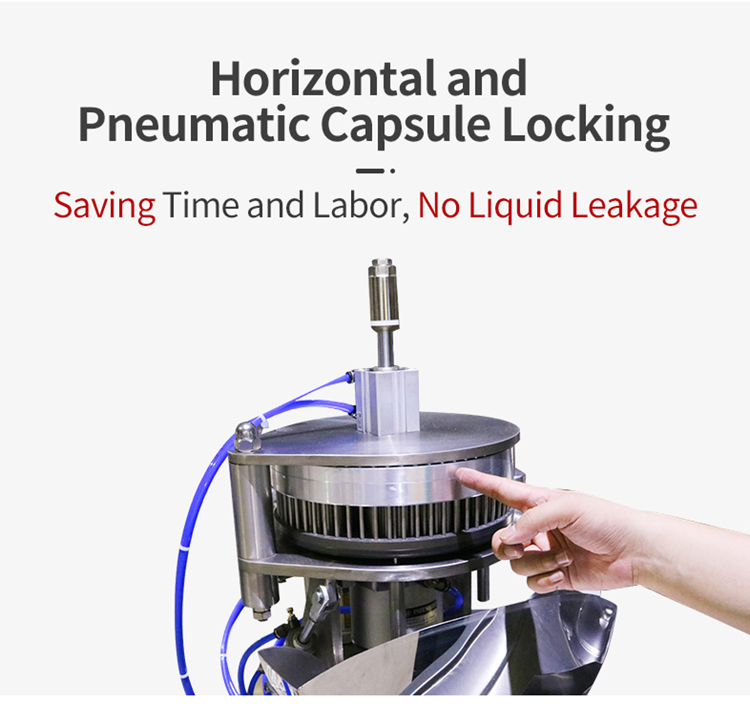

The capsule locking station of the semi-automatic capsule filling machine adopts horizontal and flat locking. Its principle is to use the cylinder to start the capsule body and capsule cap locking. The product quality of the 208 model of the liquid semi-automatic capsule filling machine is guaranteed. Because the machine is placed horizontally, the semi-automatic liquid capsule filling machine can ensure that there is no liquid leakage and vibration during the capsule locking process, and also improve the utilization efficiency of raw materials.
The liquid oil semi-automatic capsule machine uses integrated toggle joint control and variable frequency speed regulation, and each station of the machine can be connected orderly. Therefore, it also improves the production speed. The semi-automatic liquid capsule machine cgn208, which meets the requirements of GMP production, can not only save human and material resources, but also reduce the labor intensity of employees.
