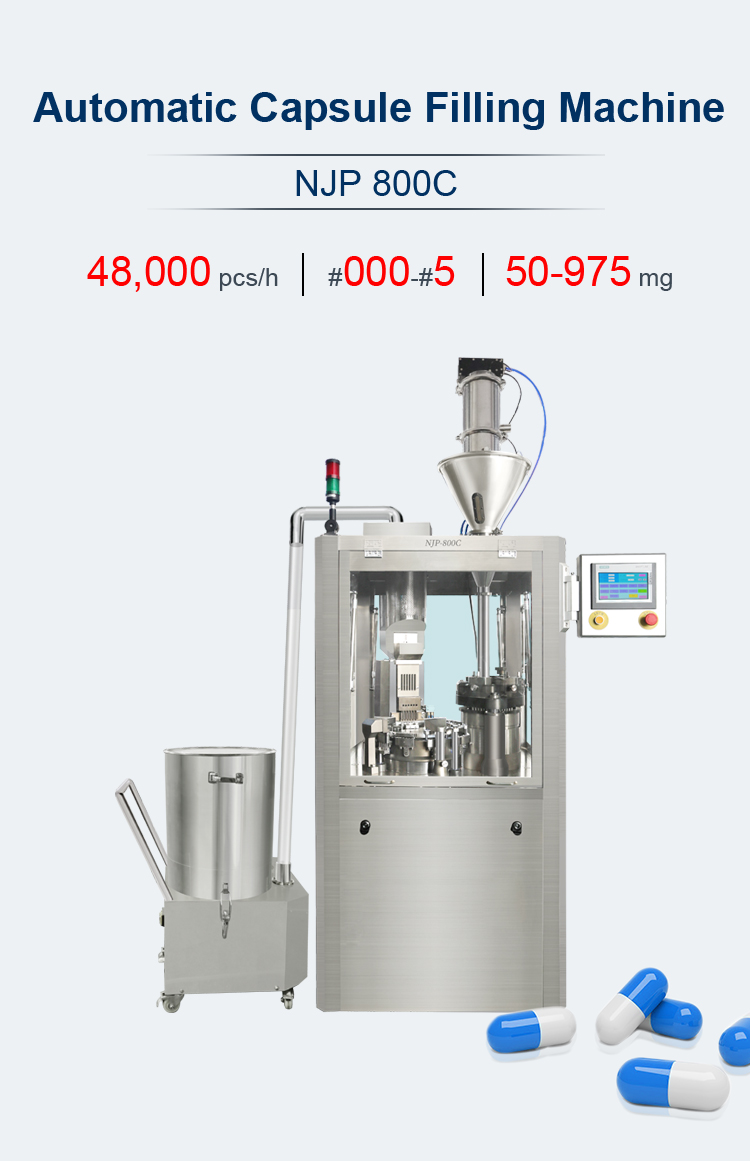

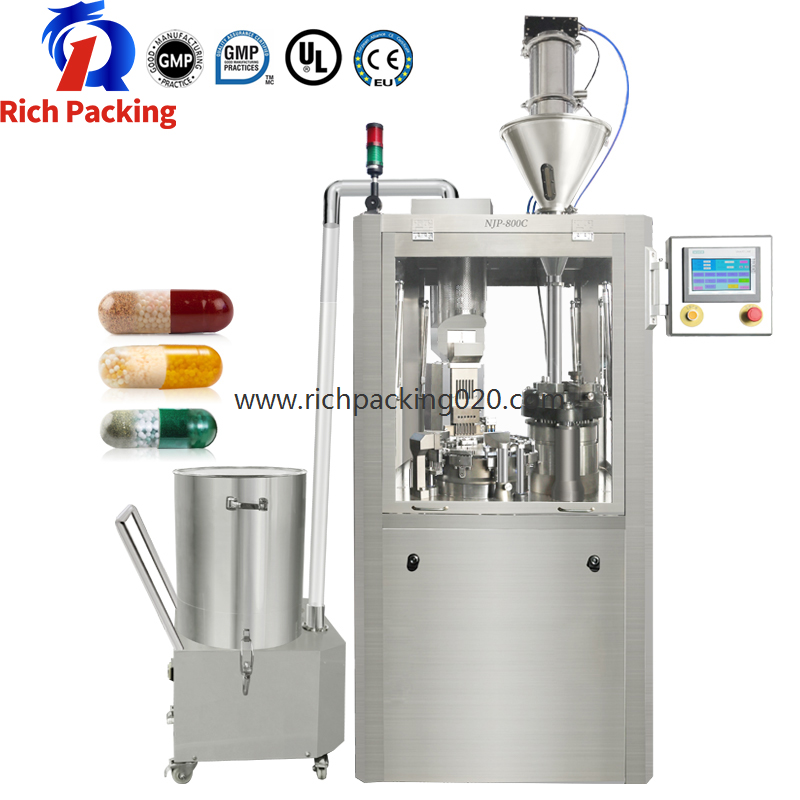

Njp 800c Automatic Powder Pellet Hard Gel Capsule Filling Machine
capacity of njp 800c capsule machine | Max. 48000 pcs/h |
Net weight of njp 800c capsule fill machine | 900Kg |
size of njp 800c capsule fill machine | 1100×900×2050(mm) |
power supply of njp 800c capsule fill machine | 380/220V 50Hz or customized |
Total power of njp 800c capsule fill machine | 5KW |
No.of segment bores | 6 |
Vacuum of njp 800c capsule fill machine | 20m3/h-0.04-0.08Mpa |
Dust collector of njp 800c capsule fill machine | 17.6Kpa 180m3/h |
Noise of njp 800c capsule fill machine | <75DB(A) |
Making rate of njp 800c capsule fill machine | Empty capsule 99.99% Full capsule 99.89% |
Applicable capsule | 000,00,0,1,2,3,4,5# |
Filling error of njp 800c capsule fill machine | Western medicine:±3% Chinese medicine:±4% |
Applicable product | Power、granule、pellet、tablet |
More details welcome to our alibaba web to view:https://richpacking.en.alibaba.com
1.Safety first, set up access control and emergency stop switches to protect the safety of workers and machines

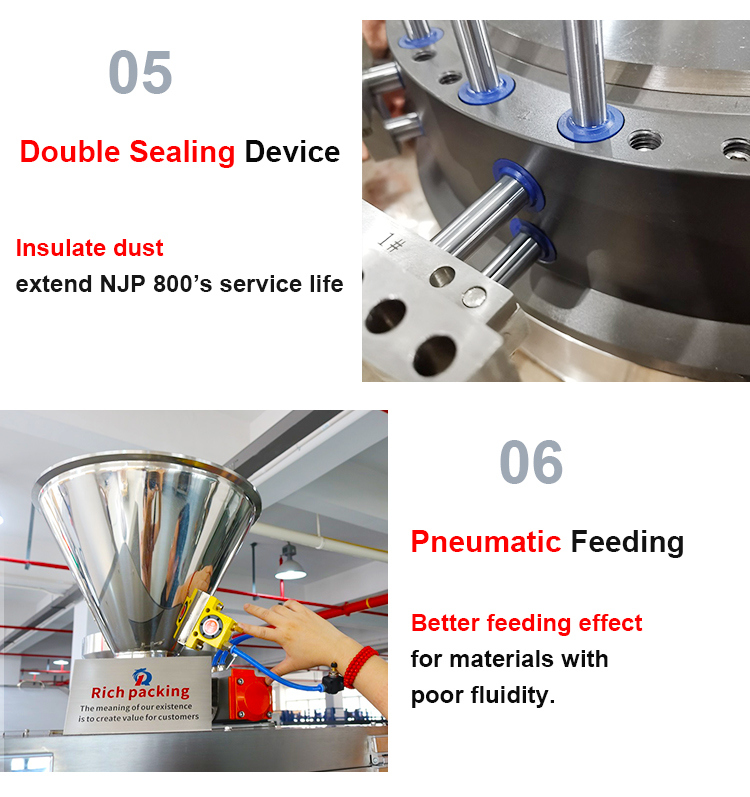

2.It adopts a new patented rotating design, and the sealing ring uses imported SIL silicone rubber to prevent dust from entering the internal turntable, protecting the machine, with good sealing performance, and no dust spilling pollution; the horizontal double shaft adapts to PTFE oil-free bearings, no need to add oil
3.The material filling rod, the upper and lower die holes, and the measuring plate are treated with non-polar electronic polishing, which improves the fluidity of the material and solves the problem of sticky and sticky materials blocking the mold. (According to material properties and customer's special requirements, we can provide Teflon coating processing services)
