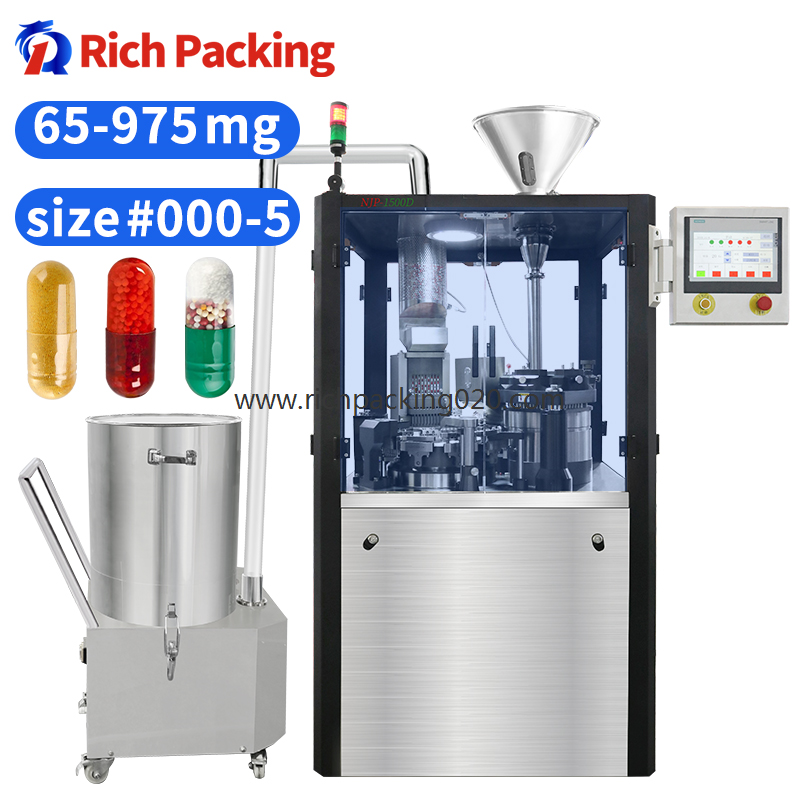

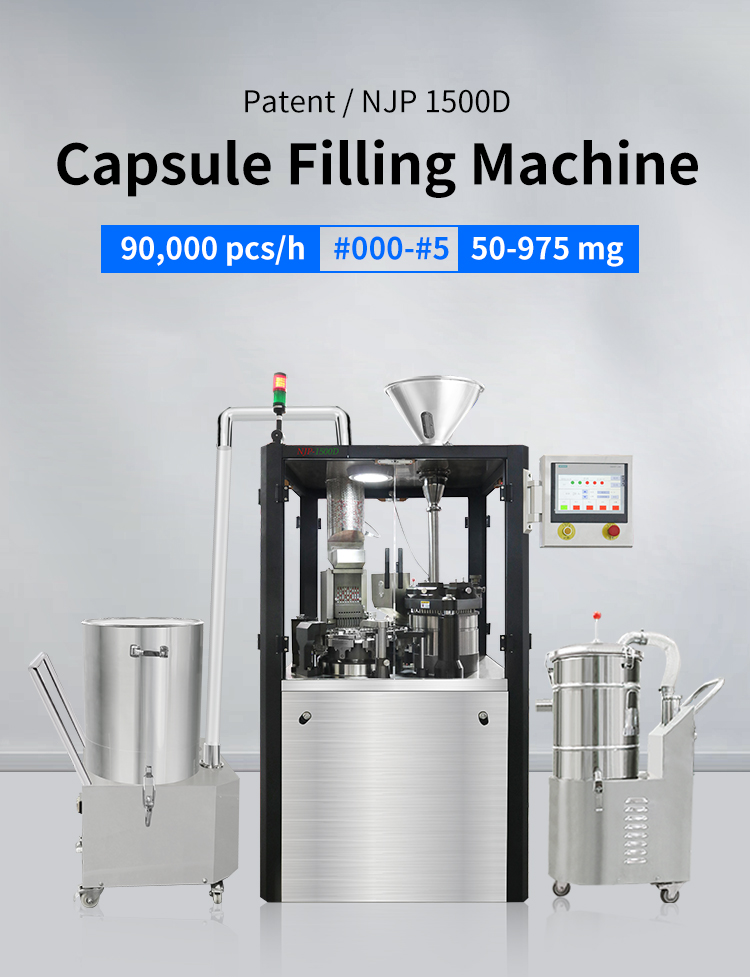

Njp-1500d Automatic Pharmaceutical Capsule Filling Machine
Production capacity | 90000 pcs/h |
Net weight of capsule filling machine | 1150Kg |
Overall size of capsule filling machine | 1200×1000×2150mm |
Power of capsule filling machine | 380/220V 50Hz |
Total power capsule filling machine | 5.5KW |
No.of segment bores | 9 |
Vacuum of capsule filling machine | 40m3/h-0.04-0.09Mpa |
Dust collector of capsule filling machine | 24.5Kpa 210m3/h |
Noise | <75DB(A) |
Making rate | Empty capsule 99.95% Full capsule 99.8% |

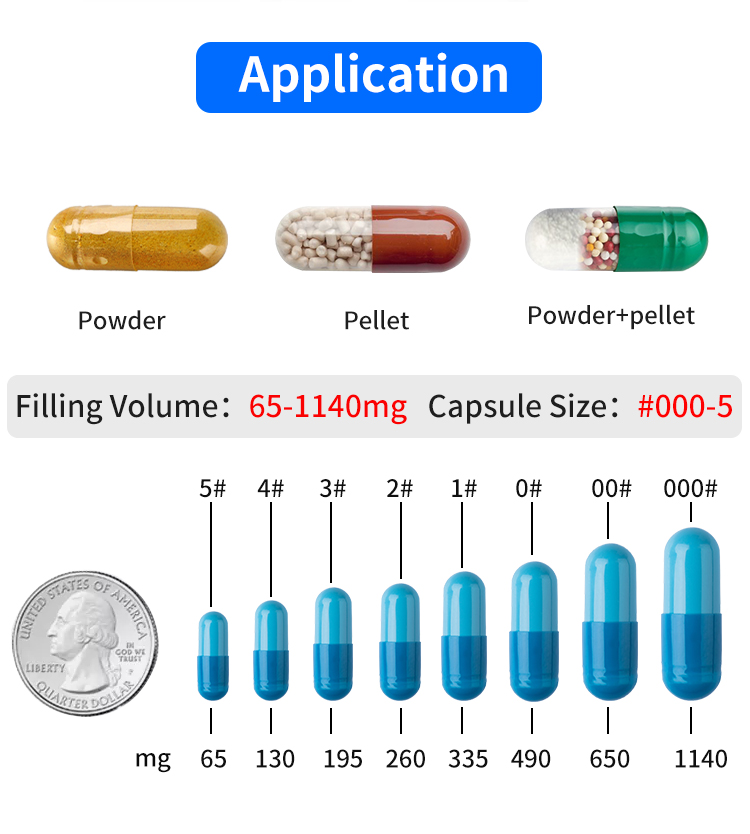

Applicable capsule | 000#，00#,0#,1#,2#,3#,4#,5# |
Filling error | Western medicine:±3% Chinese medicine:±4% |
Applicable product | Power、granule、pellet、tablet |
Packing size | 1490×1260×2160mm |
The full-automatic hard capsule filling machine is a new generation of pharmaceutical hard capsule filling machine developed and developed by our factory. This model has a patented turntable and patented filling mechanism. The loading accuracy error of the automatic capsule filling machine is ≤ 3%. The pharmaceutical automatic capsule filling machine can accurately fill the capsules of various specifications and models. The full-automatic pharmaceutical capsule filling machine is oil-free, bearing free, pollution-free and maintenance free. The full-automatic capsule filling machine fully meets the GMP production requirements.

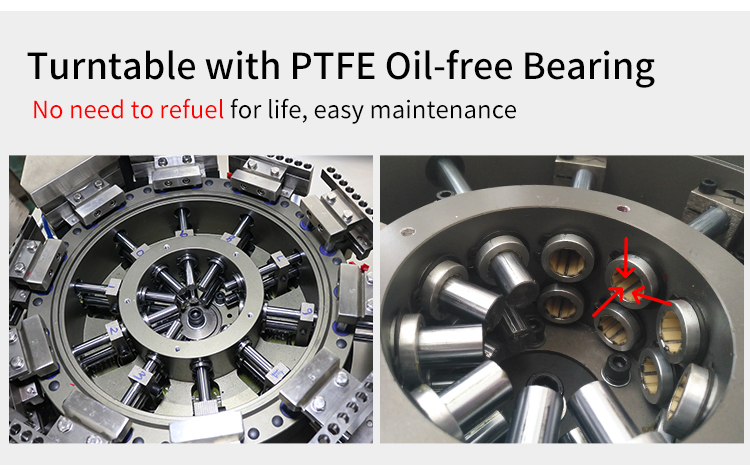

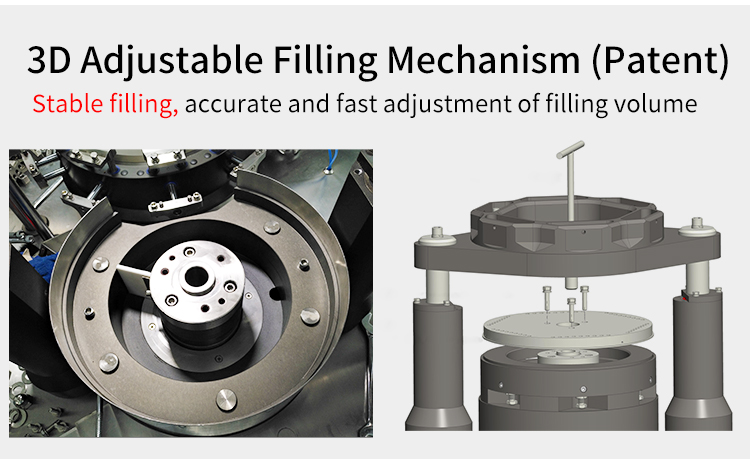

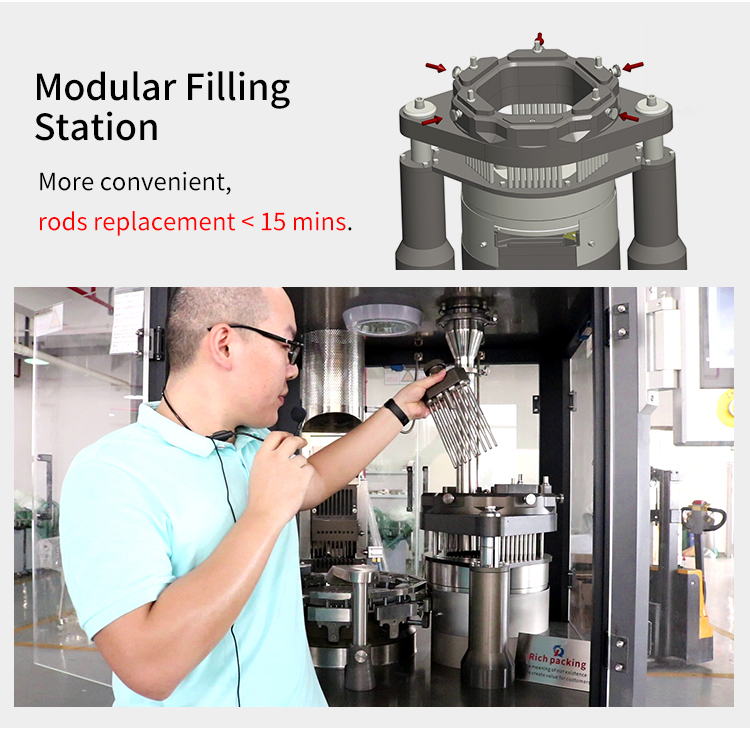

The filling mechanism and turntable of the pharmaceutical automatic capsule machine have obtained the national utility model patent. The filling mechanism adopts the three-dimensional adjustment technology, so that the measuring disc is stressed evenly, and the adjustment loading is accurate and fast. The special powder recovery device is added, and the recovery and utilization rate of powder particles reaches 100%, which improves the economic benefits of many customers.

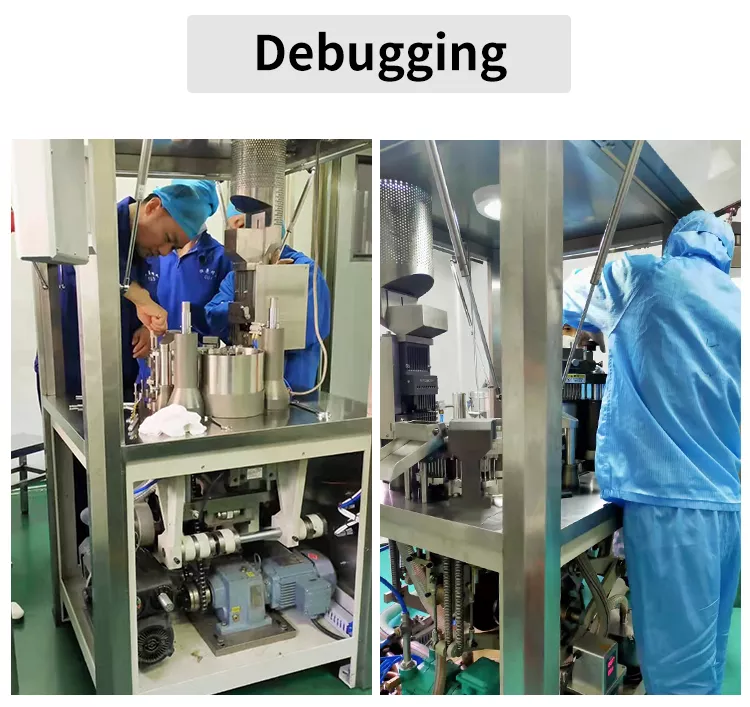

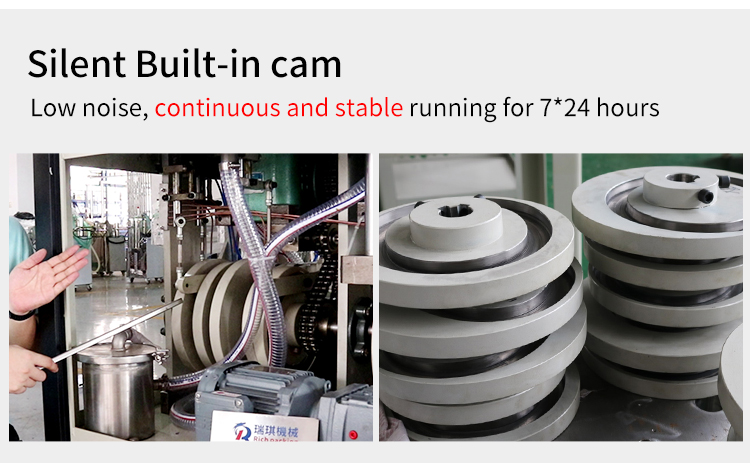

The inner groove cam of the automatic capsule filling machine of the pharmaceutical factory is formed in the CNC machining center at one time, without assembly, split, clearance and leak, and is more stable. The inner groove cam has no noise when driving in high-speed production. The full-automatic powder particle pellet hard capsule filling machine can be installed, debugged and trained by engineers, with a 3-year warranty; Lifetime maintenance.
