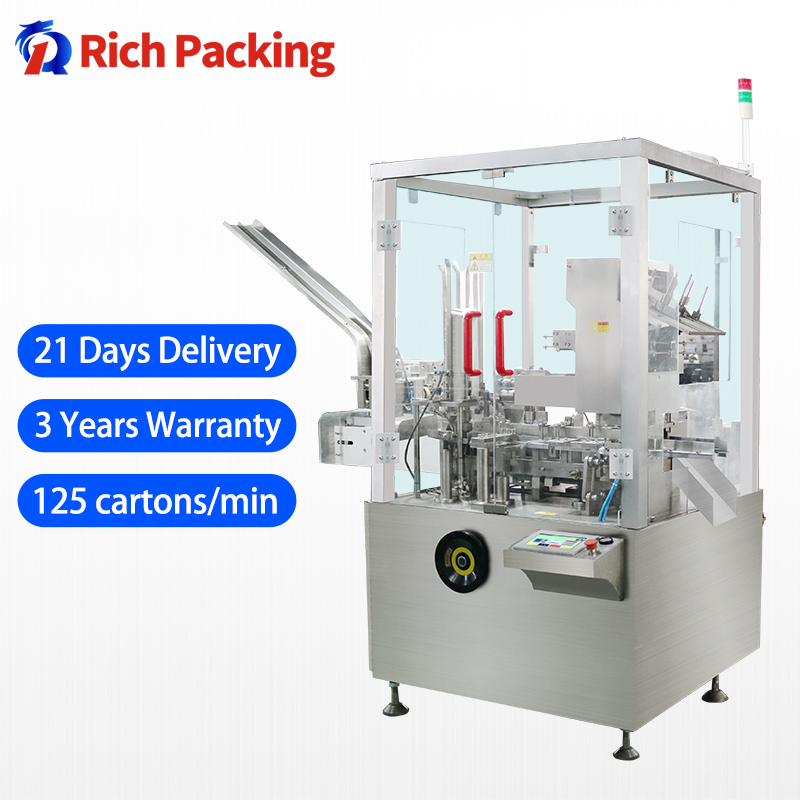

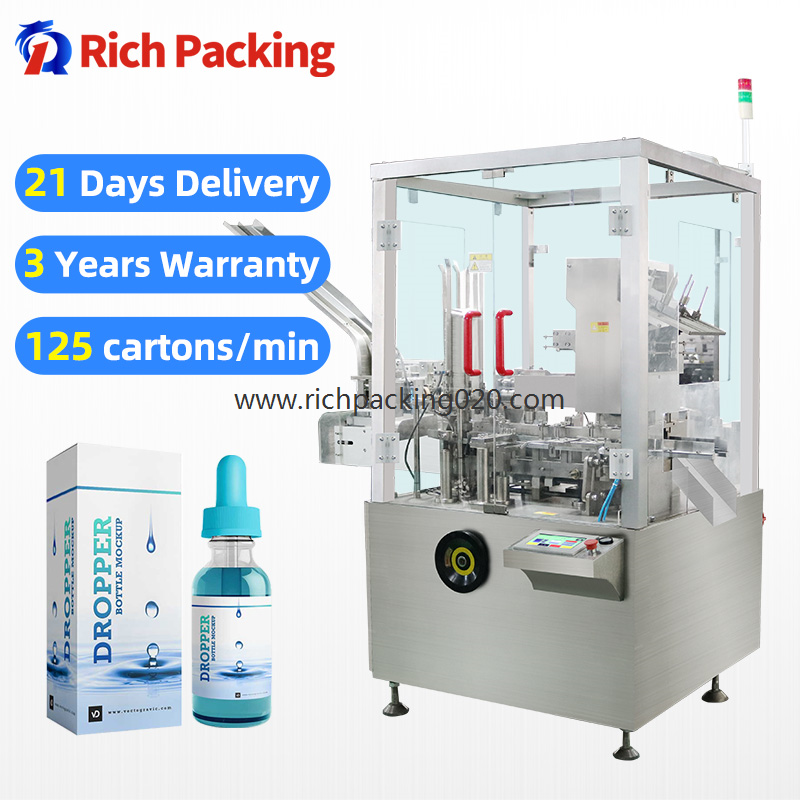

Automatic Vertical Cartoning Machine
  • Automatic Vertical Cartoning Machine
  • Automatic Vertical Cartoning Machine
  • Automatic Vertical Cartoning Machine
  • Automatic Vertical Cartoning Machine
  • PRODUCT DESCRIPTION
    • PRODUCT NAME:Automatic Vertical Cartoning Machine
    • VIDEO CONNECTION:
    • INTRODUCTION:
      This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electronic-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
  • Details
  • Introduction

    This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electronic-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

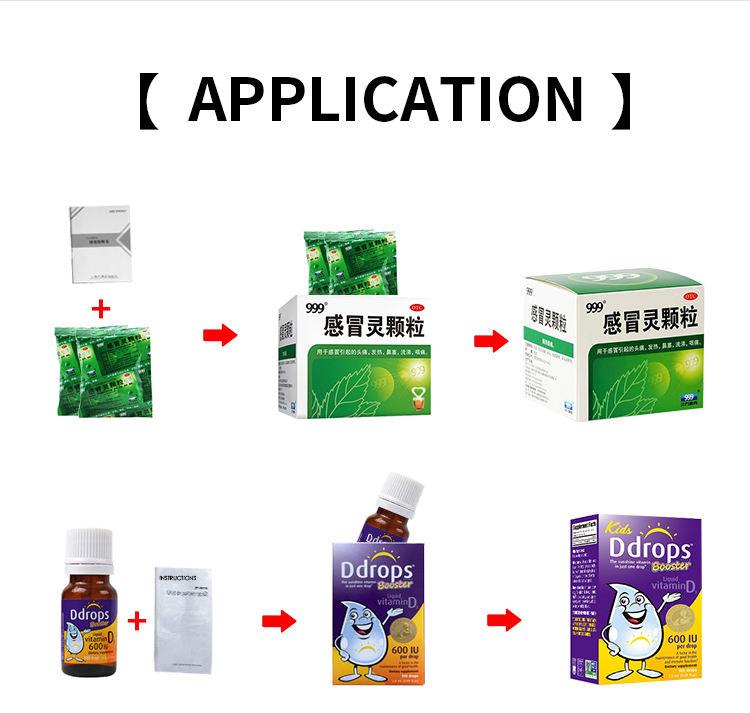

    This machine is suitable for cardboard case packaging of toothpaste, ointment and soft packaging (packed condoms). It consists of direction folding (1-4 folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.

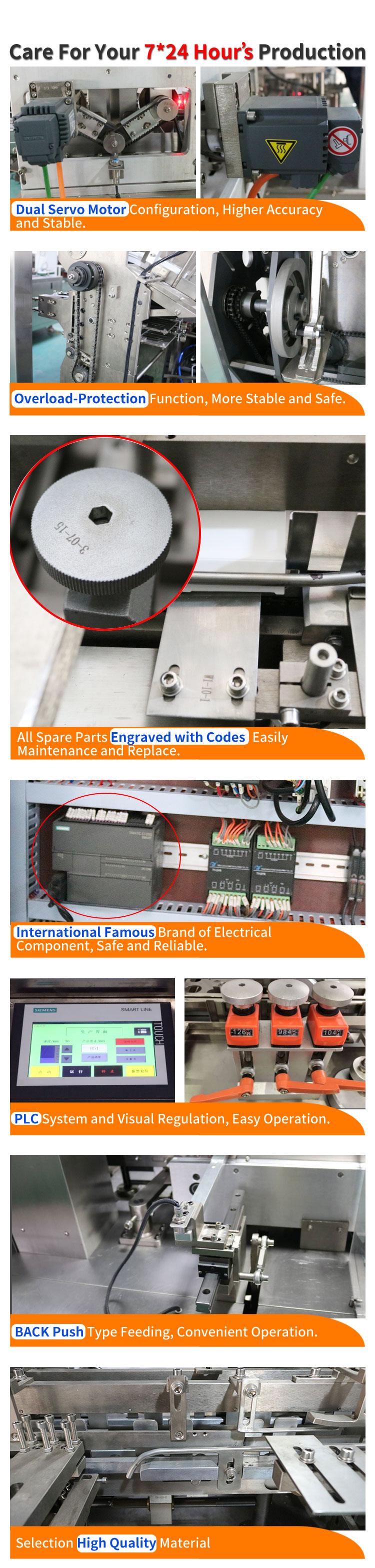

    Main Features

    1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

    2. Adopt human-machine operation system.

    3. Automatically stop when machine is overload.

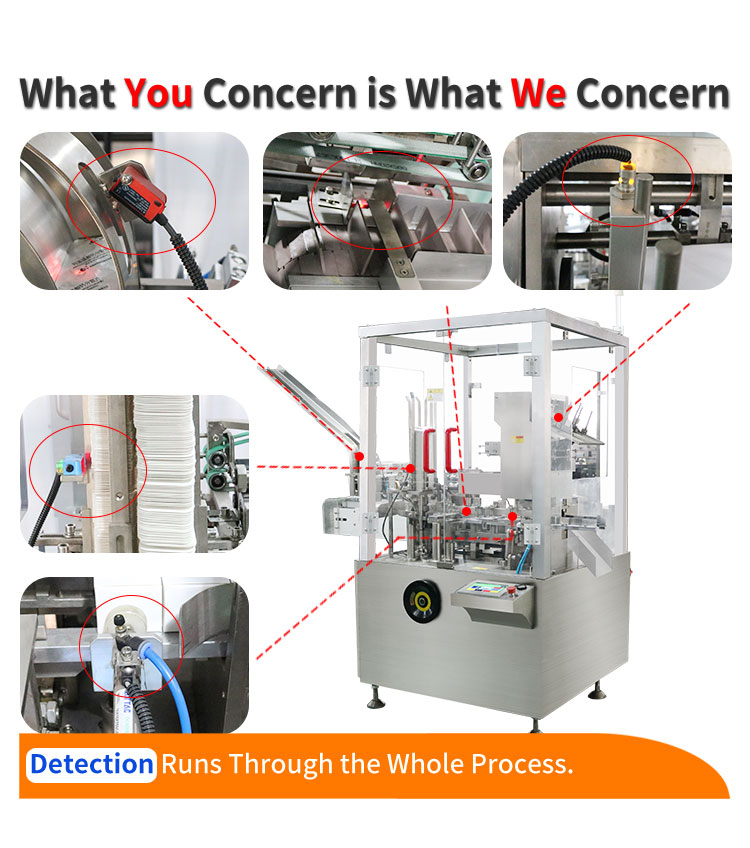

    4. Automatically reject lacking of package product and leaflet.

    5. Automatically display trouble, alarm and count finished products.

    6. Stable performance, operation is easy.



    Main Technical Parameters



    Item

    Parameters

    Encasing Speed

    30-120(boxes/min)

    Box

    Quality Requirement

    250-350g/m²Base on the size of carton.

    Dimension Range(L×W×H)

    (65-125)mm×(30-85)mm×(15-50)mm

    Leaflet

    Quality Requirement

    60-70g/m²

    Unfolded Leaflet Specification

    (L×W)(80-250)mm×(90-170)mm

    Fold Range(L×W)

    (1-4)(Fold)

    Compressed Air

    Working Pressure

    ≥0.6mpa

    Air Consumption

    120-160L/min

    Power Supply

    220V 50HZ

    Motor Power

    0.75kw

    (L×W×H) Dimension of Machine

    2300mm×1140mm×1800mm

     Weight

    1200kg
