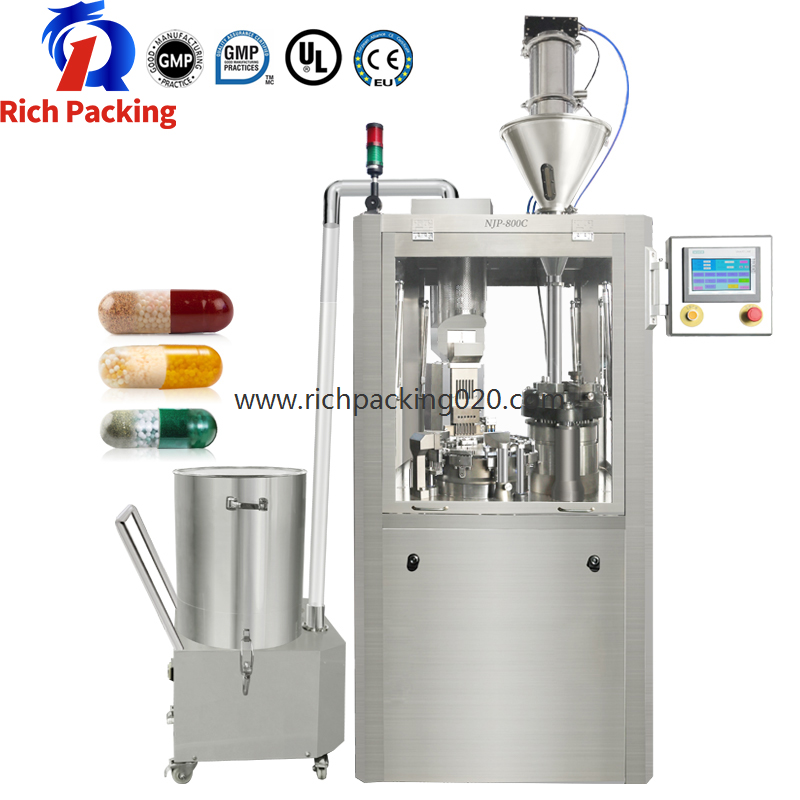

INTRODUCTION Of Smart Capsule Filling Machine NJP-800C
This type of capsule filling machine NJP-800C can be available for various sorts of capsule filling as long as the capsules are empty and the filling things are powder or granules. All sizes of capsules can be freely chose by people at any time and the whole running process of capsule filling is fully automatic without any full-day supervision of people. This kind of machine has all kinds of advantages including extremely precise loading of filling, extremely stable running system and zero dust can be seen.
FEATURES Of Smart Capsule Filling Machine NJP-800C
1、This capsule filling machine adopts a latest pneumatic feeding method to ensure the extremely excellent effect of capsule filling and even the poor fluidity materials can be easily dealt with.
2、This capsule filling machine is perfect in its application of pull-out slot design on filling rod holder and various filling rods can be replaced by people without any difficulty.
3、 Capsule filling machine is scientifically reasonable in its design as well as modular structure and it is straightforward to operate and it is extremely low in its fault rate.
4、Capsule filling machine is absolutely safe like all the operating stations including the emergency stop switch and the door control because its absolute safety concept throughout the whole design.
5、Capsule filling machine is extremely excellent in its loading precision and it is extremely low in its mistake rate of less than or tantamount to 3%.
6、Capsule filling machine can smoothly prevent any powder into the inside turntable and it has extremely excellent performance in sealing of capsule and it has zero dust overflow pollution.
Production capacity | 48000 pcs/h |
Net weight of machine | 900Kg |
Overall size of machine | 1100×900×2050(mm) |
Power | 380/220V 50Hz |
Total power | 5KW |
No.of segment bores | 6 |
Vacuum | 20m3/h-0.04-0.08Mpa |
Dust collector | 17.6Kpa 180m3/h |
Noise | <75DB(A) |
Making rate | Empty capsule 99.9% Full capsule 99.8% |
Applicable capsule | 000,00,0,1,2,3,4,5# |
Filling error | Western medicine:±3% Chinese medicine:±4% |
Applicable product | Power、granule、pellet、tablet |
