Working principle of bottle unscrambler

Working principle of bottle unscrambler

The working principle of the automatic bottle unscrambler is to manually add materials to the bottle storage box for storage. The materials in the bottle storage box will be automatically fed into the turntable at a fixed amount and a set speed. The turntable will supply bottles according to the needs of rotation, the drum will remove non-standard bottles, and the bottle sorting section will send the bottles supplied by the turntable to the bottle sorting section at a fixed speed. The bottle sorting section clamps the bottles on both sides of the conveyor belt and conveys them to the working surface of the conveyor belt. At the same time, bottles are classified by different bottle flippers.

It can be said that, on the one hand, due to the improvement of the automation of the bottle unscrambler itself, the automatic bottle unscrambler has significantly improved the bottle sorting effect. On the other hand, the fully automatic bottle separating machine does not need manual operation, which reduces the trouble of various semi-automatic processes, naturally ensures good production efficiency and prepares for the next filling process.

It is worth noting that standardized and reasonable operation is an important basis for the full-automatic bottle sorting machine to play its role. Therefore, for operators, they should not only see the actual characteristics of the bottle sorter, but also understand the relevant safety standards on the basis of ensuring good operation.

At the same time, improving the correct understanding of standardized operation is also an important prerequisite to ensure more effective application of the machine. Therefore, the use of the new generation of automatic bottle splitting machine must have the basic guarantee of standardized operation.

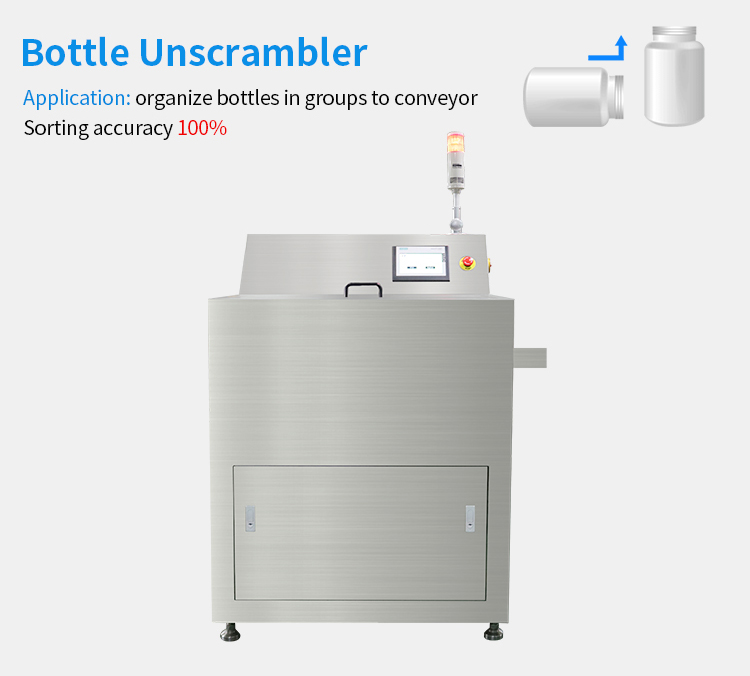

The full-automatic bottle unscrambler can automatically complete the processes of bottle conveying, bottle splitting, turning and bottle discharging. The machine is made of stainless steel or non-toxic and non polluting engineering plastics. Mechanical transmission technology is adopted. It can be applied to various bottle types with simple adjustment. It has the advantages of high automation, time and labor saving. This machine is the main machine of the production line. The application field of this machine is constantly expanding, covering medicine, beverage, daily chemical and other fields. Meet the demand of equipment quantity. The structure and characteristics of the bottle unscrambler are as follows:

1. Compact and reasonable structure, simple appearance and convenient operation;

2. High production efficiency, automatic continuous bottle feeding, bottle turning and bottle discharging;

3. Meet the requirements of automation, without manual bottle delivery;

4. The bottle rotation mechanism matches the length and shape of the bottle to ensure the continuous and rapid output of the bottle;

5. After passing through the conveying mechanism, turnover mechanism and bottle splitting mechanism, the bottle enters the next process in an upright, compact and orderly manner.
