How Does The Automatic Pill Counting Machine Work

How Does The Automatic Pill Counting Machine Work

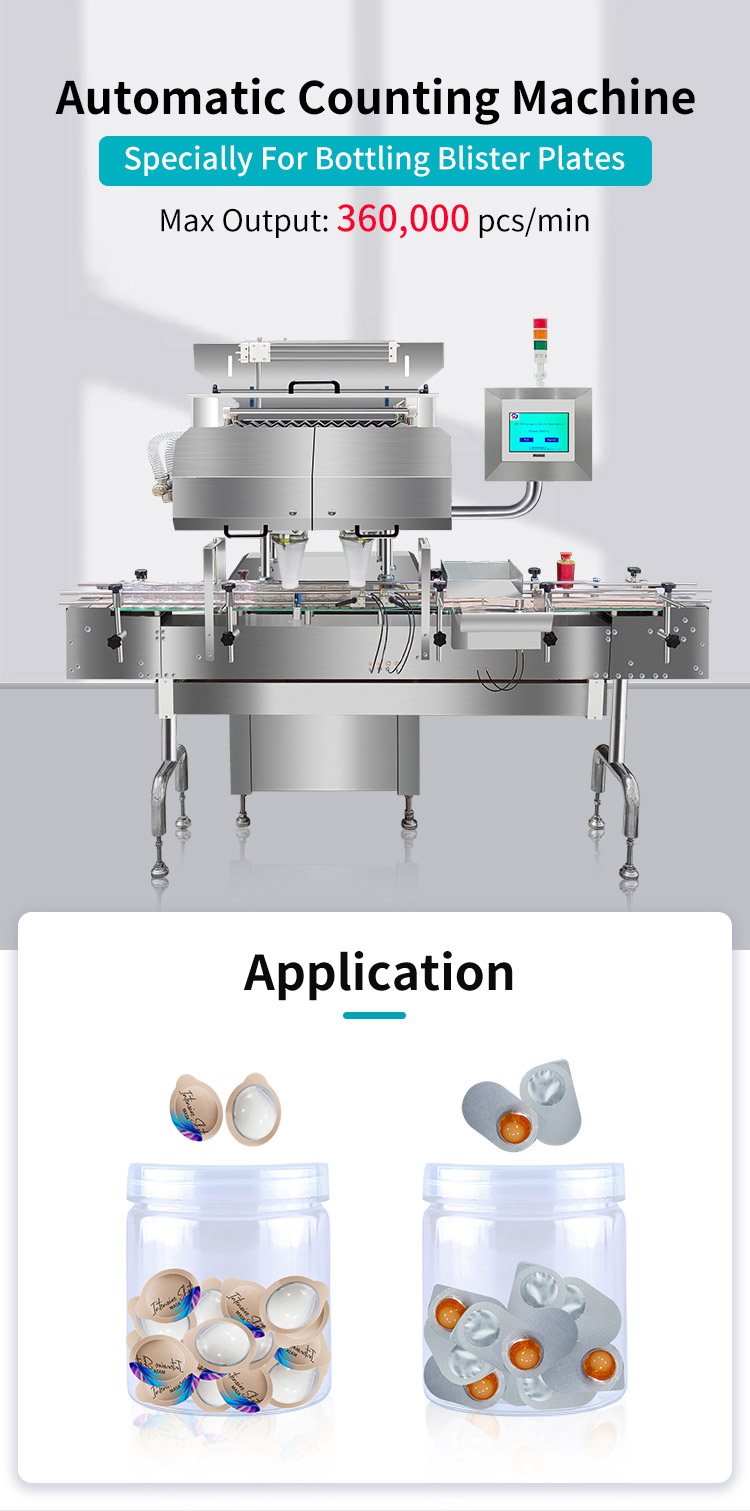

When working, pour the medicine particles into the top hopper of the counting machine, and adjust the primary, intermediate and final vibrating feeders appropriately so that the piled medicine particles in the hopper gradually slide down to the falling feed port. Then the grains fall to the detection channel of the counting machine one by one, and the principle of photoelectric effect is used to input the working signal generated by the infrared dynamic scanning sensor when the grains fall to the FPGA high-speed microprocessor, and the counting function is realized through the cooperation of the circuit and the program.

Structural features of automatic counting machine

1. Operating system:

Introduce mature high-speed electronic counting technology from foreign manufacturers, based on high-speed microprocessor technology and an operating system with full Chinese dynamic graphic display, parameters can be set or adjusted on the computer.

The counting machine has an automatic fault diagnosis and real-time monitoring and alarm display system, and can store multiple sets of parameters, which can be called directly when replacing products.

2. The feeding device of the counting machine (optional accessories):

The device is easy to operate, stable and reliable, easy to disassemble and assemble, and safe to use;

The material barrel is made of SS 316L stainless steel, which is sealed to transport materials, with less dust pollution and conforms to GMP;

The lifting weight range is wide, and the performance has reached the level of similar foreign products;

It can reduce the labor intensity of workers and improve work efficiency.

3. Grain feeding mechanism of the counting machine:

It adopts three-stage vibrating plate electromagnetic oscillation, the vibration frequency is adjustable, and the speed is fast, so as to ensure the fast separation speed of medicine particles;

The DC vibrator is adopted, and the vibration is stable, which can make the medicine grains, especially the irregular tablets, run smoothly, and avoid miscounting grains;

The pellet sliding track of the counting machine adopts a three-layer ladder type, and the pellets go downstream layer by layer. The distance between the pellets will be set according to the program to avoid overlapping;

Three-stage dust suction design, the dust between the falling layers of the medicine particles is sucked clean by * to avoid pollution. (vacuum cleaner is optional)
