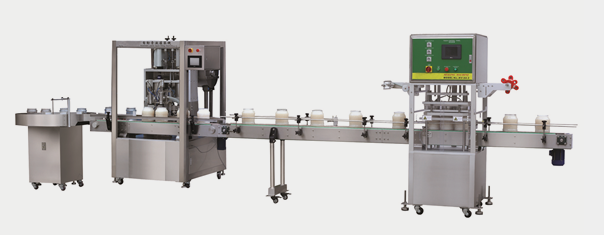

ketchup Bottle Packing Line

‍

ketchup Bottle Packing Line‍

This line is suitable for packing the ketchup into the tin bottle, the following machines that composite the whole line. However, it is only for reference. It can be changed according the customer’s products.

The process: Tin Bottle Unscrambler→Liquid Filling Machine→Automatic Sealing Machine→Automatic Screw Capping Machine→Automatic Labeling Machine

‍

Introduction‍

Automatic unscrambler, filling, transport, sealing... Etc.

‍

Main Features‍

Offer PP, PE, PET...etc that wide-mouth no cup lip container sealing solutions,   extremely suitable for front unscrambler, automatic filling and supplement filling, metering filling and posterior segment lock capping, labeling...etc full automatic production line operation.

Use internationally leading of barometric pressure sealing technology, a unique conveyor line heat sealing technology, conduct sealing, effective solution to the sealing of canned food and other production lines supporting technical problems; good sealing, convenient and flexible supporting facilities.

The automation control part adopts imported PLC and humane man-machine operation interface, the system is stable and reliable.

Transport and heat sealing film by micro-machine automatic control, no tedious steps and control interface; and every link can according needed on man-machine interface to conduct adjusted. The operation is simple, easy to understand.

PLC temperature system with have automatic temperature sensing detection and error alarm function, prevent low pressure to start the machine, improve machine reliability and stability.

Material contact parts are made of 316L stainless steel.

The mold is by made of aluminum alloy, through advanced surface of the anode of multi- channel process of crafts processing, it can resistant to the general food's corrosion, meet the food GMP standard.

Be according European "CE" safety technology system request to configure electronic control system, electric control box supporting waterproof groove

.

Host elec-control cabinet equipped with an emergency "stop protection button" to make the operation safer.

Configure transport security torque positioning tag system.

Installation disconnected automatic alarm shutdown device.

Total machine of all the switches, buttons and others electrical components have passed the European "CE" certification, reliable, stable...etc features.

‍

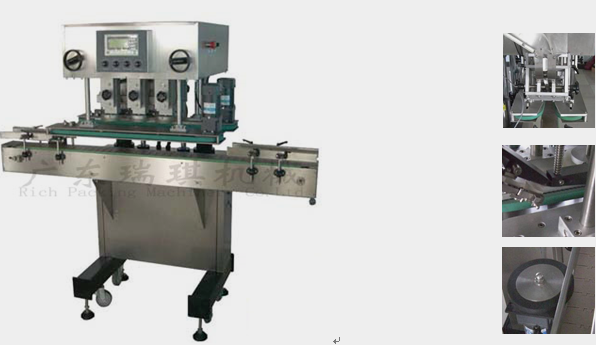

RP-XG-120H Automatic Capping Machine‍

‍

Introduction ‍

This machine is widely used in foodstuff, pharmaceutical, daily product for capping various specification of product.

‍

Main Features‍

1.Adopts touch screen control, it is easy for operation.

2.Bottle clip belt can be individually adjusted to fit different height and shaped of bottles for cap twisting.

3.Equipped with lifting motor, which can realize the main machine automatically lifting.

4.The contacted parts with bottle and cap adopt non-toxic belt and non-toxic capping wheel.

5.Automatically unscrambling cap, twisting cap, reduce labor force.

6.The machine shell are made of SS304, meeting the GMP requirements.

‍

Main Technical Parameters‍

As following the standard parameters, special requirements and functions can be customized.

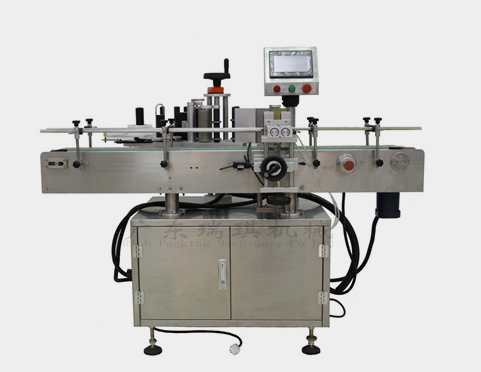

‍RF-YPTB-300S Vertical Round Bottle Labeling Machine‍

‍

Introduction ‍

This machine adopts advanced micro-computer PLC electric fiber optic sensor controllable system. Stable running and high speed. It can automatically send bottle, labeling and collect bottle once. It also with capacity counting function. Adopts computer fiber optic control and synchronization tracking. Sending label is controlled by servomotor, which can ensure the label sending speed synchronize with the bottle rolling speed. “Touch screen” realize the parameters adjustable and visualization, which is convenient for the operators adjusting and determine the parameter at any time. With beauty and firm labeling, and high production capacity. Good and reliable performance, achieve electromechanical integration. The operation interface is simple, practical and efficient; Attached wheel roll labeling makes labels much firm; With wide range of applicable bottles.

‍

Main Features‍

Fully automatic design, set parameters through computer, without labor during labeling process, which improves the labeling efficiency;

International advanced touch screen, intuitive and simple, easy to operate;

With wide range of applicable bottles. It can be used for labeling round bottles in foodstuff, pharmaceutical, daily necessities and chemical industry. Realize mass labeling production;

Adopts electromechanical integration, advanced photoelectric control device;

Production capacity adopts stepless adjustment in accordance with the specifications and characteristics of the bottles and labels;

It can randomly set quantity of labels, automatically counting, production capacity counting.

The machine is made of SS304 and aluminum alloy material, with beautiful appearance and user-friendly design;

Unscrambler optional.

‍

Main Technical Parameters‍
