Menthol Candy Packing Line（Tin box)

Menthol Candy Packing Line（Tin box)

This line is suitable for packing the menthol candy into the tin box, the following machines that composite the whole line. However, it is only for reference. It can be changed according the customer’s products.

The process: Tin Box Unscrambler→Electric Counting Machine→Automatic Capping Machine→Automatic Surface Labeling Machine→Cartoning Machine

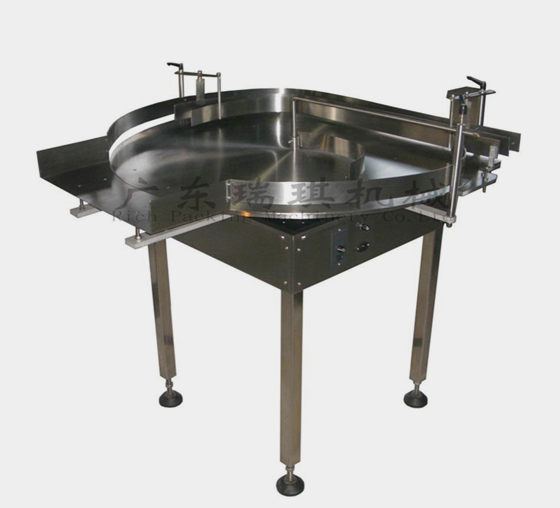

RF-GP-120R Rotary Tray Bottle Unscrambler

Introduction

This bottle unscrambler is used for organizing and transporting the round bottle, shape bottle, square bottle, plastic bottle and glass bottle in pharmaceutical, chemical, foodstuff and healthy product factory.

Main Features

1. The structure of machine is simple, it is easy to operate.

2. The rotary bottle tray adapts frequency converter for adjusting the speed, ensure the synchronization with the following machine.

3. The materials contact parts and the shell of machine is made of 304 stainless steel, meeting the GMP requirements.

Main Technical Parameters

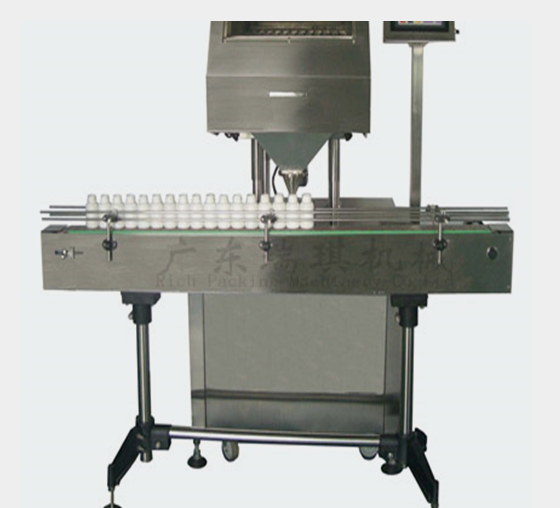

GS-12 Tablet&Capsule Counting Machine

Introduction

GS-12 tablet counting and filling machine adopts advanced vibration and multi-channel feeder, computer control, dynamic scan counting, transfer the bottle automatically, system test automatically. The machine With Error alarm, Stop automatically function and other advanced technology. This machine designed with GMP standard. Compose the light, electric machinery to one set, which is suitable for tablet or capsule counting and filling in pharmaceutical or food business.

Main Features

1.It is suitable for counting and bottle filling tablets, pills, hard capsules, soft capsules, transparent capsules and shaped tablets. Do not need to change the structure of machine.

2.With high counting precision, adopts independent optical detection system, which can reduce the influence caused by dust. To ensure the high counting precision and speed.

3.Stop counting and filling when the bottles are absented or plugged.

4.Adopt PLC touch screen control, which is convenient for adjusted the parameters.

5.Operation is simple and flexible, with function of sub-bottle. This machine can be single used or equipped with production line.

6.Self-diagnose errors; stop working to make alarm at errors and missing bottles.

7.It ca save 30 kinds operating parameters, it do not need change the parameter when replace product. Directly use the original saved parameters.

8.The whole machine is made of stainless steel and aluminum, solid structure and beautiful appearance.

9.There degree vibrating feeding, the vibrating frequency can be adjusted, which ensure the high speed and stable feeding.

10.Cylinder positioning for bottle, high speed and high precision of bottle positioning.

11.With complete supporting information (It contains machine structure, working principle, maintenance, upgraded and so on.), which guarantee the normal operation of machine.

Main Technical Specifications

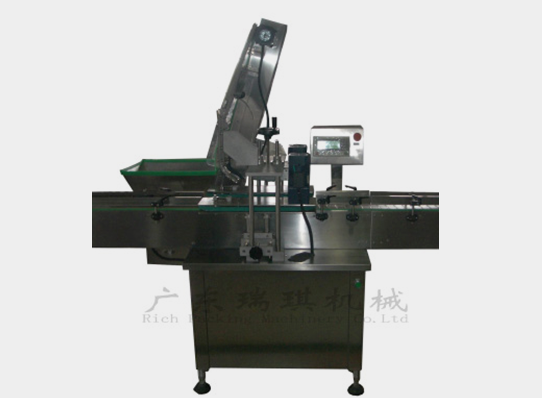

RF-YG-120H High Speed Capping Machine

Introduction

It is economical, and easy to operate. This versatile in-line capper handles a wide range of containers at speeds up to 120 cpm and offers a quick and easy changeover that maximizes production flexibility. The tightening discs are gentle which will not damage caps but with an excellent capping performance.

Main Features

1.Capping speed up to 120 CPM

2.Wide applicability for various caps and bottles

3.Auto stop and alarm when lack of cap

4.Stainless Frame

5.No-tool adjustment

6.Choice of various types of cap feeders

Main Technical Parameters

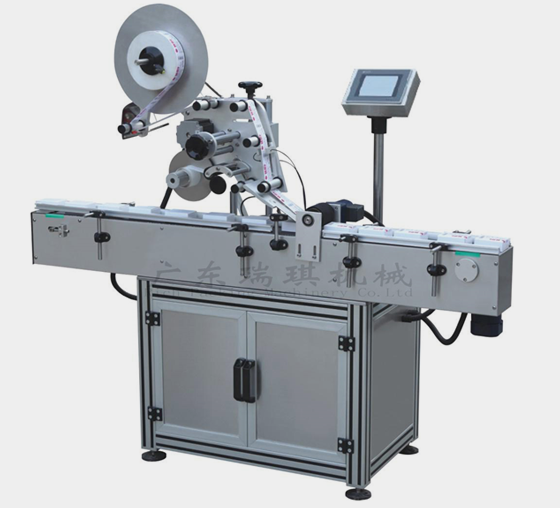

RF-PMTB-80 Flat Surface Labeling Machine

Introduction

This machine is suitable for surface labeling on various specification of products. It also can be used for paper or similar product. It can equip with the bottle unscrambler, directly connect the bottle packing line. The ribbon coder is optional, can achieve online printing date and batch number, reduce the bottle packing process, improve the production efficiency.

Main Features

1.Bottles separation mechanism or pages separation mechanism equipped to make objects feeding equidistantly.

2.Rolling wheels press bottles and make the labels more firmly.

3.Stepping or servo motor adopted as the main motor (According to customer’s need)

4. It can be used along or equipped with the packing line.

5. SCM control.

Main Technical Parameters

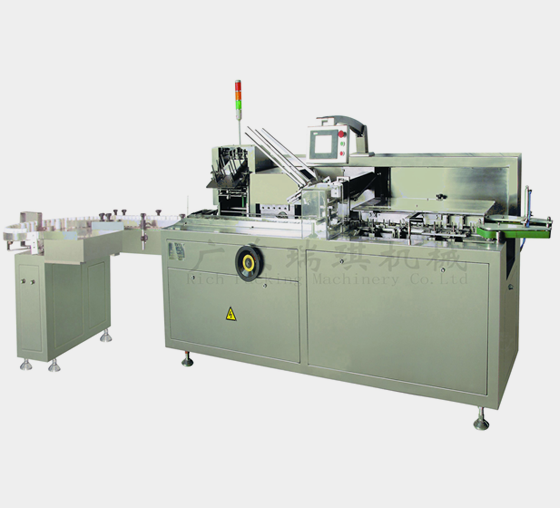

Cartoning Machine

Introduction

This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electronic-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for automatic feeding bottle (round, square bottle. Adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet push into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

Main Features

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2. Adopt human-machine operation system.

3. Automatically stop when machine is overload.

4. Automatically reject lacking of package product and leaflet.

5. Automatically display trouble, alarm and count finished products.

6. Stable performance, operation is easy.

Main Technical Parameters
