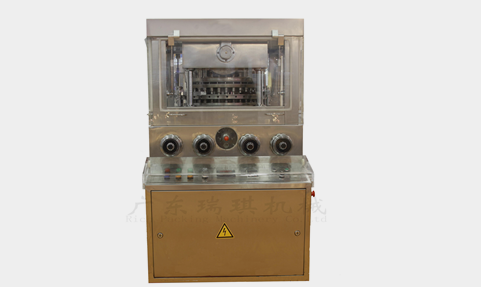

ZP-35D Rotary Tablet Press Machine
ZP-35D Rotary Tablet Press Machine
Introduction
ZP-35D rotary tablet press is a double-pressing type, continuous automatic tablet press for pressing granular raw materials into tablets with different shapes, double color and impressed letters on both sides. It is mainly used in manufacturing piece prescription in pharmaceutical, chemical, foods, electronics industry.
Main Features
1.Machine meets GMP and made in stainless steel. The inner surface already be special treated, which could keep surface luster and prevent from being polluted crossly.
2.Equipped with transparent window which could help to observe the status of pressing tablet. Transparent window could be fully opened, machine easy to clean and maintenance. All monitors and operating components work well together.
3.Machine speed could be adjusted.
4.Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically. Combing machine with electricity, equipped with touching key and screen. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
5.Transmittible system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding.
6.A powder suction unit is attached to take the residual powder during operation, so that the blockage powder can be collected and be reused.
Technical Specifications:
Model | ZP-35D |
Max pressure | 80kN |
Max compression diameter | 13mm |
Max filling depth | 15mm |
Max tablet thickness | 6mm |
Throughput | 150000pcs/h |
Power | 4kW |
Power Supply | 380V/50Hz |
Dimensions | 980*1240*1690mm |
Weight | 1850kg |
