DPP-80 Plate Aluminium-plastic Blister Packing Machine

Published:2015-12-21Author:Sources:Views:2351

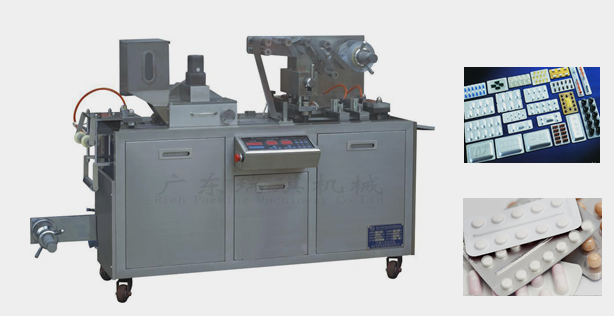

DPP-80 Plate Aluminium-plastic Blister Packing Machine


Introduction

This machine is suitable for blister packing tablet, capsule, pill, injection and other medicine, food, electronic component in pharmaceutical, foodstuff, medical equipment, cosmetics, health products and handicrafts and so on.


Main Features

1.This machine adopts the latest model of high-power transmission, the row chain drive the transmission shaft, which eliminates the other gear transmission error and noise.

2.Electrical adopts the imported control systems, which can be customizing by the user. Equipped with the short shot up leakage device, missing particle detection and removed device (Omron Sensor). Adopts imported converter.

3.This machine adopts photoelectric system: PVC、PTP、tropical aluminum packaging and automatic feeding、waste selvage automatic material receiving device, which ensure the long-distance multi-site synchronization stability.

4.This machine adopts sub-portfolio structure: PVC informing、feeding、hot sealing; Tropical aluminum cold forming、hot sealing、blanking.

5.This machine can be equipped with reprovision photoelectric detection and corrected device, equipped with imported stepper motor, photo printing and packaging, which will optimize the grades of packaging.

6.Application: capsule, tablets, pill, injection and other medicine and food, electronic components blister sealed packaging.


Main Technical Parameters

Model

DPP-80

Blanking

10-40 time/min

Production Capacity

2400 version/h

Max. informing area anddepth

70*110*26(mm)

Standard Stroke

20-70mm  (It can be designed by users.)

Standard Forum

80*57mm  (It can be designed by users.)

Air Pressure

0.6-0.8MPa

Total Power

380V/220V  50Hz 1.8Kw

Main Electrode Power

0.75Kw

PVC Rigid Film

0.15-0.5*80mm

PTP Aluminum Foil

0.02-0.035*80mm

Dialysis Paper

50-100g*80mm

Cooling of Mold

Tap  water or recycled water

Outline dim.

1500*600*1200mm

Weight (Kg)

450Kg

Noise Index

<75dBA

Working Process

1.Forming (Upper and lower heating)

2.Hot sealing (Upper heating)

3.Coding

4.Indentation (Heating a little)

5.Cutter

6.Output product



D.Configuration List of Machine

1. Transmission parts

NO.

Item

Quantity

Model

Manufacture

1

Traction drive  cylinder

2

φ32×Travel 15

Wenzhou Yida

2

Main motor

1

YS750W-4R

Taiwan Dongli

3

Heating parts

3

AL100×130

Jiangsu Taixing

4

Frequency converter

1

DVA-2S0007G

Wenzhou Drive  Electric Co., Ltd

5

Feed motor

1

70-CK-25-K

Rui'an Maili Micro  and Special Electromotor Co., Ltd.


2. Electrical Components

No.

Item

Quantity

Specification

Manufacture

1

Thermocouple

2

LI-2M

Zhejiang Zhongpu

2

Air circuit breaker

1

DZ47-63/10A

Zhejiang Zhengtai

3

Air circuit breaker

2

DZ47-63/6A

Zhejiang Zhengtai

4

Air circuit breaker

1

DZ47-63/25A

Zhejiang Zhengtai

5

Relay

5

HRS4H-S

Zhejiang

6

Single chip  microcomputer

1

Panel

Joint Venture

7

Solid state relay  motor

2

SSR-25DA

Zhejiang Zhengtai

8

Control transformer

1

JBK3-63

Zhejiang Zhengtai

9

Solenoid valve

1

SG4V210-08

Wenzhou Yida

10

Stop switch

1

Y090-/11

Zhejiang Zhengtai

DOWNLOADS Specification Form for Blister Packing Purchasing.xls
