Semi-automatic capsule filling machine

Published:2015-12-21Author:Sources:Views:2584

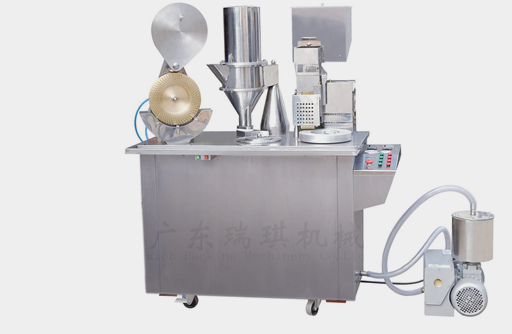

DTJ-C Semi-automatic Capsule Filling Machine




Introduction

This machine is suitable for filling various types of capsules, It is an ideal equipment with smartness accuracy for dosage,novel structure,good-looking,ease of operation,for filling capsule medicine in pharmaceutical industry.


Main Features

1.Joint electricity and gas control, It can automatically finish the action of location,separation,filling, locking etc for capsule.

2.The speed of machine is controlled by the knob of control board, and with the meter display speed.

3.Equipped with a vacuum pump.


Main Technical Parameters

Model

DTJ-C

Max  output

12500pcs/h

Filling  type

00#0#1#2#3#4#  hard capsule

Power

2.2kW

Power  Supply

380V/50Hz

Dimensions

1350*700*1600mm

Weight

400kg


NO.

Item

Specification

Manufacture

Voltage

Quantity

1

Pneumaticcomponents

Model AC-200

Hualong


2

2

Bearing

Various specification

Harbin


Whole set

3

Reducer

WPW-40 Model

Hanzhou Yunshen Reducer Co.,Ltd


2

4

Motor

YS6324。7124

Zhejiang Linhai Chunhua Motor CO.,LID


3

5

Vacuum Pump

XD-40

Shanghai Pujiang Industrial Company


1

6

Stainless steel

304

China


Each piece

7

Frequency converter

N2

Taian-Taiwan

2-220V

2

8

Counter

SYJ-48A1

Chaoke-Zhejiang Ruian

AC-36V

2

9

Thermal relay

NR2-25

Zhengtai


1

10

Button

LAS1-BY-11M

Hongbo-Zhejiang


8

11

AC contactor

LC-1-D09/10

Shanghai Schneider

AC-36V

3

12

Transformer

BK-100

Zhejiang Erbian

Input220V Output  36V

1

13

Time relay

AH-3-3

CKC-Song  Ling Motor

AC-36V

1

14

Small relay

HH54P

ZHEJIANG LIERD RELAYS ENTERPRISE CO., LTD

AC-36V

2

15

Miniature Circuit Breaker

DZ47-25/3P

Zhengtai


1

16

Miniature Circuit Breaker

DZ47-10/1P

Zhengtai


1

17

Proximity switch

GL-8F

Omron

DC0-36V

1

18

Stop switch

Y090-11M

Zhejiang


1

19

Travel switch

AZ-7311

Zhejiang


1

20

Proximity switch

ANJK-5002C

Zhejiang

DC0-36V

1
