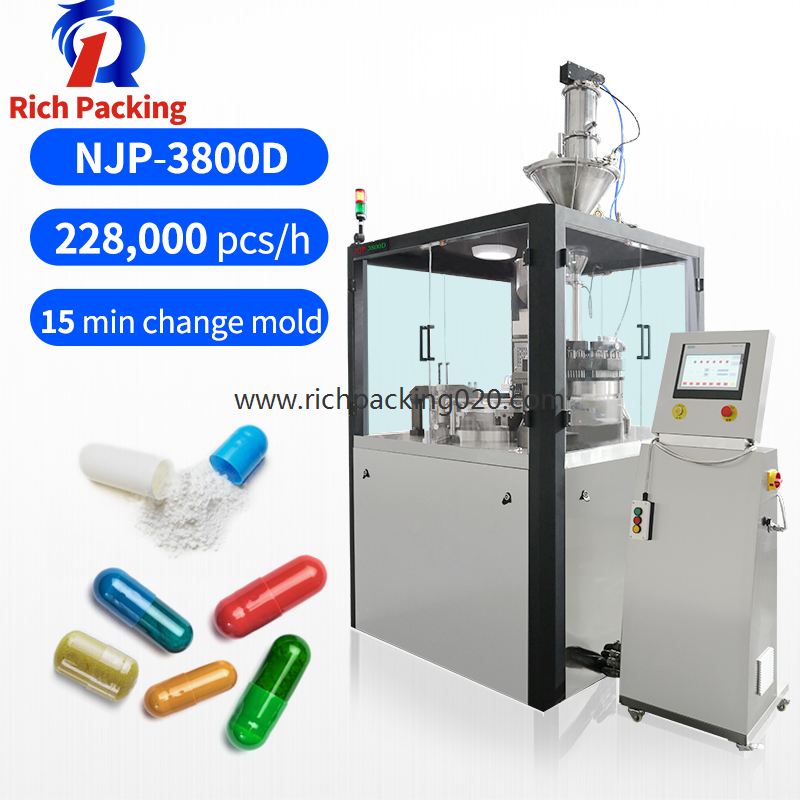

Production capacity | 228000 pcs/h |
Net weight of pill hard gel capsule filling machine | 2200Kg |
Overall size of pill hard gel capsule filling machine | 1395×1180×2200 |
Power of pill hard gel capsule filling machine | 380/220V 50Hz |
Total power of pill hard gel capsule filling machine | 10.5KW |
No.of segment bores | 27 |
Vacuum of pill hard gel capsule filling machine | 120m3/h-0.04-0.08Mpa |
Dust collector of pill hard gel capsule filling machine | 24.5Kpa 210m3/h |
Noise of pill hard gel capsule filling machine | <75DB(A) |
Making rate of pill hard gel capsule filling machine | Empty capsule 99.9% Full capsule 99.8% |
Applicable capsule | 000,00,0,1,2,3,4,5# |
Filling error of pill hard gel capsule filling machine | Western medicine:±3% Chinese medicine:±4% |
Applicable product | Power、granule、pellet、tablet |
1. There is a extremely large station of sowing with double sowing setting and this makes more hollow capsules can be held.
There are more possilities can be seen in this machine because it has pellet device which can fill pellet or small tablet into capsule.
This machine is more worth buying when it compared with other type C machine under the same speed and with the same speed due to various advantages of this type D.
1. Totally automatic capsule filling machine is reasonable in design and it has modular structure and it is simple in operation and low in failure rate. 2. This capsule filling machine has the switch of door control and emergency stop to well protect people. 3. Capsule filling machine is excellent in rotary design which has got novel practical patent and its sealing washers utilizes SIL sillicone rubber to perfectly prevent dust into the inner turntable. And it is excellent in sealing performance and zero dust overflow pollution can be seen. 4.The totally cam indexing box 100ds of automatic capsule filling machine is high in precision and very different from other machines 83DS in other factory. And it reduces the frequency of fault and avoid other problems of force shaft and output shaft fracture. 5.All types of filling rods can be replaced by pullout slots plus brackets for filling rods of totally automatic capsule filling machine.
