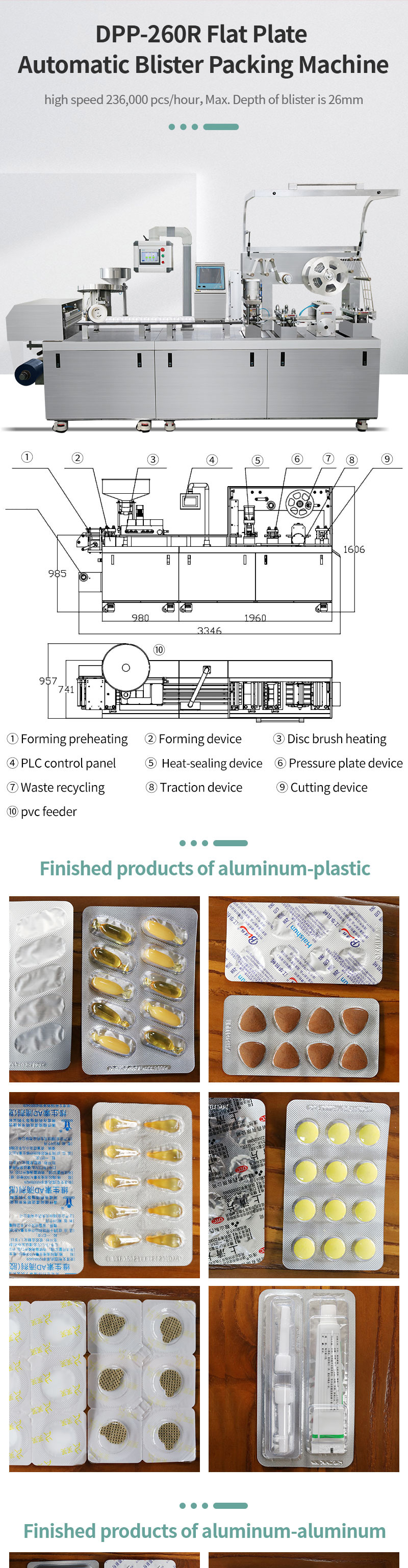

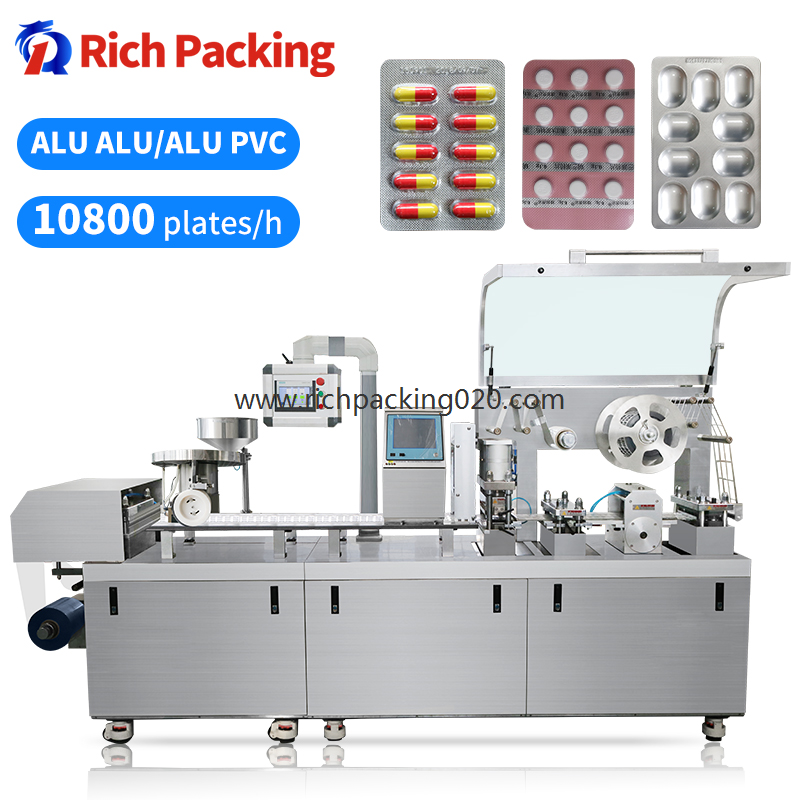

Model | DPP-260R |
Production Capacity | 1.8～236,000 pcs/hour |
Max. Shaping Dia. And Depth | 250*160*15mm Max. Depth 26mm（custom-made） |
Blanking | 20～180 blisters/min (aluminum plastic) 20～120 blisters/min (aluminum aluminum) |
Power of Main Motor | 1.5kW |
Total Power | 6.0kW |
Power supply | 380V/220V/50Hz |
Standard Travel Range | 40～160mm |
Standard Plate | 80*57mm |
Thickness and Width of PVC | 260×0.15～0.45mm |
Thickness and Width of PTP | 260×0.02～0.03mm |
Dialyzing Paper | 50～100g*260mm |
Vacuum | 0.4MPa-0.6MPa |
gas consumption | ≥0.2m3/min |
Noise | <75dBA |
Mold Cooling | Runing water or circulating water It is recommended to use constant temperature cold water 60L/H |
Weight | Net weight 2600kg |
Overall Size of Machine | 3500*740*1680 mm(L*W*H) |
configuration list:
Name | Spec./Model | Qty | Manufacturer |
Servo Motor | ECMA-C20807RS | 1 | Taiwan taida |
server Driver | server Driver | 1 | Taiwan taida |
PLC main module | CP1L-M30DR-A | 1 | Omron |
PLC temperature module | CP1W-TSOO2 | 1 | Omron |
PLC touch screen | 6AV6/648-0BC11-3AX0 | 1 | Siemens |
Encoder | ZSP3806-003G-1500BZ3-5-24F | 1 | United States Rip Ann Waco |
Main motor | RC series helical gear motor | 1 | Suncheon |
Frequency converter | VFD015B43A | taiwantaida | |
Stainless steel plate | 304 316 | Korea,japan | |
Switching power supply | NES-100-24 | Taiwan mingwei | |
Positioning cylinder | SDA32×10 | AirTAC | |
Double pressure reducing valve | BFC4000-N | AirTAC | |
The electromagnetic valve | 4V210-08 | AirTAC | |
Pressure reducing valve | AC2010-02 | AirTAC | |
emergency button | XB2-BS542 | Schneider |
1. Adopt new type of servo motor roller pressing shaft traction the traction accuracy is 0 error, the speed is fast, and the packaging material does not retreat when stopped.

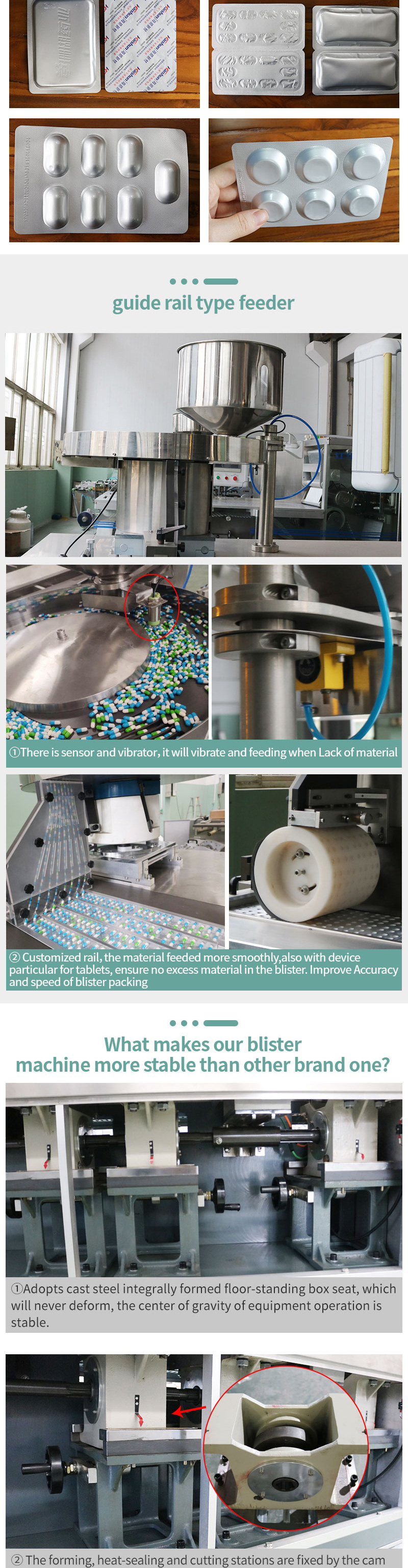

2. The forming, heat-sealing, indentation and cutting station cam adopts cast steel integrally formed floor-standing box body seat, which will never deform, the center of gravity of equipment operation is stable, and the adjustment of each station is light and accurate.
3. The 260R blister packaging machine adopts a large platform design. The power transmission and cam box are all built-in under the body, which is convenient for cleaning and maintenance after use.

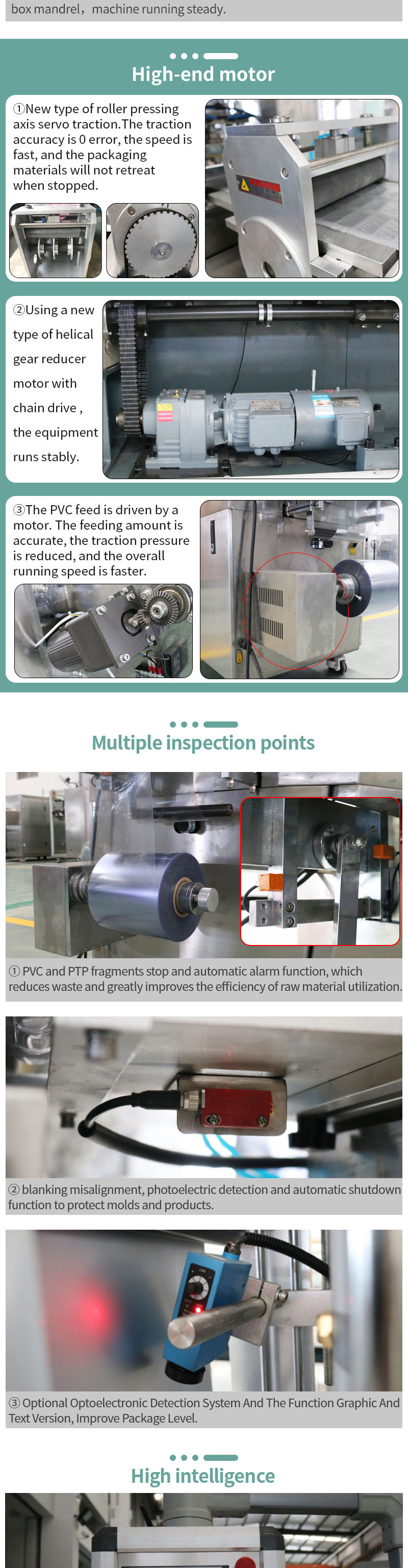

4. PVC and PTP fragments stop and automatic alarm function, which reduces waste and greatly improves the efficiency of raw material utilization.

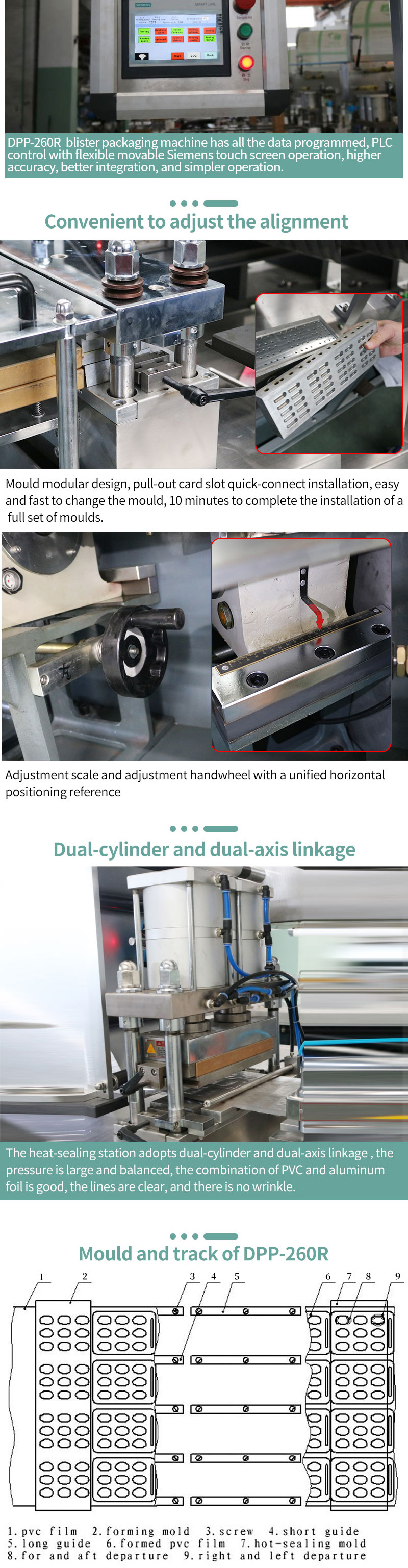

5. Mould modular design, pull-out card slot quick-connect installation, easy and fast to change the mould, the whole set of moulds can be installed in 10 minutes.
6. The forming, heat-sealing and cutting stations are fixed by the cam box mandrel, with a unified horizontal positioning reference and adjustment scale, which is convenient for customers to adjust the alignment.
7. The forming, heat-sealing and punching stations are equipped with safety covers to protect the safety of operators.
8. DPP-260R blister packaging machine has all the data programmed, PLC control, frequency conversion speed control, Siemens touch screen operation, higher accuracy, better integration, and simpler operation.
9. It is equipped with blanking dislocation, photoelectric detection and automatic shutdown function to protect the mold and product.
10. The PVC feed is detected by photoelectricity and driven by a motor. The feeding amount is accurate, the traction pressure is reduced, and the overall running speed is faster.
11. The heat-sealing station adopts dual-cylinder and dual-axis linkage, with large and balanced pressure, good combination of PVC and aluminum foil, clear lines and no wrinkles.
12. Using a new type of helical gear reduction motor, the equipment runs stably.
13. Chain drive, low noise, less than<75dBA.
14. The electrical appliances adopt brand-name products, and the centralized modular design is convenient for maintenance.
15. Each station is fixed by four uprights for better stability.
16. Equipped with emergency stop device, in case of emergency, you can stop immediately.
17. Equipped with waste recycling device, all parts in contact with drugs are made of high-quality 316 stainless steel, high-quality aluminum alloy and other non-toxic anti-corrosion materials, which conform to GMP standards.
18. Optional photoelectric detection system and image-text matching function to improve packaging quality.
19. DPP-260 aluminum plastic machine material has a wide range of applications, and it can be produced with materials such as PVC, PS, and PET.
20. This machine adopts split combination, which can easily enter the elevator and is convenient for installation.
