Model of blister pack packing machine | DPP-260R |
Production Capacity of blister pack packing machine | 18000～236,000 pcs/hour |
Max. Shaping Dia. And Depth | 250*160*15mm Max. Depth 26mm（custom-made） |
Blanking of blister pack packing machine | 20～180 blisters/min (aluminum plastic) 20～120 blisters/min (aluminum aluminum) |
Power of Main Motor of blister pack packing machine | 1.5kW |
Total Power of blister pack packing machine | 6.0kW |
Power supply of blister pack packing machine | 380V/220V/50Hz |
Standard Travel Range | 40～160mm |
Standard Plate of blister pack packing machine | 80*57mm |
Thickness and Width of PVC of blister pack packing machine | 260*0.15～0.45mm |
Thickness and Width of PTP | 260*0.02～0.03mm |
Dialyzing Paper of blister pack packing machine | 50～100g*260mm |
Vacuum of blister pack packing machine | 0.4MPa-0.6MPa |
gas consumption of blister pack packing machine | ≥0.2m3/min |
Noise of blister pack packing machine | <75dBA |
Mold Cooling of blister pack packing machine | Runing water or circulating water |
Weight of blister pack packing machine | Net weight 2600kg |
Overall Size of blister pack packing machine | 3500*740*1680 mm(L*W*H) |

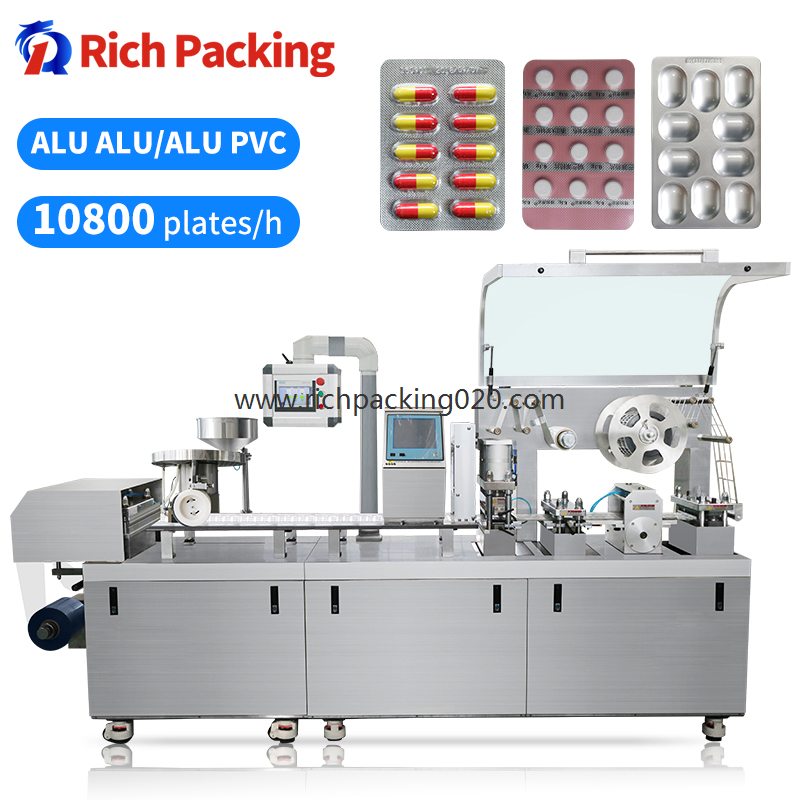

DPP-260R has a wide application in item packing like tablets or pills or capsules or other items and this makes it to be a good helper in item packing for enterprises. Blister packing machine can give a good experience of high level of packing to clients and it has been sold to numerous countries and regions to receive numerous praises. This machine has double functions which makes people convenient to use both functions to best serve them.
Blister packing machine 260R takes full advantage of the raw materials and the production efficiency has been dramatically improved by it. This type of machine has the emergency stop function which can stop and alarm at once if there is anything wrong like PVC or PTP is broken. No material will be wasted by it and the machine is high in accuracy and stable in running and not just these but also very fast in speed.
Blister packing machine will never let anyone down because it has extremely excellent high quality and this machine can be convenient to use and maintain without any difficulty. And the installation is very easy too and the brands of electrical appliances are very famous in the world to ensure the quality of machine. This machine is popular among customers in the domestic market as well as overseas market and all because it is really good in everything.
