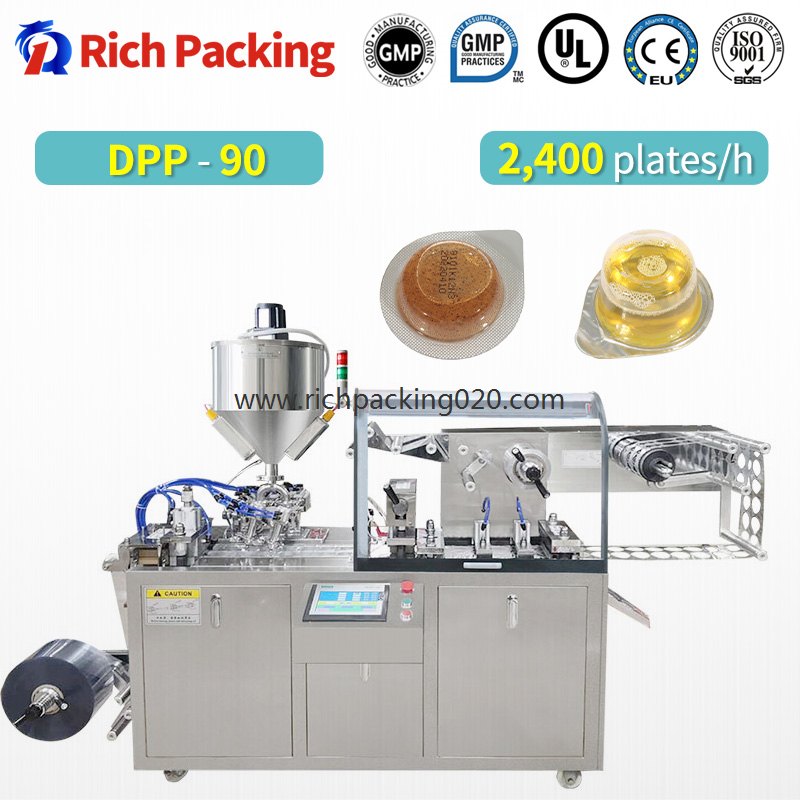

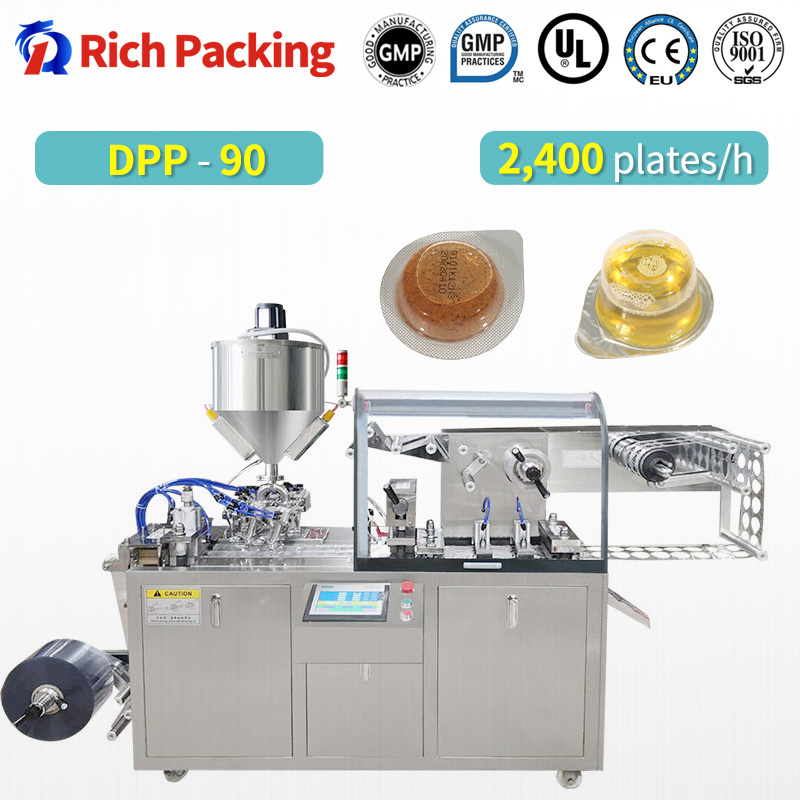

DPP-80L-A Automatic Liquid Blister Packing Machine

Introduction
 This machine is suitable for packing the liquid like chocolate,jam ,butter, honey widely used in food industry.

Main Features

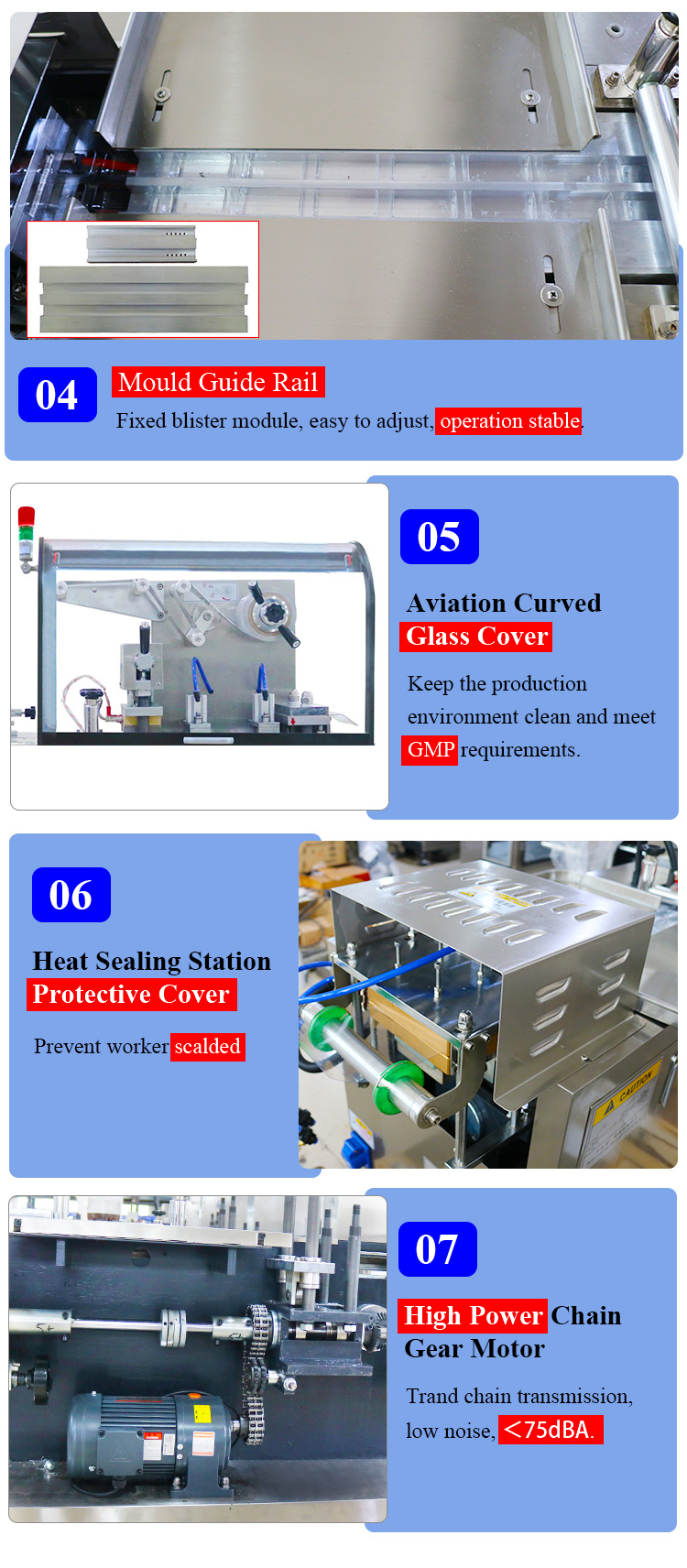

 1.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
 2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
 3.The machine adopts separation sectional combination: PVC forming, Feeding, Heating sealing for one section; Tropical cold aluminum forming, Heating sealing and cutting for another one section for separately packaging.
 4.It adopts photoelectrical controlling system to make PVC, PTP, be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
 5.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade
 6.All of working stations are adopted four columns for position. It is with stability performance and easy operation.
 7.It can add pressing station. It can be with total of four working stations of forming,sealing, pressing and cutting. It is widely suitable for all requirements of packaging.

8.Feeding heading(Note: two feeding head can produce two version each time, but it depends on the size of customer’ product, if it is too big, it will adapt one feeding head.)

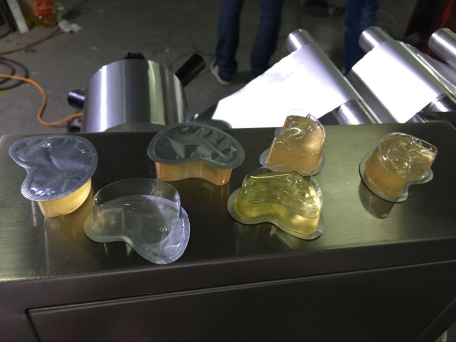

9.Sample

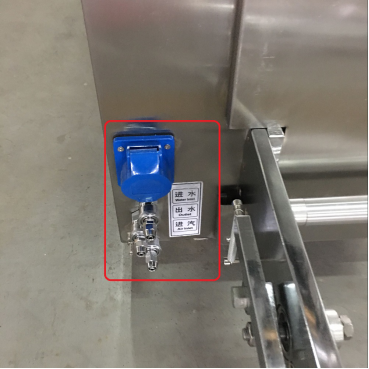

10. Water inlet, outlet and air inlet


Blister forming---Heat sealing---Printing code---Embossing---Puching---Finished products

Technical Parameter
