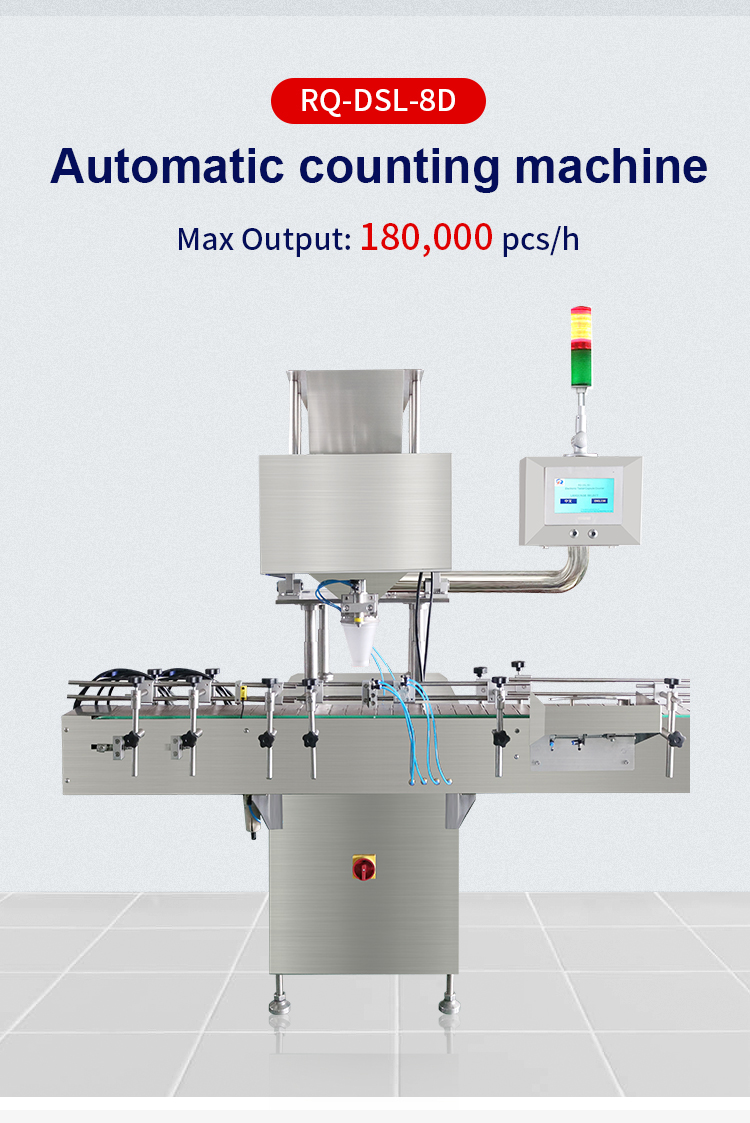

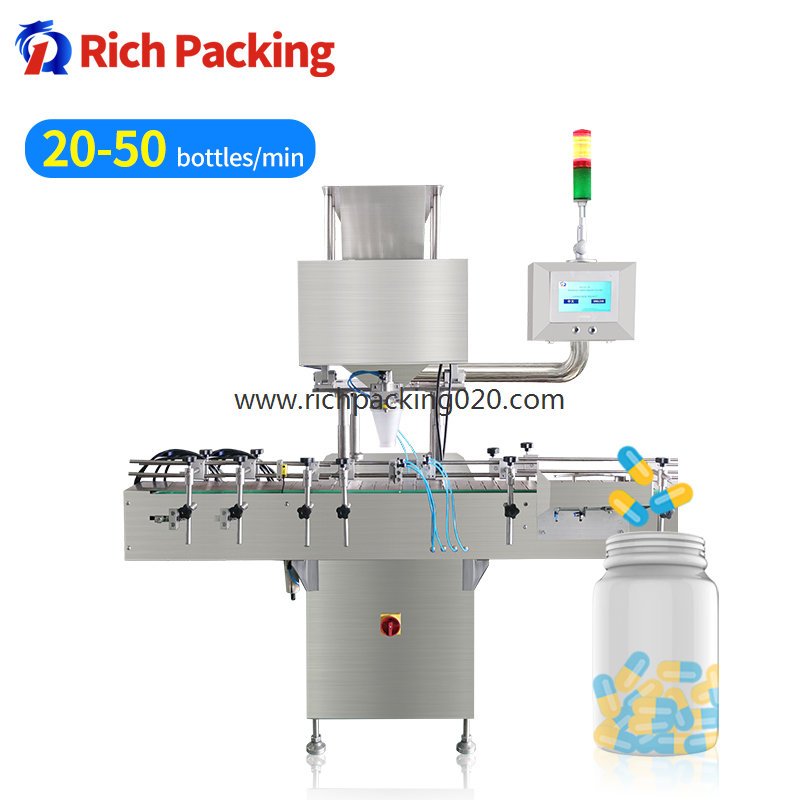

8 Lane Automatic Electronic Pharmaceutical Pill Tablet Capsule Counting Machine
Model of tablet pill capsule counting machine | |
Vibration groove tracks of tablet counting machine | 8 lane |
Production capacity of tablet counting machine | 50 bottles per minute (according to the capacity of 60 capsules per bottle) |
Accuracy rate of tablet pill capsule counting machine | ＞99.97% |
Filling range of tablet pill capsule counting machine | 3 ～ 9999 grains |

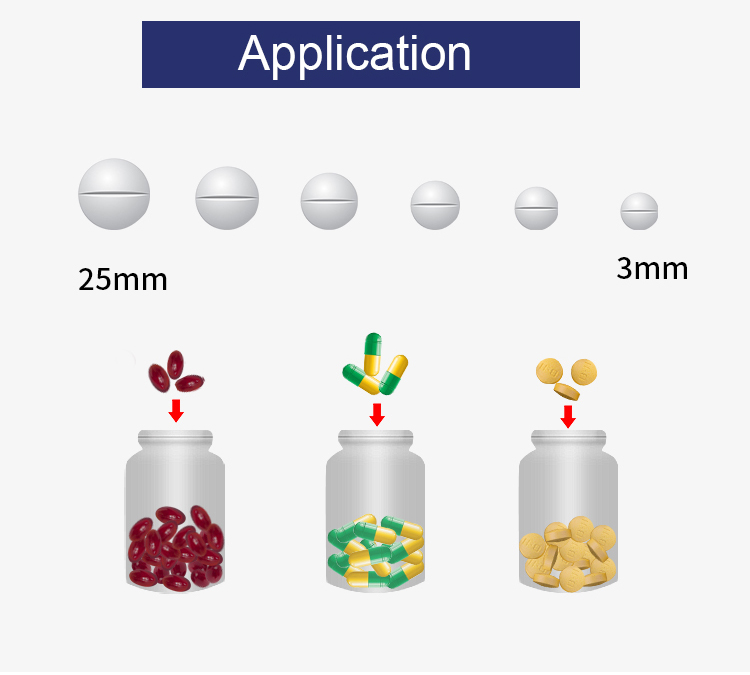

Applicable target of tablet counting machine | Tablet:Φ3～25mm ,pill:Φ3～20mm, |
Applicable bottle type of tablet counting machine | Φ25～75mm round and square bottle, height ≤240 mm |
Voltage of tablet pill capsule counting machine | AC380V 3P 50/60HZ |
Power of tablet pill capsule counting machine | 1.5KW |
Pressure of tablet pill capsule counting machine | 0.4 ～ 0.6Mpa |
Air consumption of tablet capsule counting machine | 105L/min |
Hopper capacity of tablet capsule counting machine | 25L |
Weight of tablet capsule counting machine | 405kg |
Outline dim.(mm) of tablet capsule counting machine | 1100*1400*1800mm（L*W*H） |
Have you ever purchased a defective product with serious powder dropping, inaccurate counting, bottle dropping and so on? Providing and manufacturing high-quality products for customers is the goal of Ruiqi company. The latest generation of automatic electronic tablet capsule counting machine developed by Ruiqi has the function of automatic real-time detection of soft capsule tablets. The capsule pill counting machine can prompt faults and other problems in an emergency during the operation of soft capsule tablets. It is a machine that can count more than 99.97% accurately.

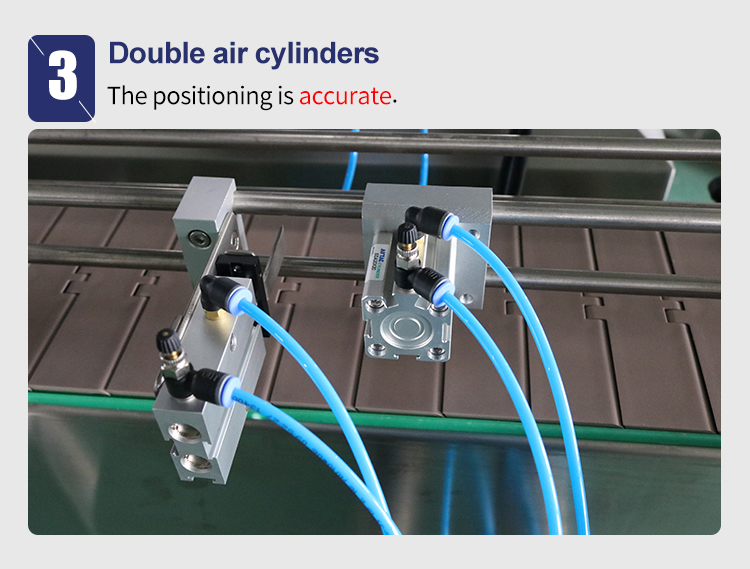

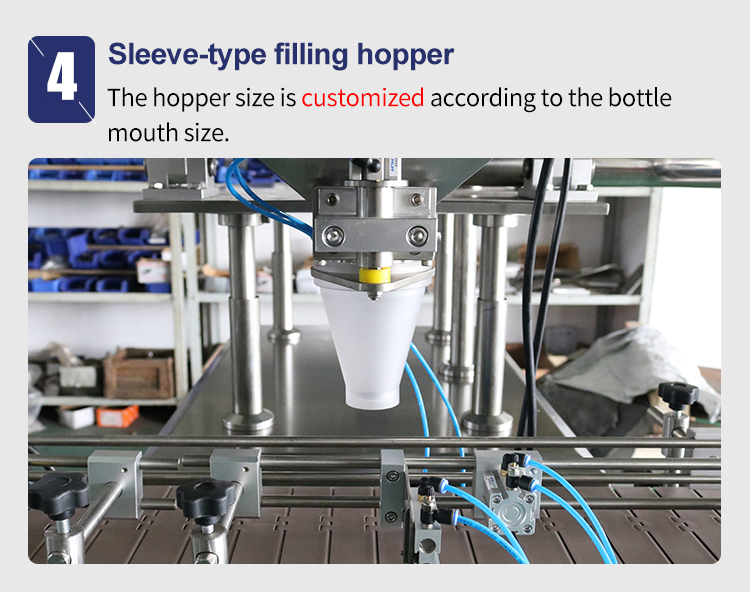

The improved 8-channel automatic counting machine for electronic tablets and capsules is the seventh generation of newly developed products of the company. The D-type model has the characteristics of trying to use a blank port. This product can be bottled quickly and accurately by running up and down. It comes from the blanking port of the new 8D automatic counting machine and increases the cylinder movement structure. Because the machine is equipped with a detection point in front of its blanking station, if the electronic tablet 8-channel capsule counting machine detects that the bottle in front is blocked, the upper slot and lower conveyor will stop operation in time.

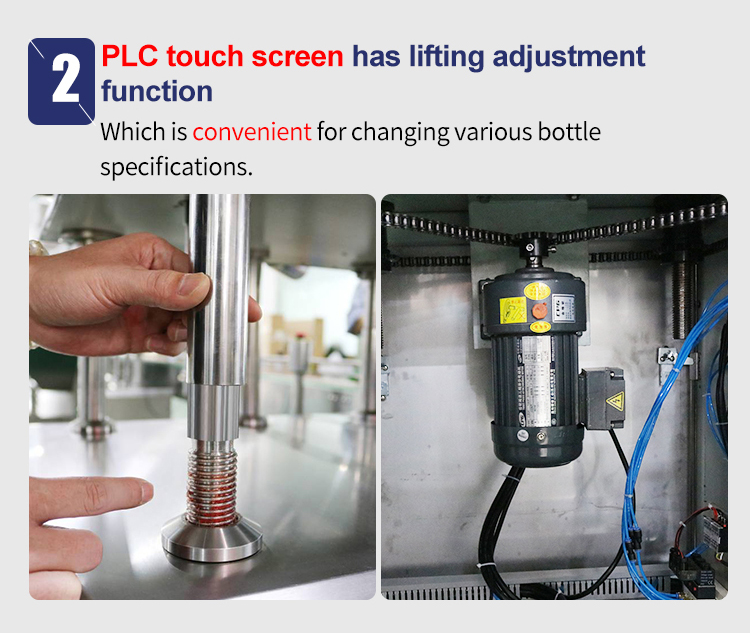

8D this automatic counting machine is our innovative model. As long as you press the relevant keys on the electronic touch screen, you can debug the cylinder sensitivity. It is a device with flexible operation and simple adjustment. Moreover, this model carries out modular innovative design in blanking. In the process of installation and disassembly, it only needs to simply put the part model on the surface.
