Introduction

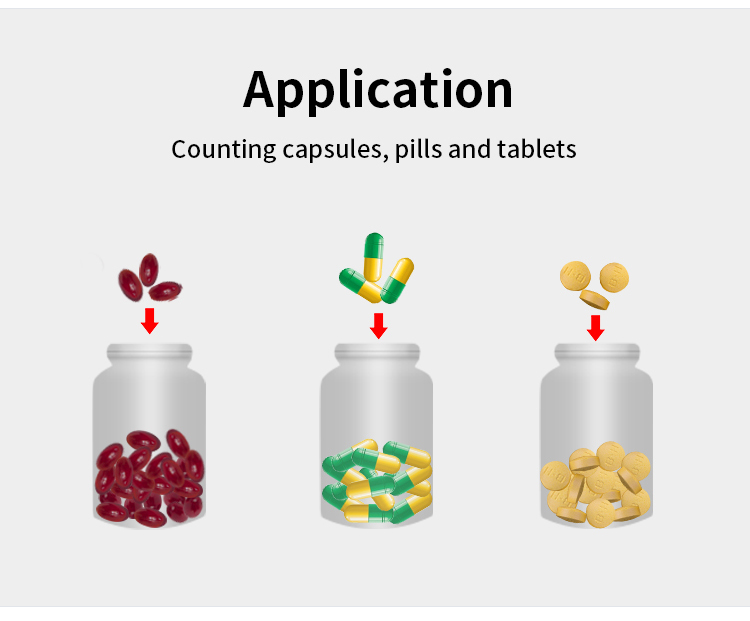

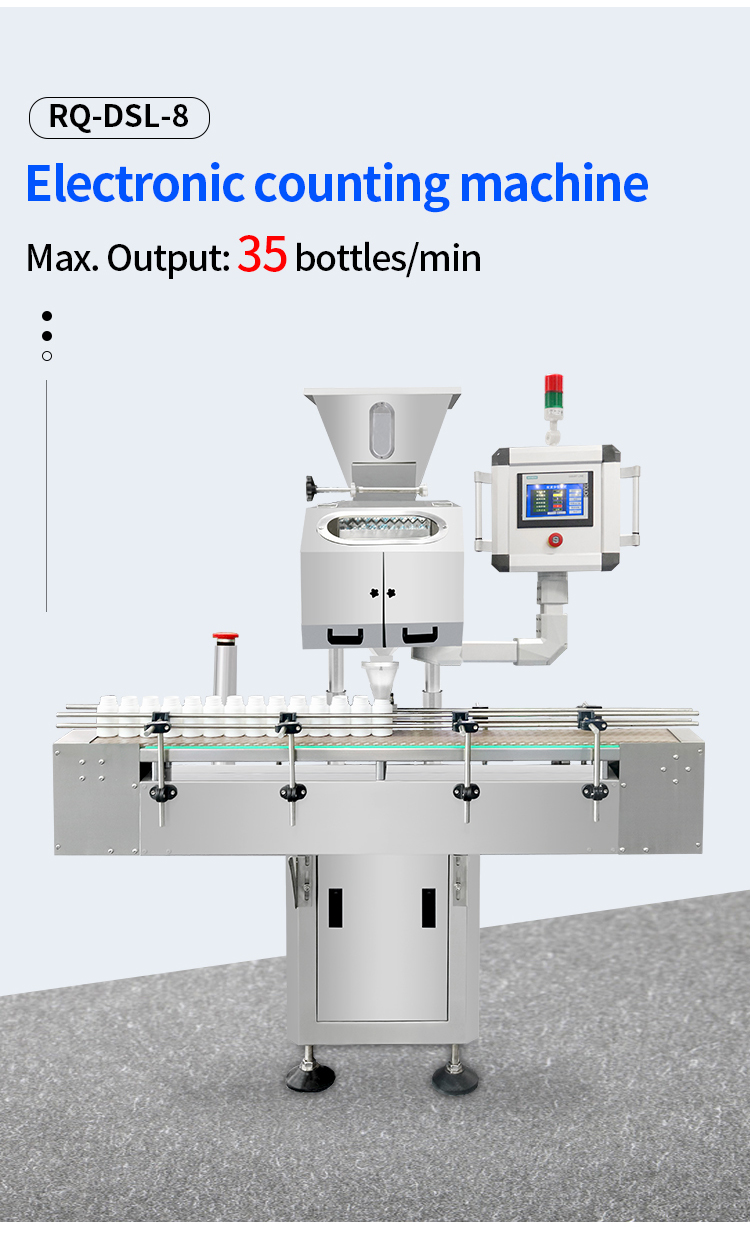

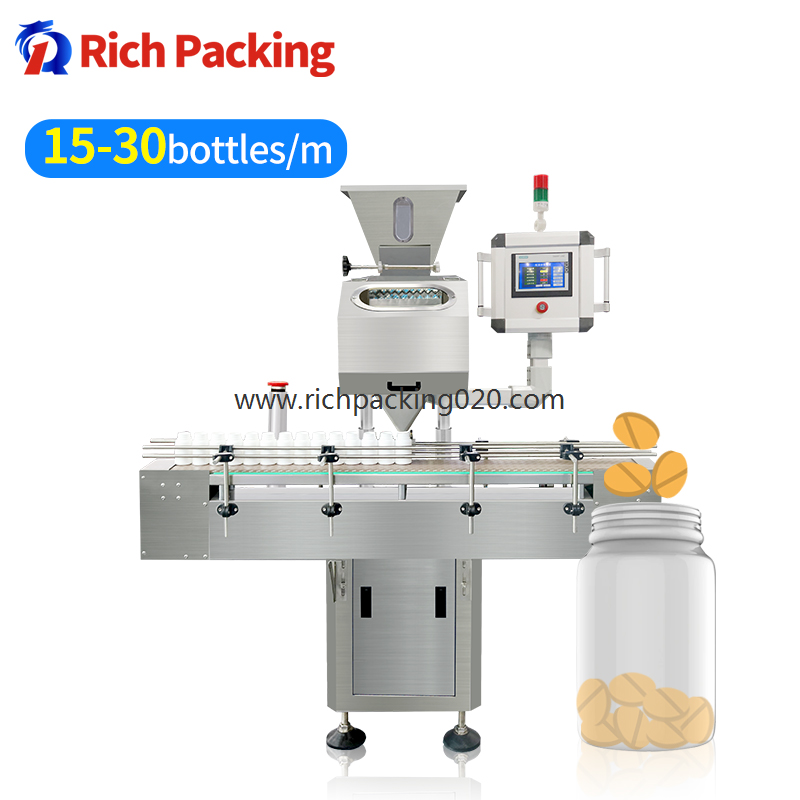

8 channel Tablet counter pill Capsule Counting Machine adopts the most advanced electronic counting technology that is high dust resistant, is used to counting tablets, capsules, pills size ranges from 3mm~25mm and filling into bottles, vials, boxes, sachets after counting. This machine is fully conforming to GMP requirements. It is widely used in the industries such as pharmacy, food, chemical engineering, etc., and it is especially suitable for research institutes, hospitals, small-scale pharmaceutical factories, health product factories and so on.
Production capacity | 10~35 bottles/min |
Production capacity（tablet/hour | 2000 |
accuracy rate | ＞99.8% |
Applicable target | #000-5 capsule, soft capsule, 3-25mm tablet,shaped,sugarcoated tablet and pill |
Filling range | 2-9999 grains (tablets) adjustable |
Applicable bottle type | 10-500ml round, square bottle |
voltage | 380/220V 50Hz or Customized |
power | 0.6KW |
pressure | 0.6Mpa |
weight | 360kg |
Outline dim.(mm) | 1400×1650×1650mm |
Number | item | Qty. | Manufacturer |
1 | Motor | 1 | Taiwan TQG |
2 | Counting photoelectric head | 1 | Taiwan |
3 | Bottle photoelectric eye | 1 | Panasonic |
4 | Button | 1 | Schneider |
5 | PLC | 1 | Siemens |
6 | CPU | 1 | ST |
7 | Power | 1 | Schneider |
8 | Pneumatic elements | 1 | Shanghai |
Main Features

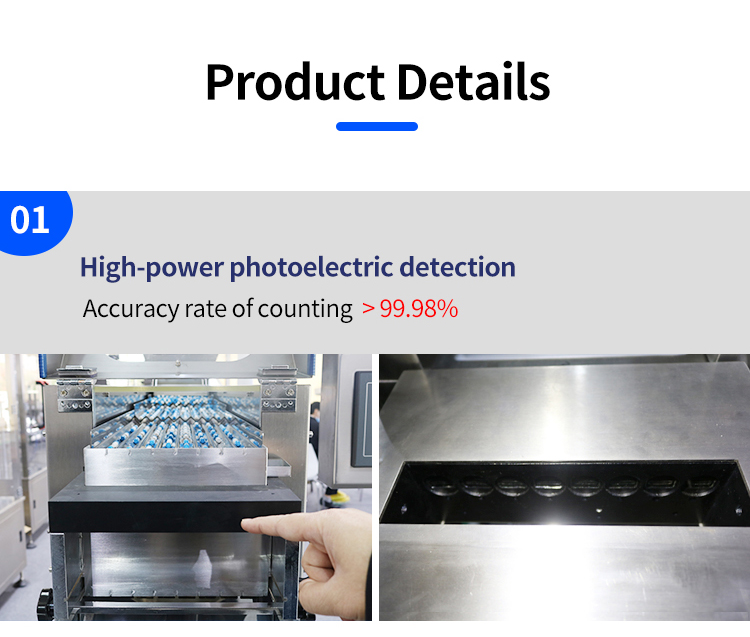

1. Strong compatibility, high accuracy, wide applicable range and adopting the dust-resistance photoelectric detection technology. It is realizing the counting and split charging for the tablet including the shaped tablet, hard capsule, soft capsule ( transparent and nontransparent) and pill.

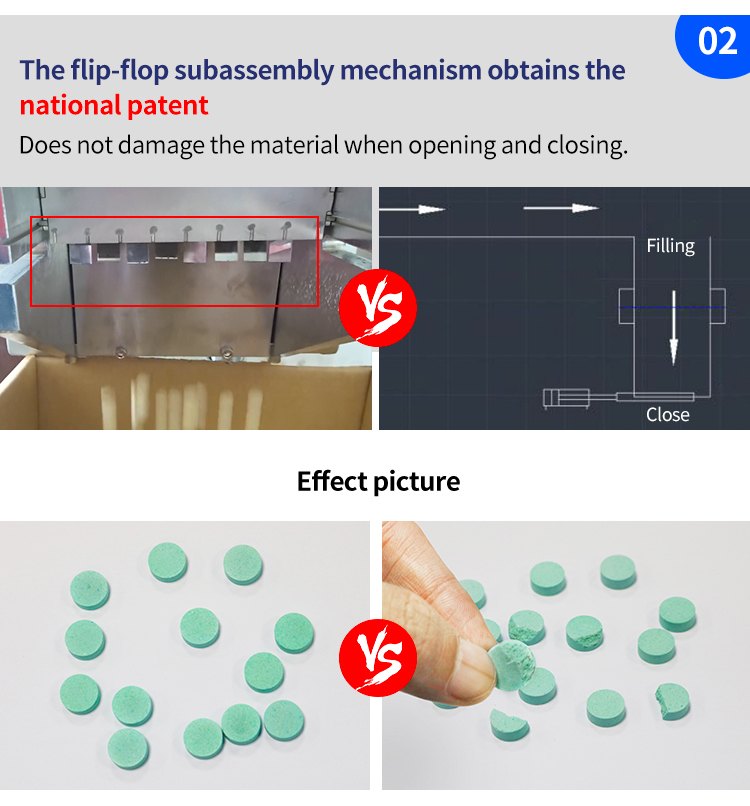

2. The flip-flop subassembly mechanism obtains the national patent, does not damage the material when opening and closing
3. High intellectualism, multi detection and alarming control functions
4. Smart structure, stability, replacing parts infrequently, small occupation area, low cost;
5. Convenience in replacing the variety, automatic rise and fall, convenient and fast disassemble without any tools;
6. Hanging touch screen.Various angles can be adjusted, easy to operate
7. Full automatic operation, intelligent joint control between the last and next processes
8.Double-door enclosed protective cover with Tempered glass window.Low noise during operation and good dustproof effect.And you can check the machine's blanking process, if there is a fault, you can adjust it in time.

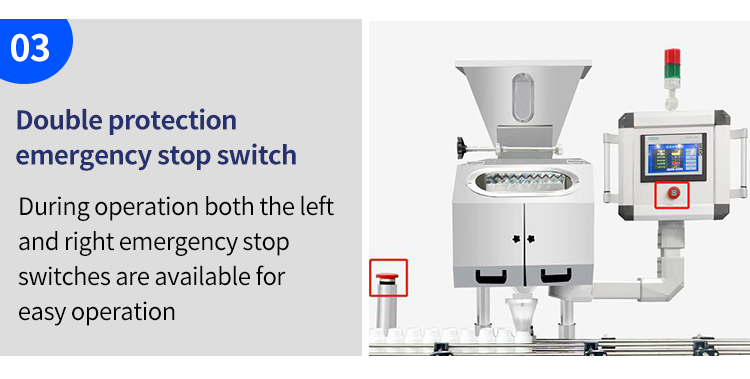

9.Double protection emergency stop switch.During operation, both the left and right emergency stop switches are available for easy operation
10.Transparent operating window.
1)Can observe the working conditions of the machine at any time, find problems and adjust in time
2)Easy to disassemble and clean
