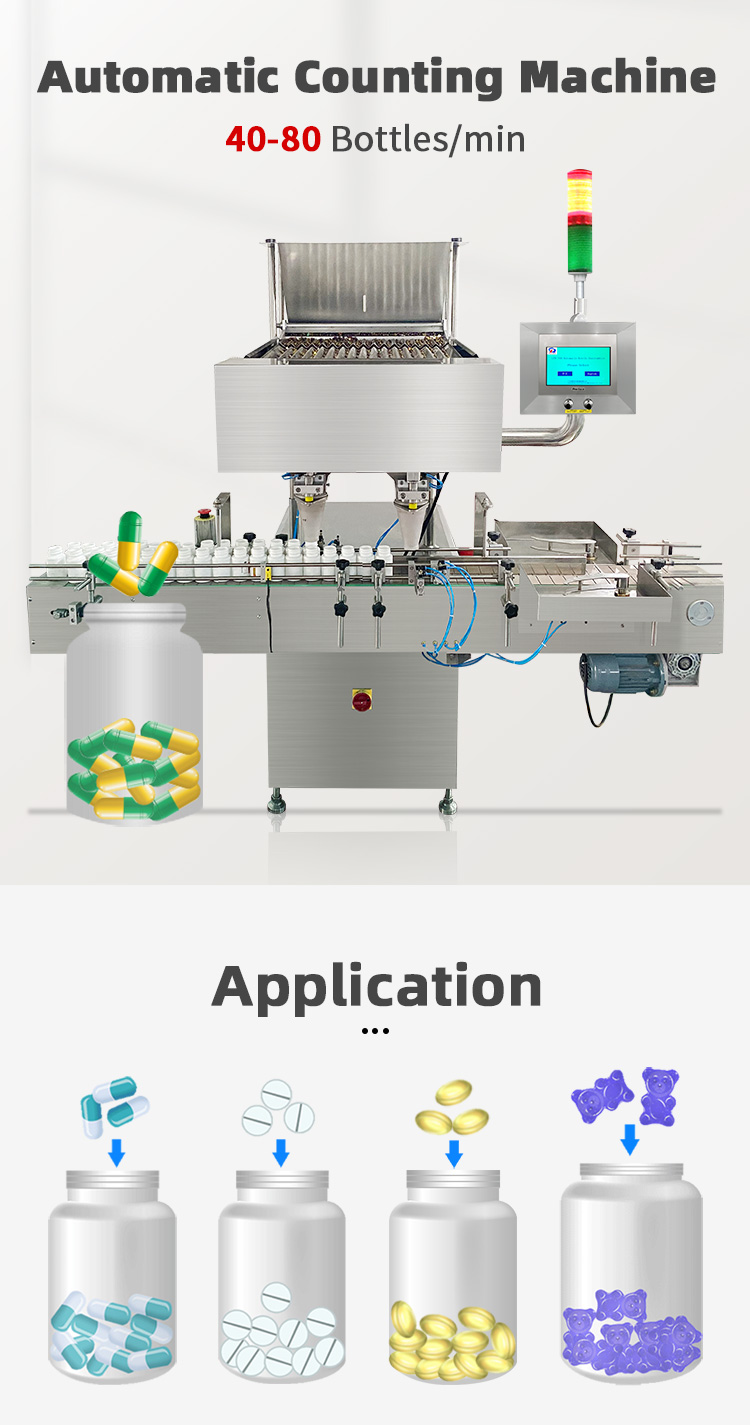

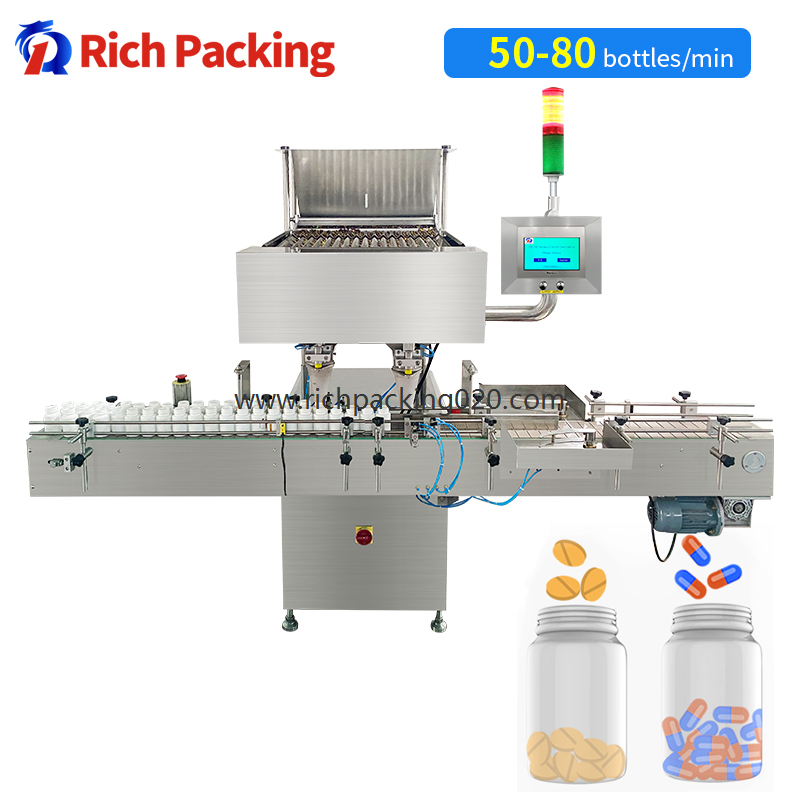

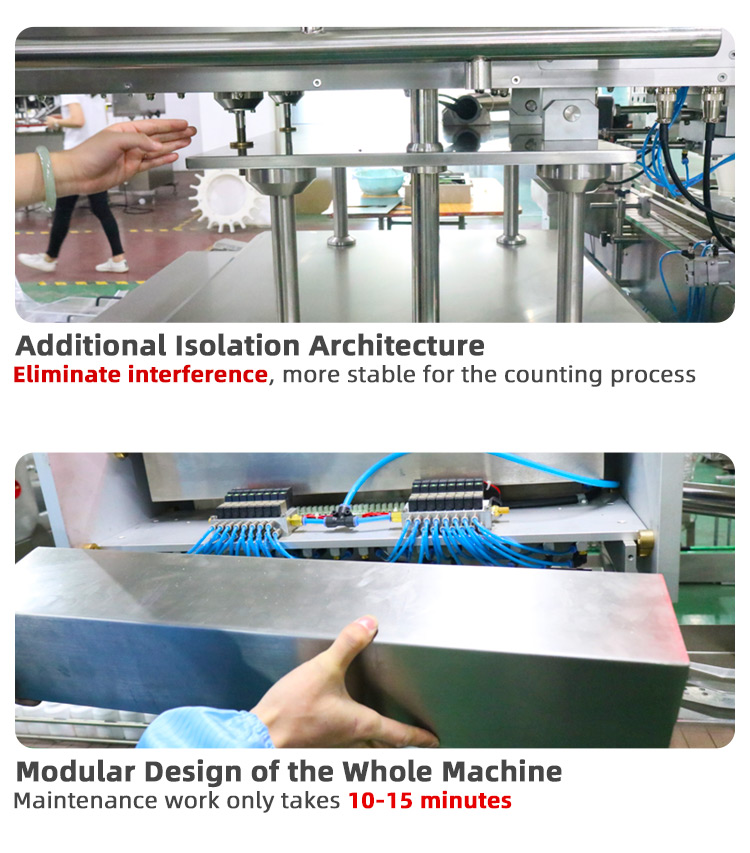

16R medical smart PLC automatic tablet capsule pill counting machine is a novel product in our company, 16R is the sixth generation, it is automatic. Using all kinds of things, including the original technology, modular design, the vibrating trough, the pneumatic pusher, the pneumatic continuous blanking mechanism, etc, this kind of machine is very professional. The counting photoelectric utilizes one-to-one control, it is independent, and this machine is high in precision, fast in speed, very stable in operation. Various tablets and capsules, including transparent or opaque hard capsules, soft capsules, pills and so on in the range of 3-25 mm, all can be packed by this machine. This automatic electronic counting machine in accord with the rules of GMP, perfect for scientific research institutions, hospitals, pharmaceutical factories in small and medium-size, health products factory production packing and counting.
Model | RQ-DSL-16R |
vibration groove tracks | 16 lane |
Production capacity | 200000 ～ 360000 grains/h （50-100 bottle/min） |
accuracy rate | ＞99.97% |
Filling range | 3 ～ 9999 grains |
Applicable target | Tablet:Φ3～25mm ,pill:Φ3～20mm, |
Applicable bottle type | Φ25～75mm round and square bottle, height ≤240 mm |
voltage | AC380V 3P 50/60HZ |
power | 2.2KW |
pressure | 0.4 ～ 0.6Mpa |
Air consumption | 120L/min |
Hopper capacity | 45L |
weight | 650kg |
Outline dim.(mm) | 1200*1550*1750mm |
No. | Item | Specification | Qty. | Manufacturer |
1 | Count Photoelectric Sensor (Receive) | N24.5R | 16 | Lattine |
2 | Count Photoelectric Sensor (Emit) | N24.5E | 16 | Lattine |
3 | Valve Group | M4SB10-M5-6 | 2 | Japan CKD |
4 | Filtrate Regulator | FR500 | 1 | Taiwan SHAKO |
5 | PLC Group | FP∑-C32TH FPO-E16YT | 1 | Japan Panasonic |
6 | Touch Screen | GE4408W | 1 | Japan Pro-face |
7 | Cable Diffuse Sensor | QS18VN6DB | 3 | USA.BANNER |
8 | AC Contactor | GMC-9 | 1 | Korea LG |
9 | DC Contactor | GMD-9 | 3 | Korea LG |
10 | Thermal Overlood Relay | GTH-22/3 | 1 | Korea LG |
11 | Count Cylinder | SCPS2-1030 | 16 | Japan CKD |

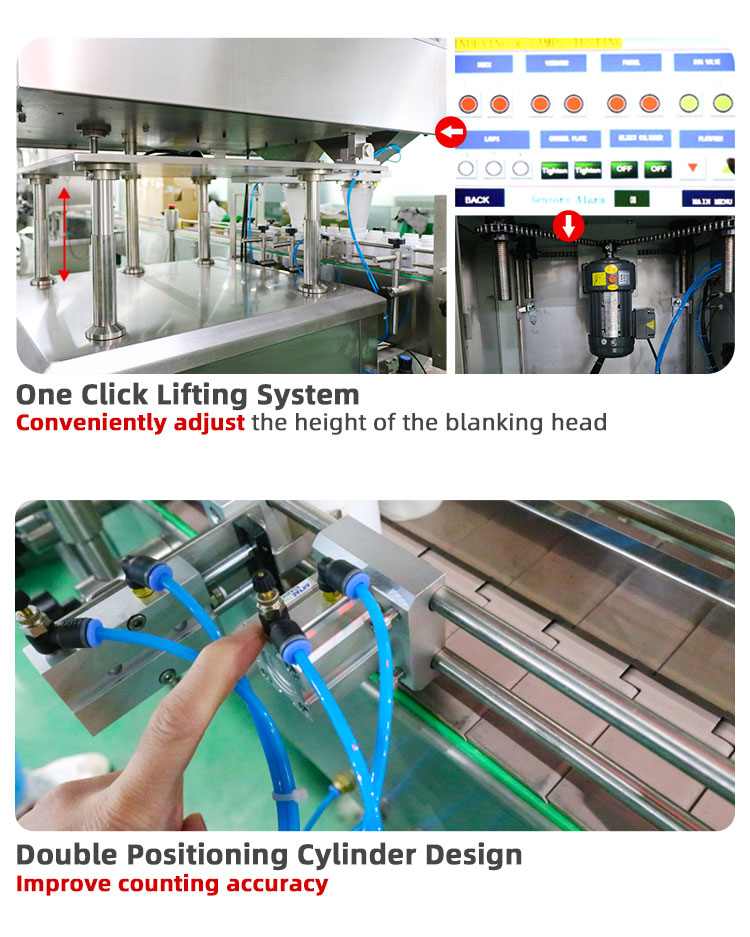

12 | Position Cylinder | SDA20-10 | 4 | AIRTAC |
13 | Control Box | 131200000 | 1 | Germany MECANO |
14 | Directive Signal Light | AL6M-P | 3 | Japan IDEC |
15 | Button Switch | ABW310EG | 1 | Japan IDEC |
