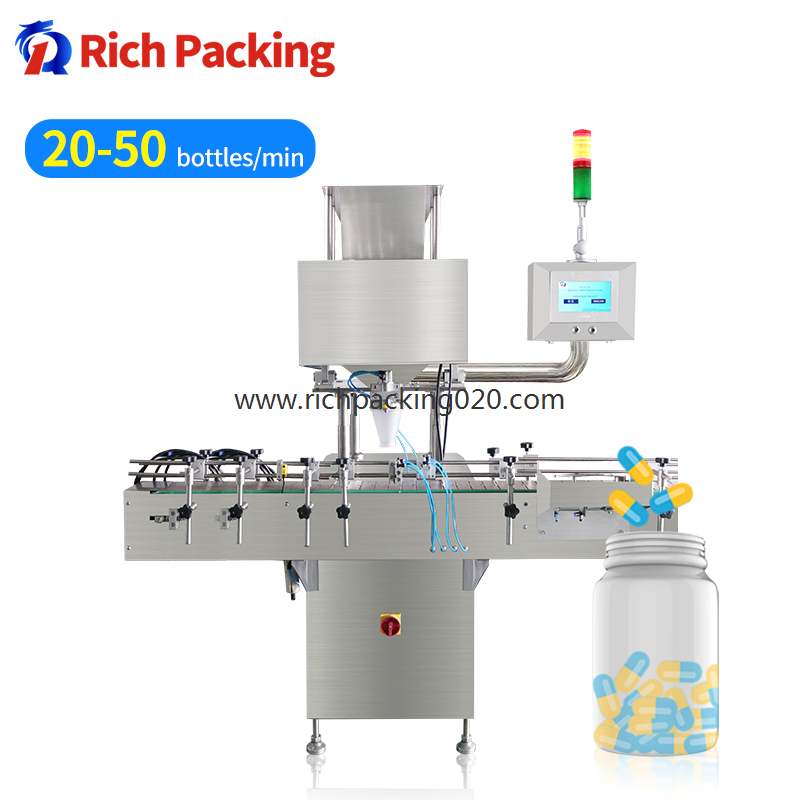

The RQ-DSL-8D automatic tablet counting machine is the smallest model in our electronic tablet counting machine series.The series of electronic tablet counting machines are used in the pharmaceutical, health care and food industries to automatically and accurately count and load various shapes of tablets, hard capsules, soft capsules and other granules in the diameter range of 3 to 25 mm into containers.
Model of tablet pill capsule counting machine | RQ-DSL-8D |
Vibration groove tracks of tablet counting machine | 8 lane |
Production capacity of tablet counting machine | 50 bottles per minute (according to the capacity of 60 capsules per bottle) |

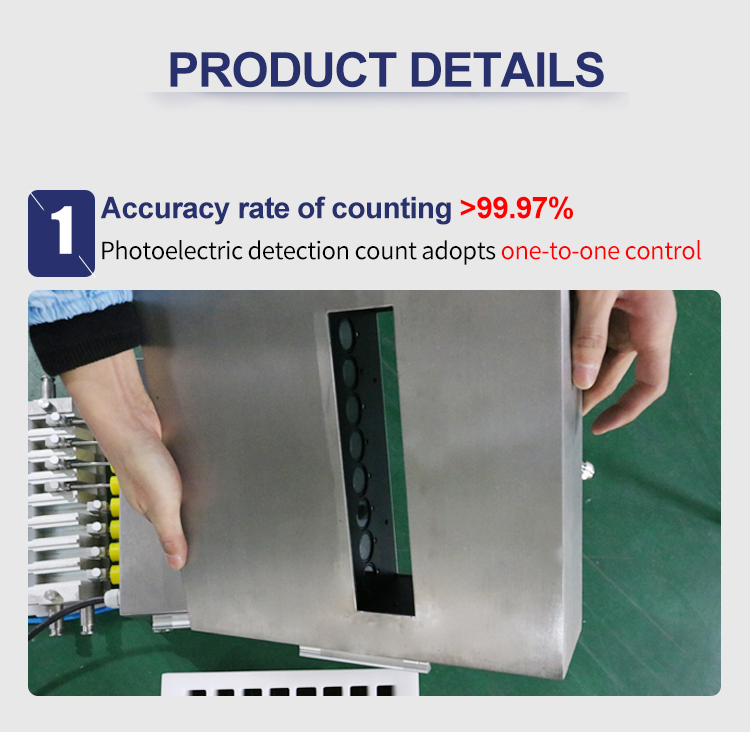

| Accuracy rate of tablet pill capsule counting machine | ＞99.97% |
Filling range of tablet pill capsule counting machine | 3 ～ 9999 grains |

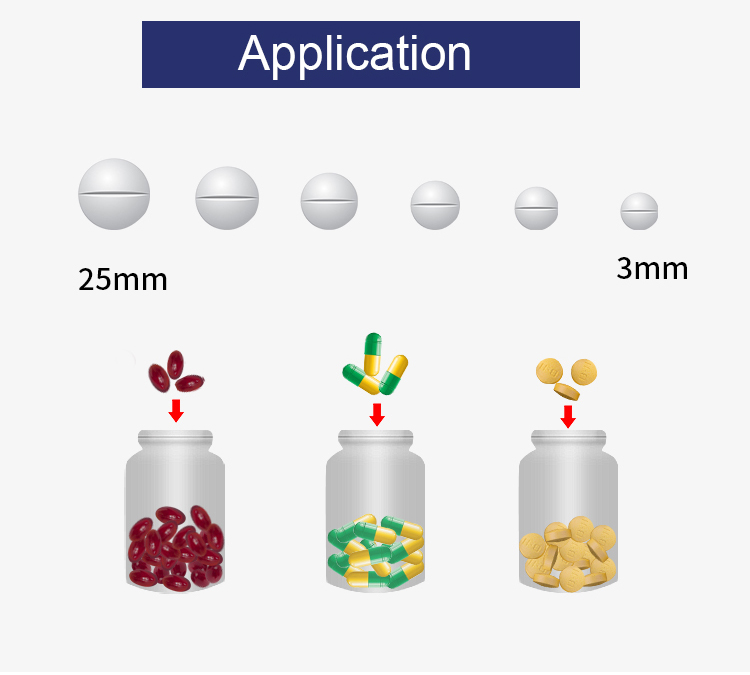

Applicable target of tablet counting machine | Tablet:Φ3～25mm ,pill:Φ3～20mm, |
Applicable bottle type of tablet counting machine | Φ25～75mm round and square bottle, height ≤240 mm |
Voltage of tablet pill capsule counting machine | AC380V 3P 50/60HZ |
Power of tablet pill capsule counting machine | 1.5KW |
Pressure of tablet pill capsule counting machine | 0.4 ～ 0.6Mpa |
Air consumption of tablet capsule counting machine | 105L/min |
Hopper capacity of tablet capsule counting machine | 25L |
Weight of tablet capsule counting machine | 405kg |
Outline dim.(mm) of tablet capsule counting machine | 1100*1400*1800mm（L*W*H） |
