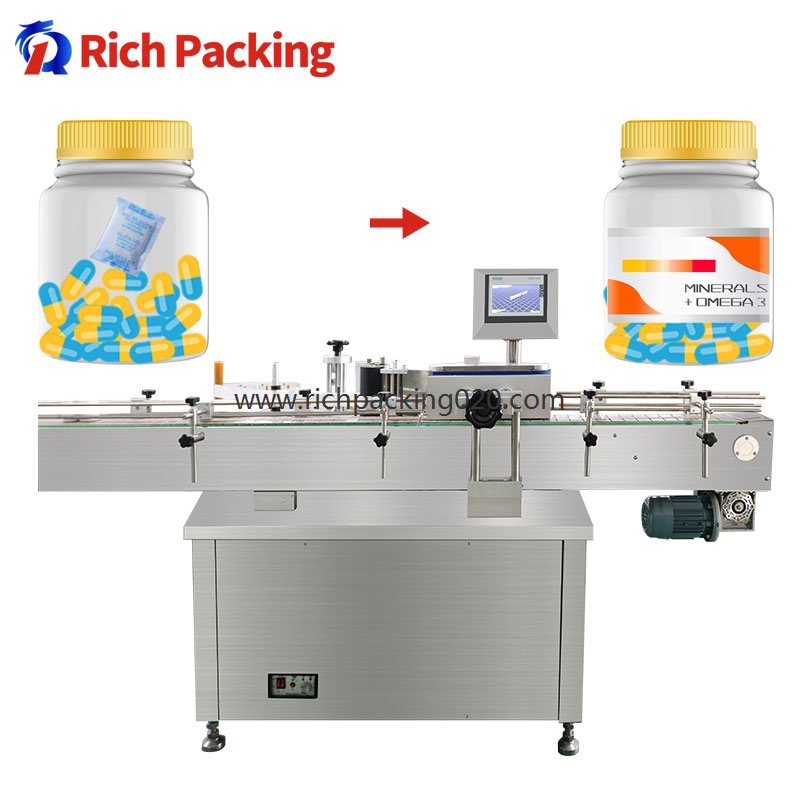

CE cGMP High Speed 200 Bottles/Min Automatic Bottle Labeling Machine Counting Production Machine Line
Model | RQ-HSTB-200 |
Production Capacity | 150-200 bottles/min (related to the size and shape of the bottle) |
Applicable bottle diameter | Φ20～φ80mm |
Applicable bottle | Round bottle |
Power Supply | AC 380V 220V 50Hz |
Power | 1.0kw |
Air pressure | 0.4～0.6Mpa |
Air consumption | 130L/min |
Outline dim. | 2200*1050*1400mm |
Weight | 560kg |

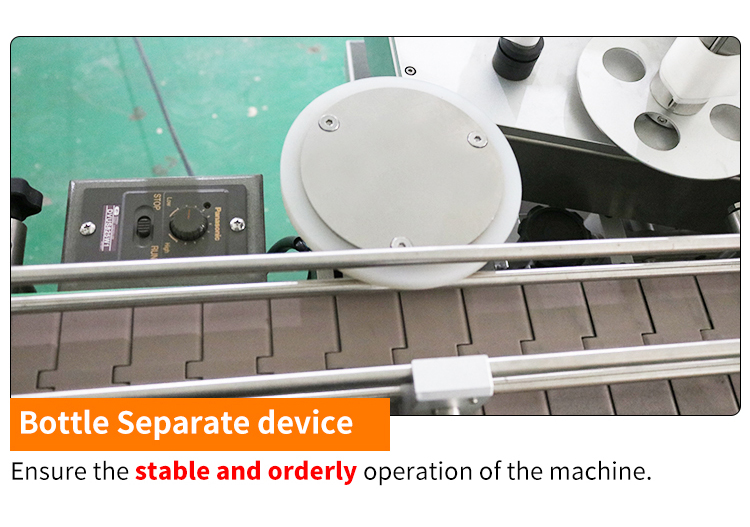

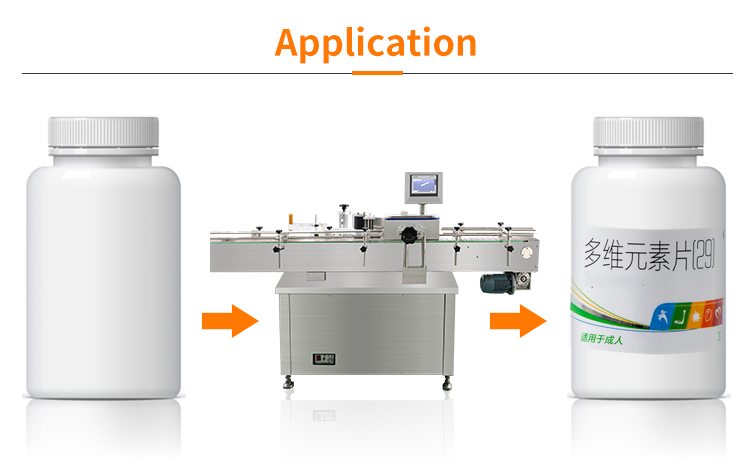

The labeling production working process is that the material glass or plastic bottle pass through the conveyor belts, through the specially designed conveyor wheels which evenly distributes the glass or plastic bottles material, and finally enter the labeling transverse belts to complete the last labeling process.

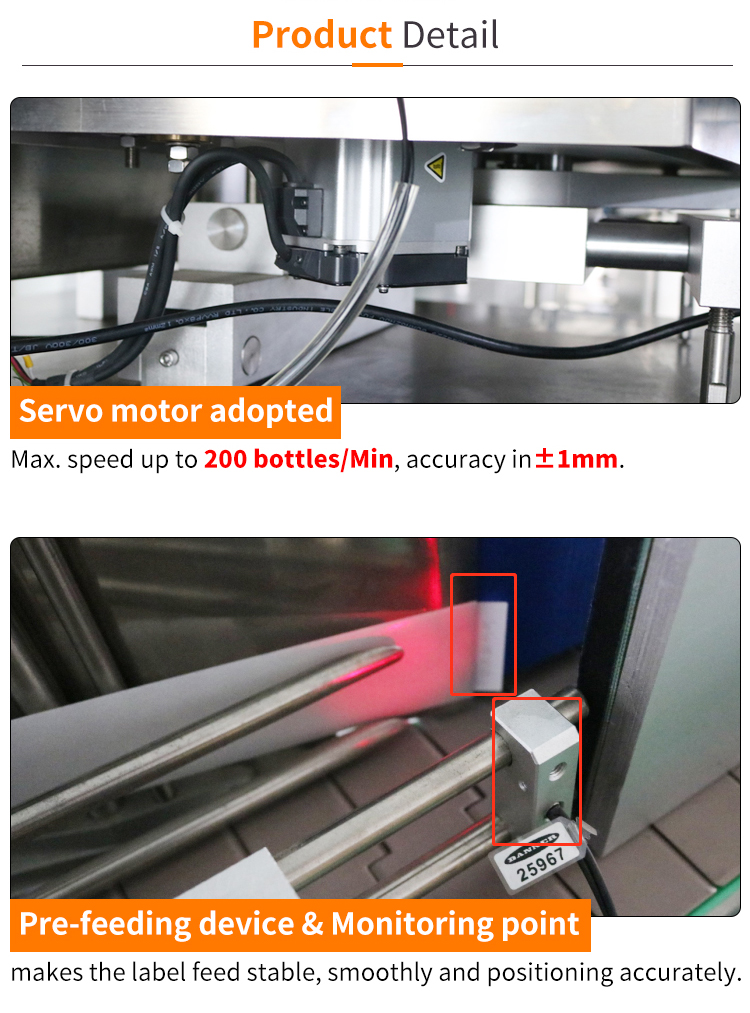

This labeling machine is equipped with the high accuracy servo motor, plus the setting of pre label material, the production accuracy is raised to 99.99% greatly.

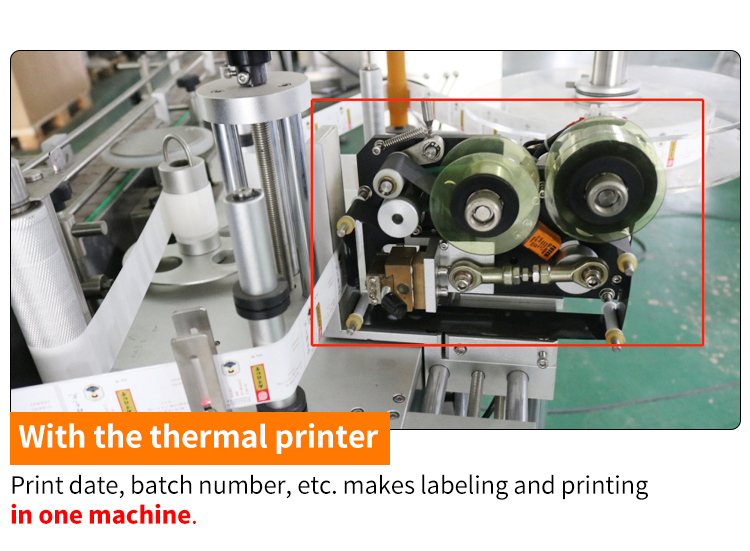

The labeling machine equipped with the thermal printing equipment, it can max print 4 lines of data completely according to your special needs, such as the production date and the bath number and etc. The handwriting effect is very fresh and does not fade.
Equipped with a number of the photoelectric eye detection units, the detection throughout the entire production labeling machine process. While ensuring the labeling production accuracy, the production efficiency is upper to from 150 to 200 bottles per minute, and the final quantity depends on the size and size of the bottles.
