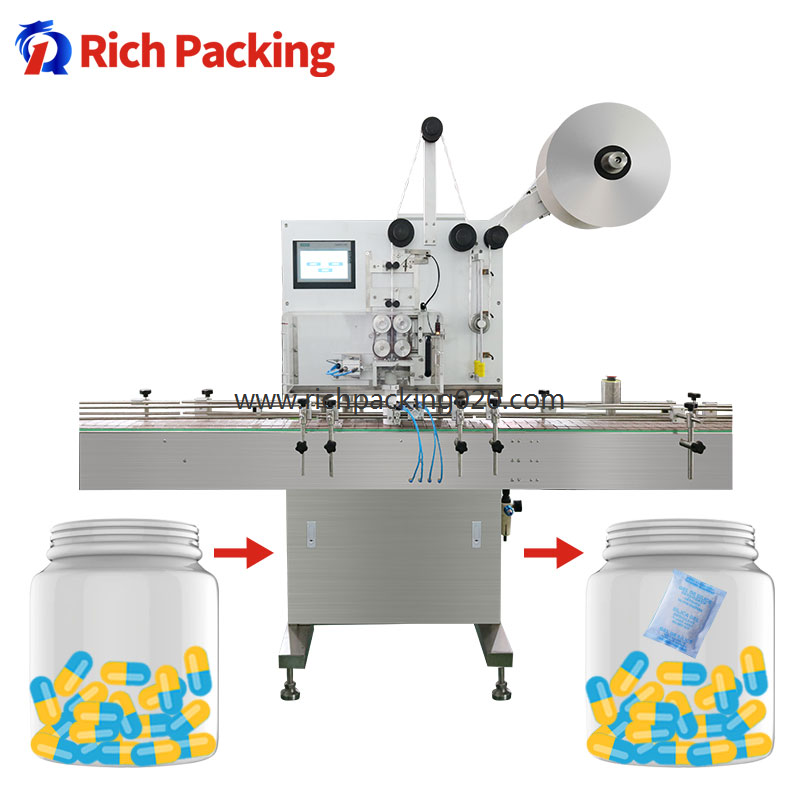

CE cGMP High Capacity 120Pcs/min Automatic Pharmaceutical Desiccant Inserter Counting Production Machine Line
Model | RQ-GZJ-600 |
Production Capacity(bottles/min) | 80-120 bottles/min |
Applicable bottle diameter | Φ30-Φ85mm |
Applicable bottle type | various round or square bottles |
Applicable bottle height | 30-145mm |
Applicable Desiccant | desiccant roll Φ300-Φ350; width 50-70mm; length 30-45mm (can be customized according to customer requirements) |
Power Supply | AC220V 50Hz |
Total Power | 1.5kw |
Outline Dim.(L×W×H)mm | 600*1400*1350mm |
air consumption | 55 L/min |
pressure intensity | 0.3-0.6Mpa |
Net weight of machine | 205kg |

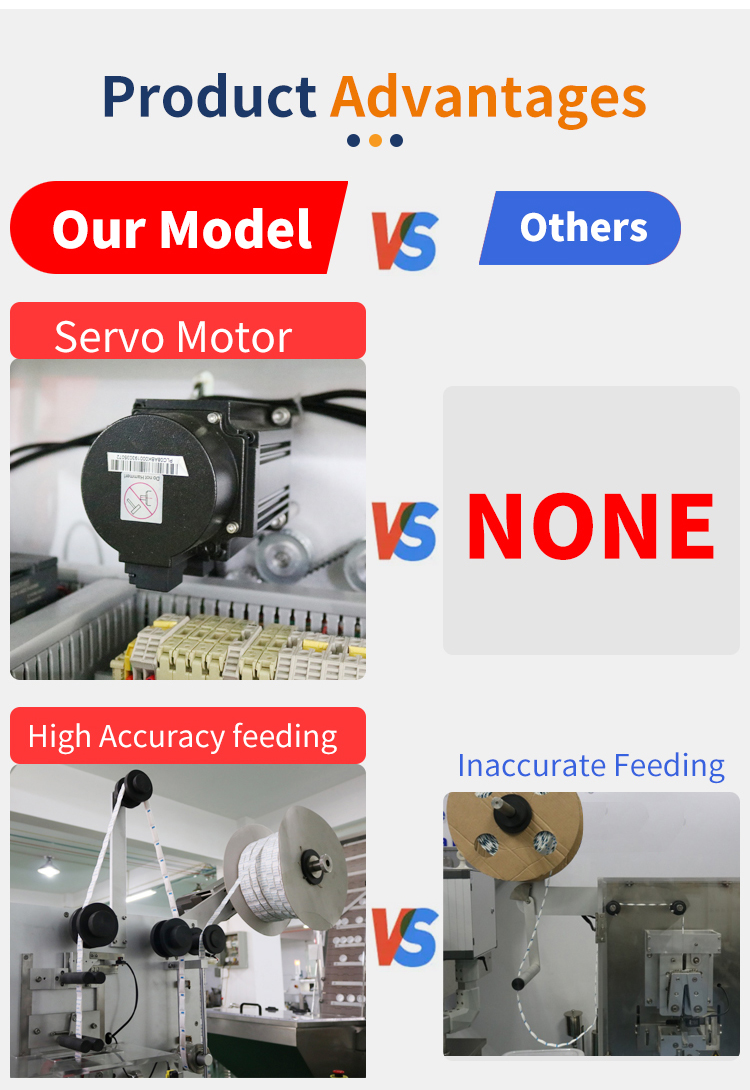

These Desiccant Inserter machines are different from any other ordinary machines, that directly use the high-precision servo motors of more international brands for the operation of adding materials. Combined with the stepping motor of the international brands, the high accuracy of adding materials is very good, that would be with the accuracy rate of more than 99.99 Percent.
Instead of using the detection principles of the ordinary machines, this GZJ600 use the latest technology to calculate the differences between the highest point and the lowest point of the material by the means of roller extrusion, so as to obtain the thickness of the packing material, and then set the pulling distance of the servo motor monitor.

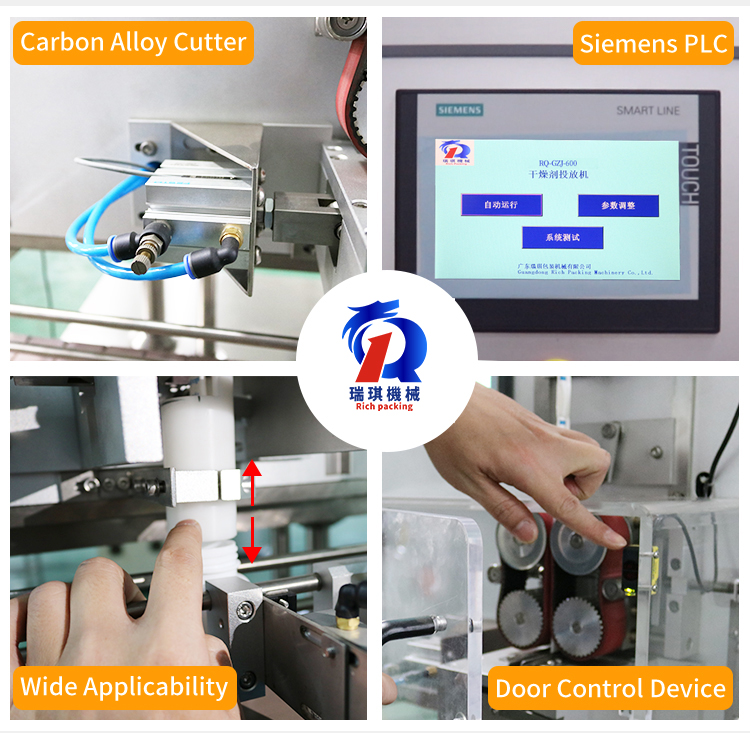

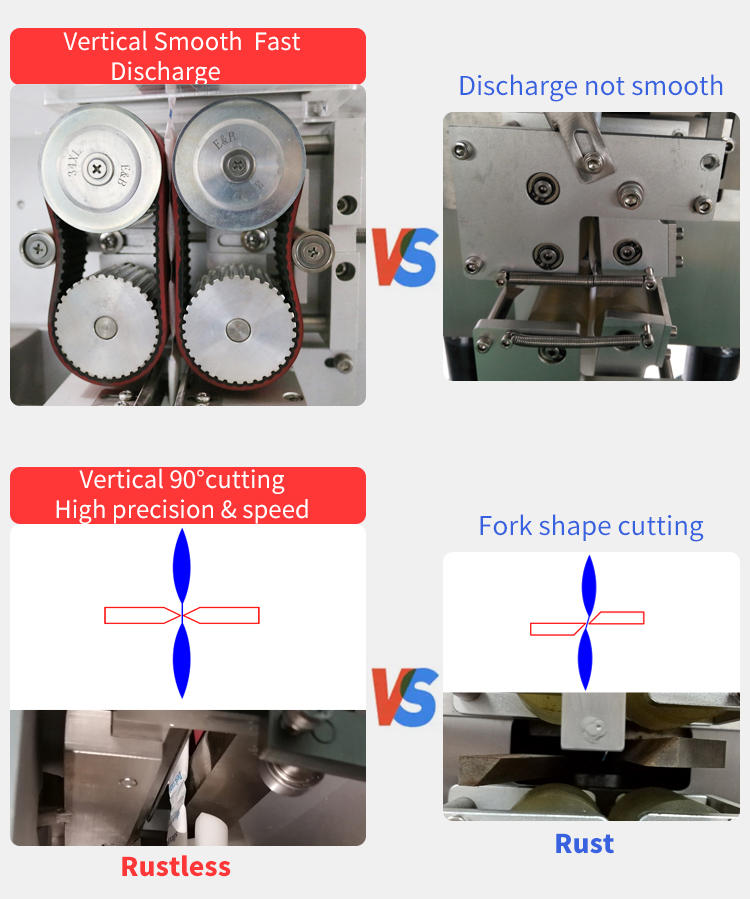

The cutting tool is made of the high-quality carbon steel with a cutting angle of 90. the Desiccant Inserter machines is more accurate and more faster than the previous scissors cutting.

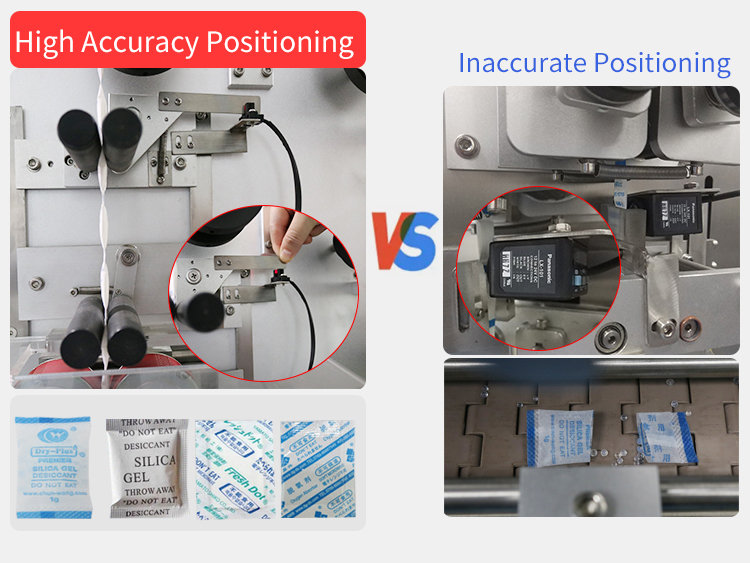

The Desiccant Inserter system rise up the traditional color code detection (inaccurate detection), so that the detection effects are better and the speed is faster, capacity upper to 120 pieces per minute.
