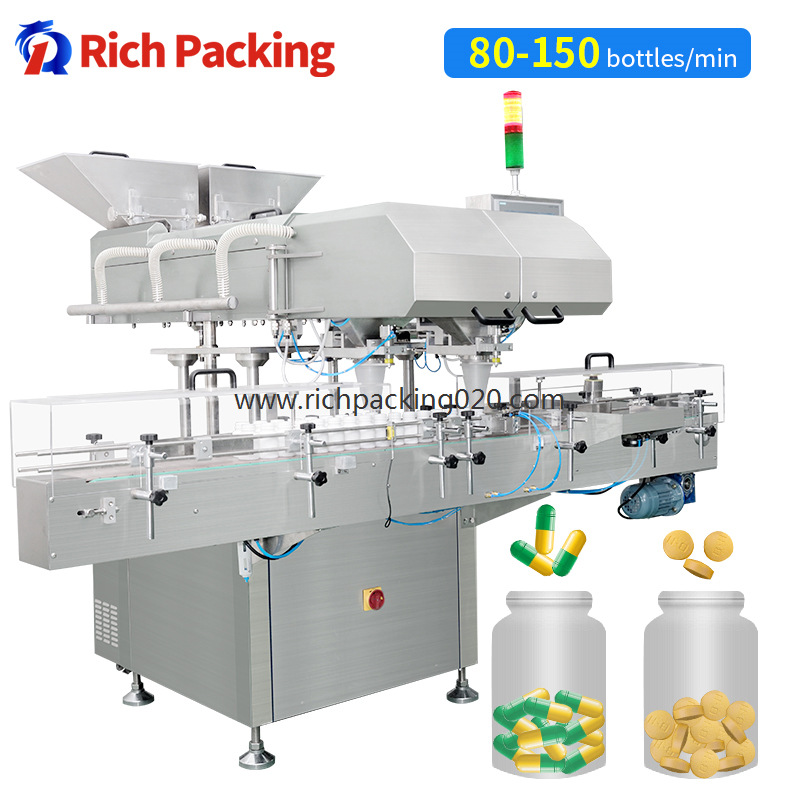

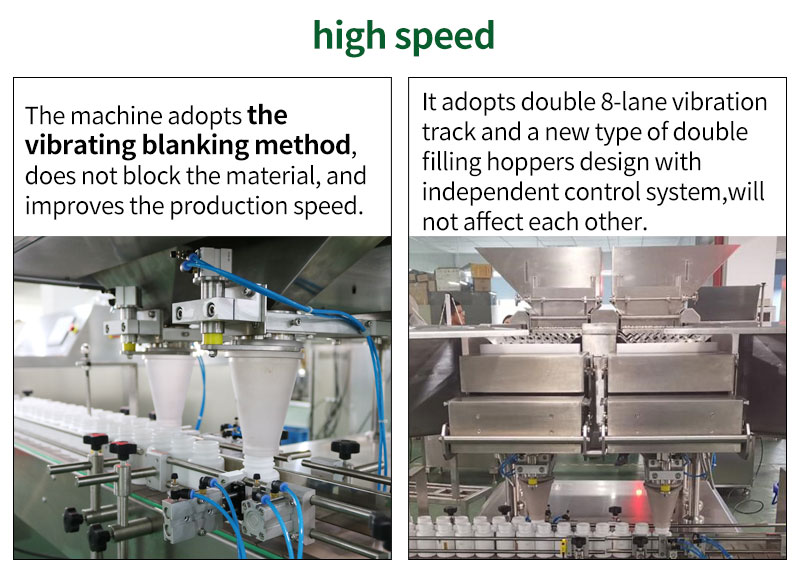

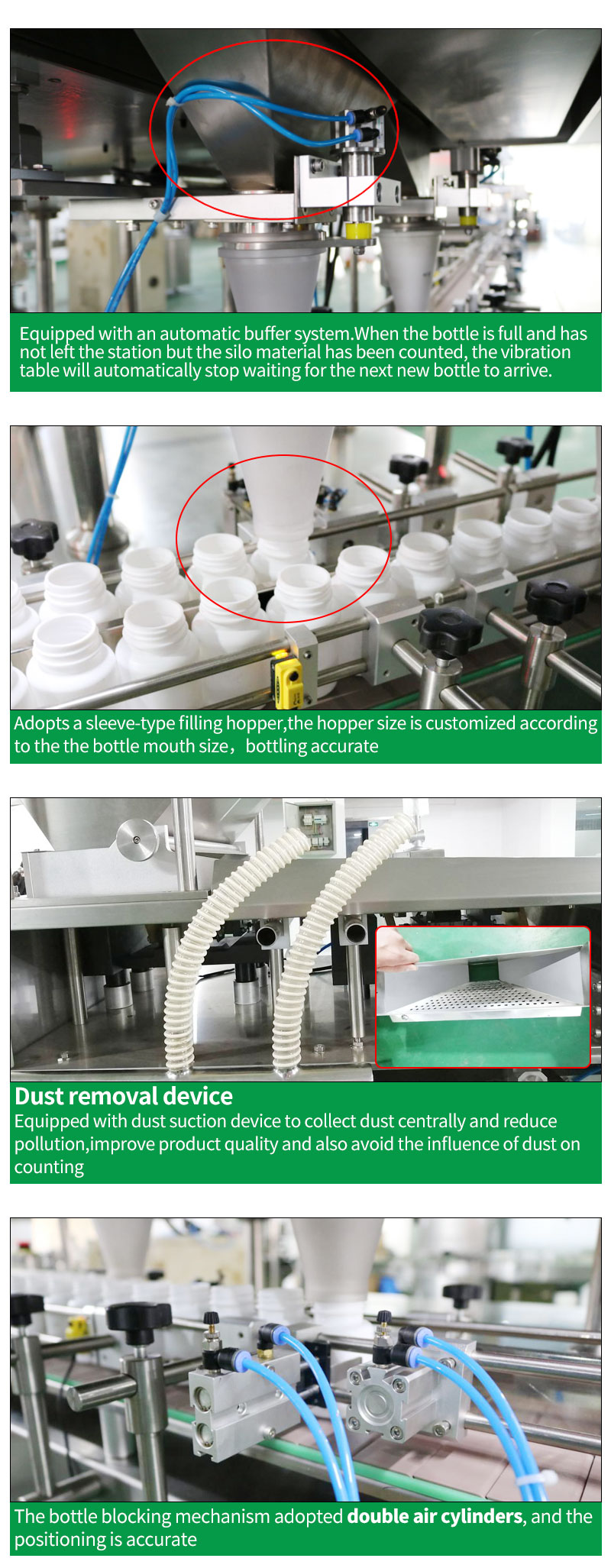

16 lane advanced version PLC automatic tablet capsule Counting machine is the seventh generation innovative product of our company. On the basis of the original technology, modular design of the vibrating trough, pneumatic pusher, and pneumatic continuous blanking mechanism. The counting photoelectric adopts one-to-one independent control, which has higher precision, faster speed and more stable operation.It can pack all kinds of tablets and capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) in the range of 3-25 mm.
Model | RQ-DSL-16H |
Vibration groove tracks | 16 lane |
Production capacity | 260000 ～ 460000 grains/h （70-130 bottle/min） |
Accuracy rate | ＞99.98% |
Filling range | 1～ 9999 grains |
Applicable target | Tablet:Φ3～25mm ,pill:Φ3～20mm, |
Applicable bottle type | Φ25～110mmround and square bottle, height 30-240mm |
Voltage | AC380V 3P 50/60HZ |
Power | 2.5KW |
Pressure | 0.45 ～ 0.7Mpa |
Air consumption | 200L/min |
Hopper capacity | 80L |
weight | 900kg |
Outline dim.(mm) | 1300*1950*1800mm |
