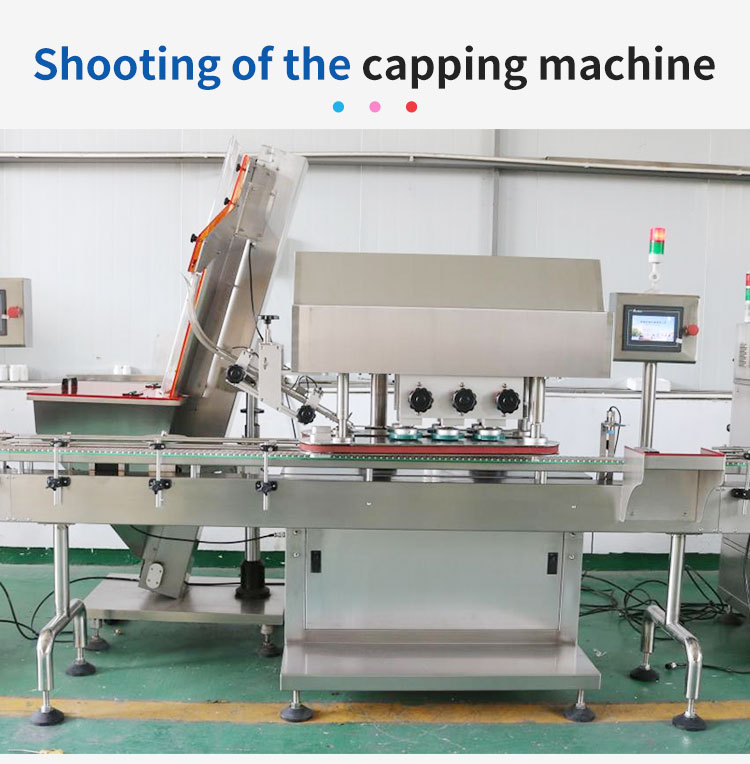

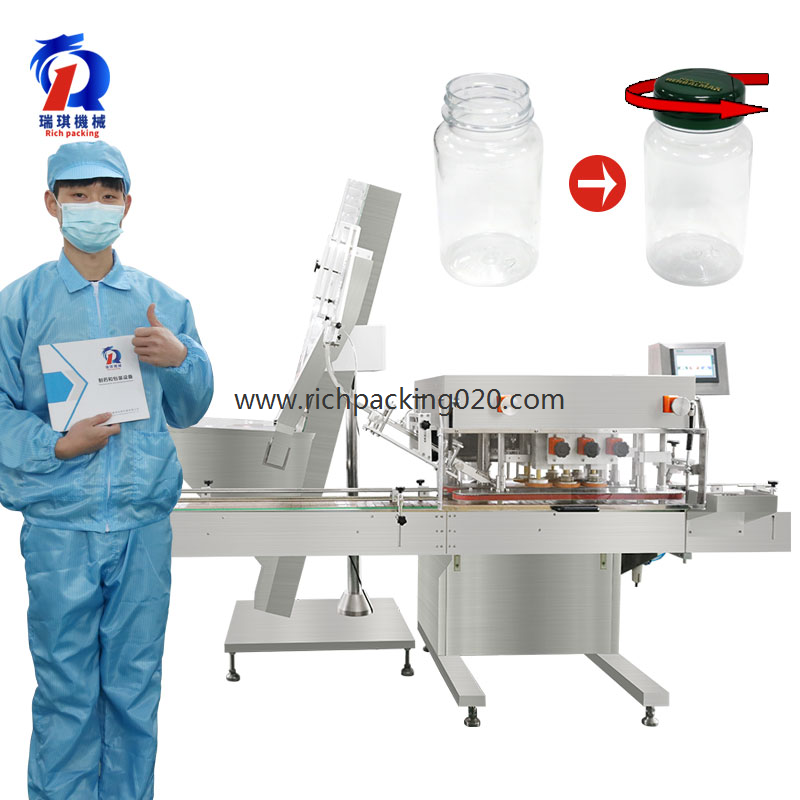

RQ-XG-120 is a auto high speed capping machines developed by Guangdong Richpacking in accordance with the development trend of the times.It is a pharmaceutical, chemical, electronic health product enterprise counting cans It is the ideal product installed, which meets the requirements of GMP.
Model of automatic high speed capping machine | RQ-XG-120 |
Production Capacity (bottles/min) | 20~120 |
Specification of suitable bottle | ￠30≤Diameter≤￠80mm |
Specification of suitable cap | ￠25≤Dia. of cap≤￠60mm |
Height of Bottle | ≤150mm |
Air Compressor of automatic capping machine | 0.6 Mpa |
Total Power of automatic capping machine | 1.8kw |
Power Supply of automatic capping machine | AC220V 1P 50/60HZ |
Outline Dim.(L×W×H)mm of automatic capping machine | 2350*1200*1850mm |
Weight of automatic capping machine | 600kg |
notice:When the tablet counting machine is working, it is strictly forbidden to touch the running parts (especially the heating part of the vertical seal and the horizontal seal) by hand to ensure the safety of people and the auto tablet counting machine
When a bottle without aluminum foil is detected, the air cylinder moves to push away the scrap bottle
