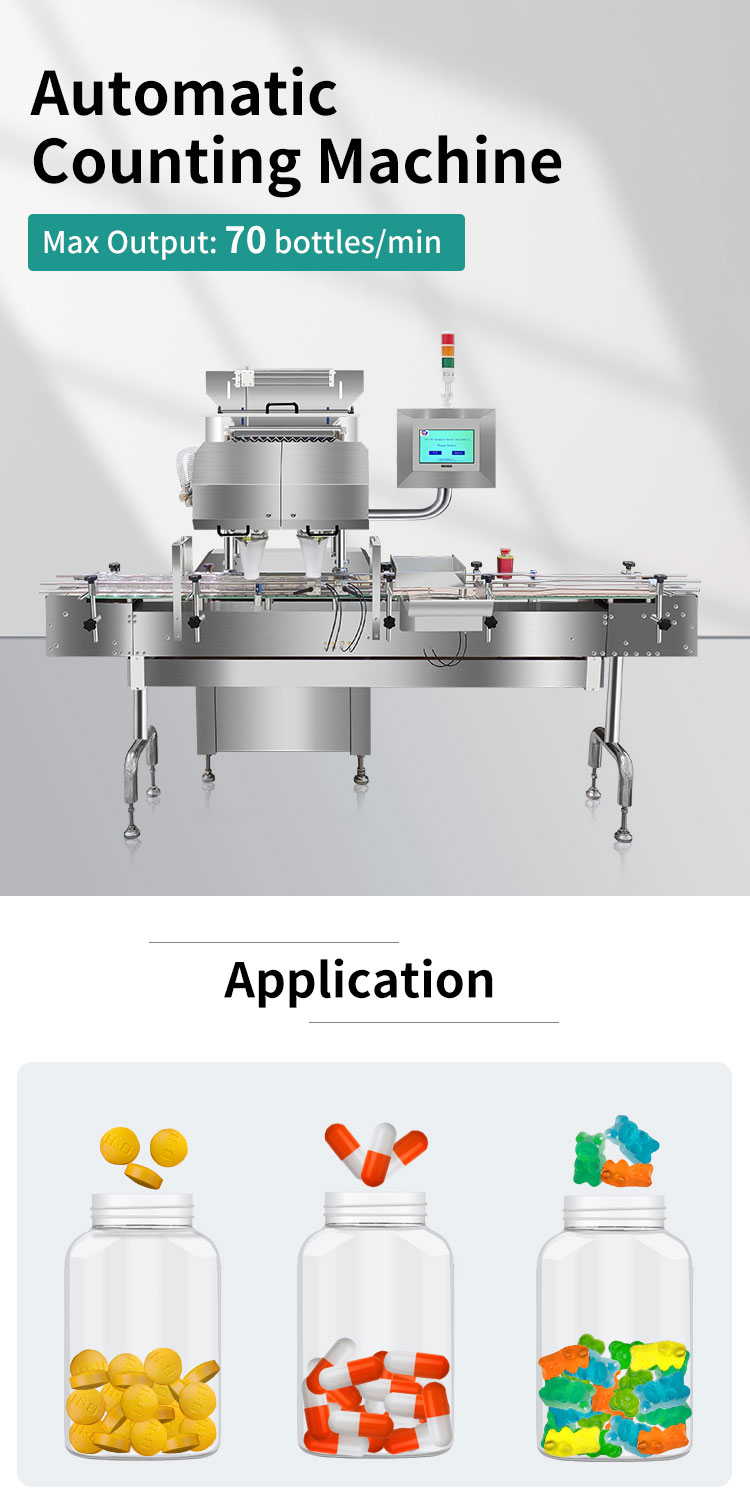

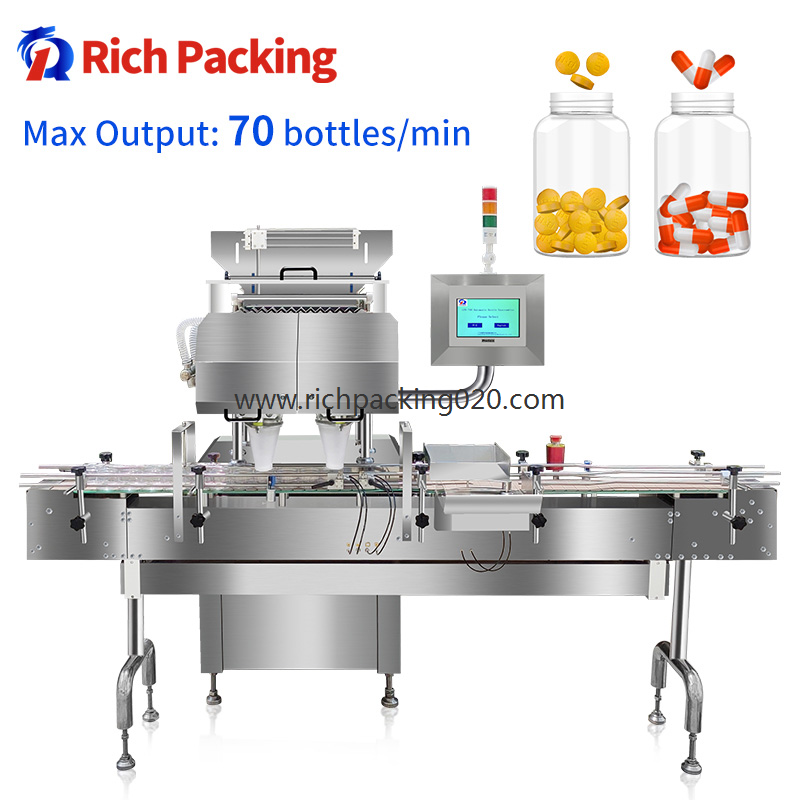

12D Automatic Bottling Capsule Tablet Counting Machine
Model | RQ-DSL-12D |
Vibration groove tracks | 12 lane |
Production capacity | 70 bottles per minute (according to the capacity of 60 capsules per bottle) |
Accuracy rate | ＞99.97% |
Filling range | 3 ～ 9999 grains |
Applicable target | Tablet:Φ3～25mm ,pill:Φ3～20mm, |
Voltage | AC380V 3P 50/60HZ |
Power | 1.8KW |
Weight | 540kg |
Outline dim.(mm) | 1200×1400×1800 mm（L*W*H） |
The tablet automatic bottling machine is our new generation of innovative capsule automatic bottling machine, which is anti high dust automatic counting and detection photoelectric. The tablet intelligent counting bottling machine can count pharmaceutical solids, capsules, tablets and health products. The tablet automatic bottling machine can automatically box, bottle and bag. The tablet counting bottling machine meets the production requirements of GMP.

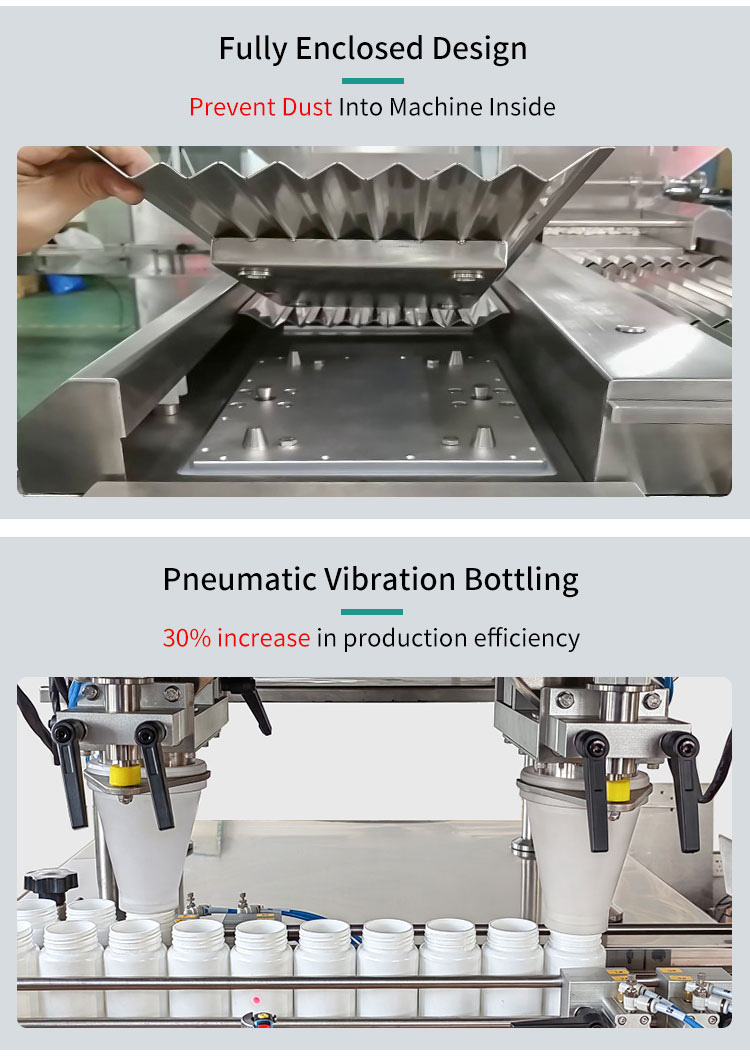

The capsule automatic counting machine adopts fully enclosed, powder free vibrating groove, no electromagnetic interference and signal short circuit, and the material contact parts are made of 316 stainless steel. The bottle changing device of the automatic tablet bottling machine adopts double cylinder positioning. The distance position of the system is confirmed twice by the system when changing bottles, so the bottle changing positioning is accurate and reliable.

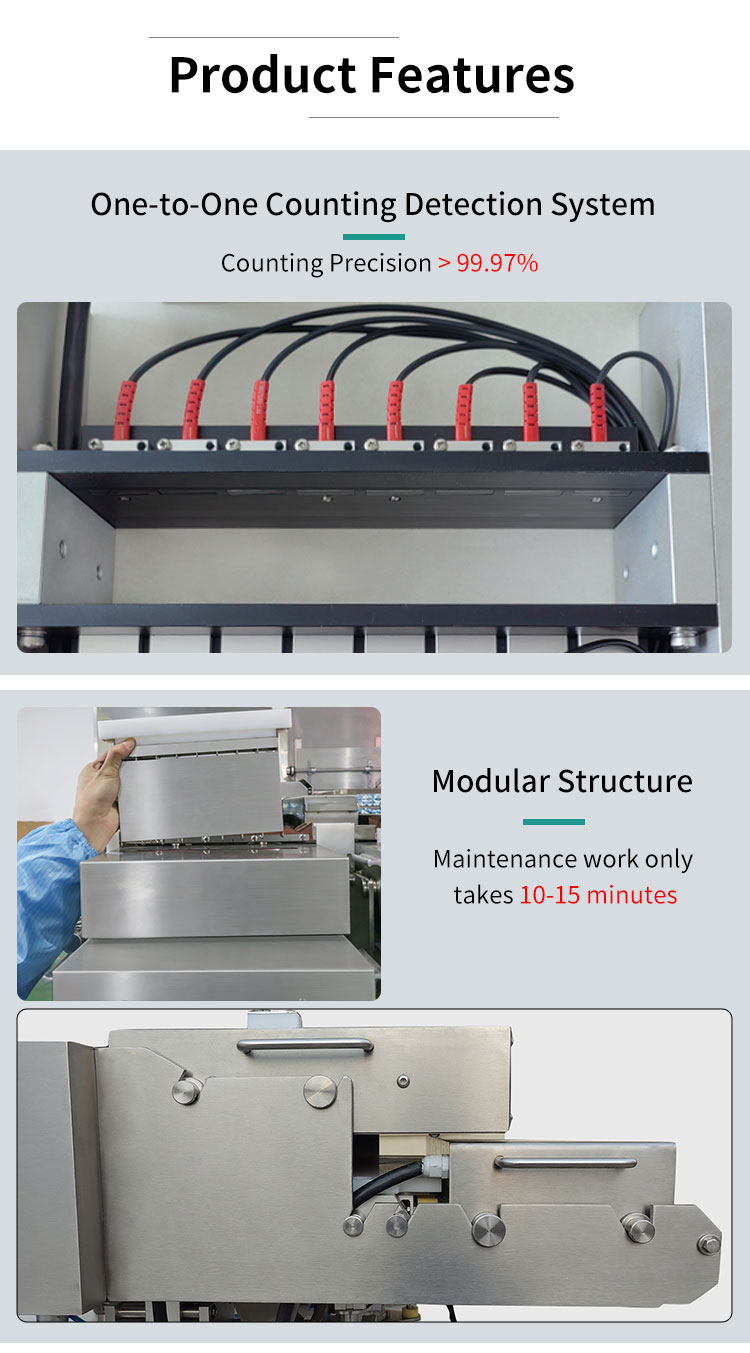

The precision of the capsule photoelectric counting machine is greater than 99.8, the production capacity can reach 70 bottles / minute, and continuous services such as on-site technician training and equipment maintenance can be provided. The customized socket type material dropping funnel of tablet counting bottling machine is made according to the actual parallel port size of the customer. It fits well without leaking materials, so as to prevent materials from leaking out of the bottle in the process of entering the bottle.
