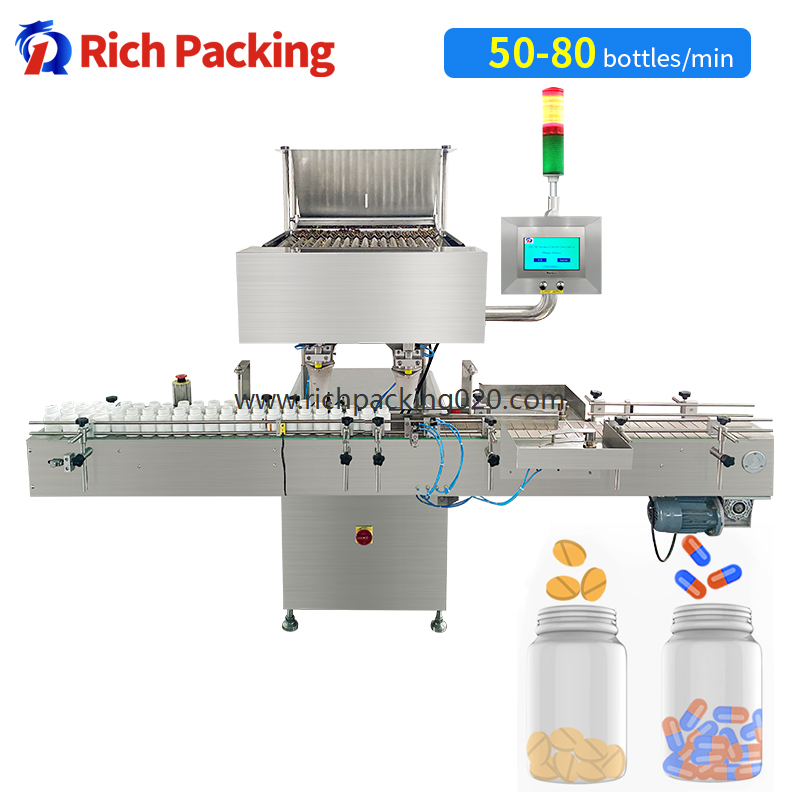

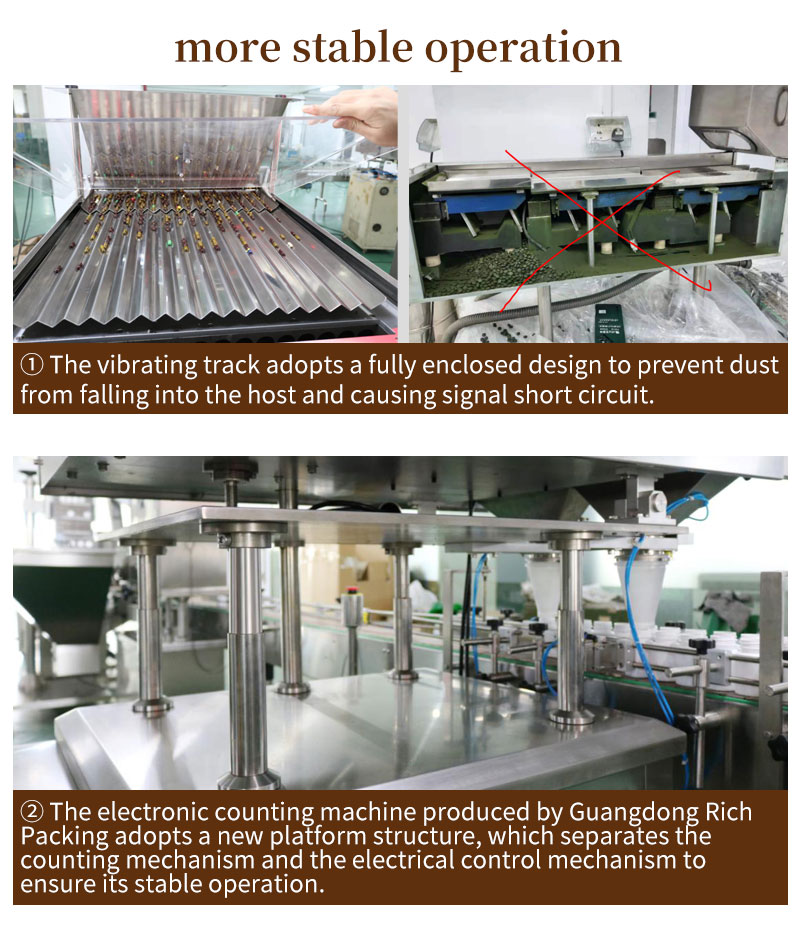

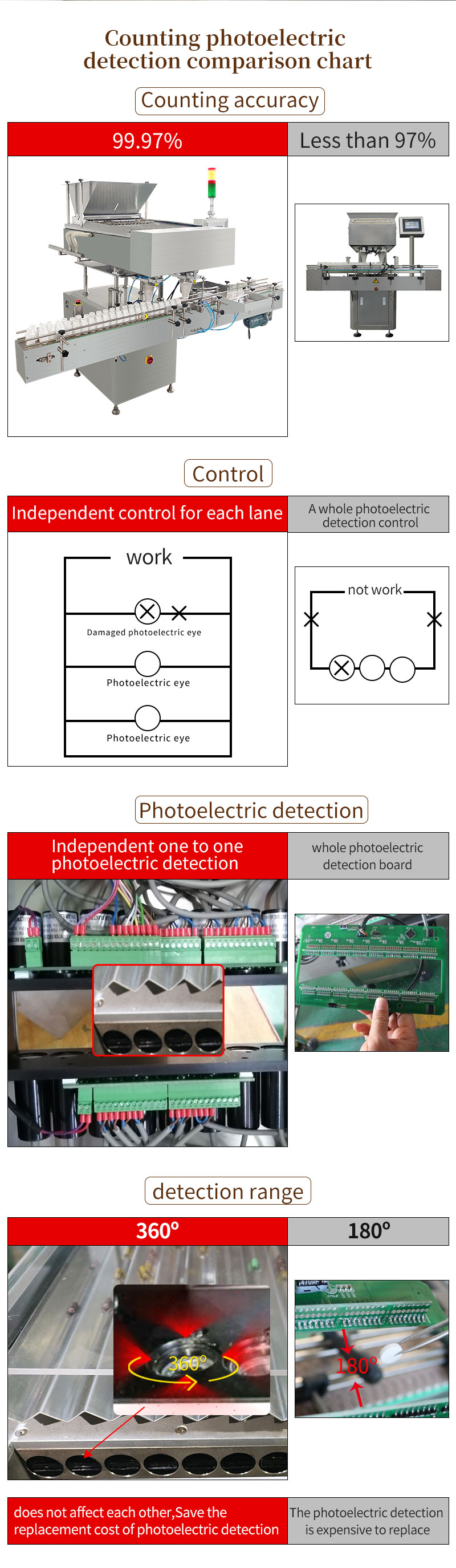

16 lane pharmaceutical intelligent PLC automatic tablet capsule pill counting machine is the sixth generation innovative product of our company. On the basis of the original technology, modular design of the vibrating trough, pneumatic pusher, and pneumatic continuous blanking mechanism. The counting photoelectric adopts one-to-one independent control, which has higher precision, faster speed and more stable operation.It can pack all kinds of tablets and capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) in the range of 3-25 mm.Meet the requirements of GMP, suitable for scientific research institutions, hospitals, small and medium-sized pharmaceutical factories, health products factory production packaging.
Model | RQ-DSL-16R |
vibration groove tracks | 16 lane |
Production capacity | 200000 ～ 360000 grains/h （50-100 bottle/min） |
accuracy rate | ＞99.97% |
Filling range | 3 ～ 9999 grains |
Applicable target | Tablet:Φ3～25mm ,pill:Φ3～20mm, |
Applicable bottle type | Φ25～75mm round and square bottle, height ≤240 mm |
voltage | AC380V 3P 50/60HZ |
power | 2.2KW |
pressure | 0.4 ～ 0.6Mpa |
Air consumption | 120L/min |
Hopper capacity | 45L |
weight | 650kg |
Outline dim.(mm) | 1200*1550*1750mm |
No. | Item | Specification | Qty. | Manufacturer |
1 | Count Photoelectric Sensor (Receive) | N24.5R | 16 | Lattine |
2 | Count Photoelectric Sensor (Emit) | N24.5E | 16 | Lattine |
3 | Valve Group | M4SB10-M5-6 | 2 | Japan CKD |
4 | Filtrate Regulator | FR500 | 1 | Taiwan SHAKO |
5 | PLC Group | FP∑-C32TH FPO-E16YT | 1 | Japan Panasonic |
6 | Touch Screen | GE4408W | 1 | Japan Pro-face |
7 | Cable Diffuse Sensor | QS18VN6DB | 3 | USA.BANNER |
8 | AC Contactor | GMC-9 | 1 | Korea LG |
9 | DC Contactor | GMD-9 | 3 | Korea LG |
10 | Thermal Overlood Relay | GTH-22/3 | 1 | Korea LG |
11 | Count Cylinder | SCPS2-1030 | 16 | Japan CKD |
12 | Position Cylinder | SDA20-10 | 4 | AIRTAC |
13 | Control Box | 131200000 | 1 | Germany MECANO |
14 | Directive Signal Light | AL6M-P | 3 | Japan IDEC |
15 | Button Switch | ABW310EG | 1 | Japan IDEC |
