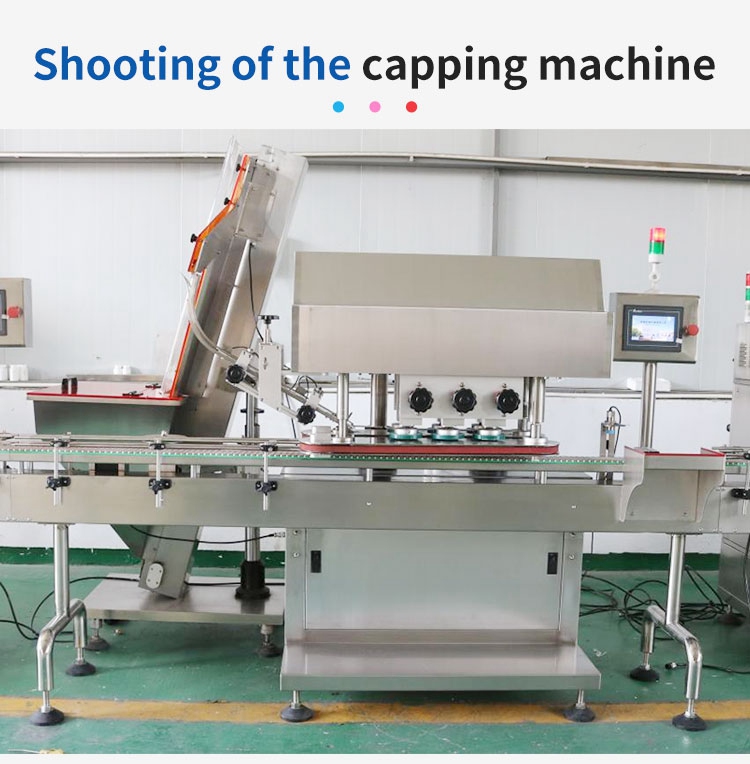

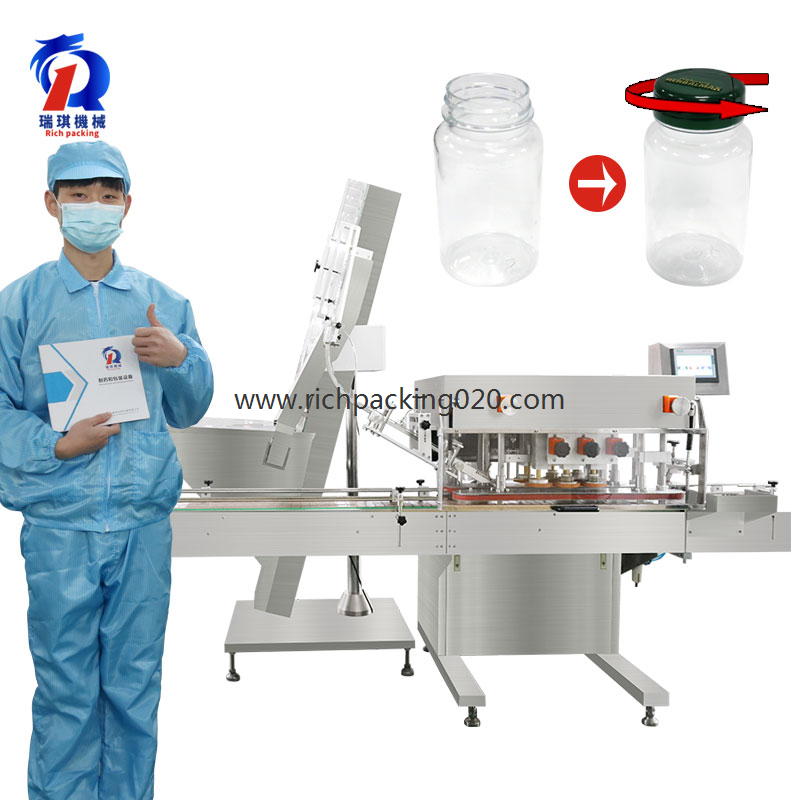

Model of automatic capping machine | RQ-XG-120 |
Production Capacity(bottles/min) | 20~120 |
Specification of round and square bottle | ￠30≤Diameter≤￠80mm |
Specification of cap | ￠25≤Dia. of cap≤￠60mm |
Height of round and square Bottle | ≤150mm |
Air Compressor of automatic capping machine | 0.6 Mpa |
Total Power of automatic capping machine | 1.8kw |
Power Supply of automatic capping machine | AC220V 1P 50/60HZ |
Outline Dim. of automatic capping machine | (L×W×H)mm 2350×1200×1850mm |
Weight of automatic capping machine | 600kg |

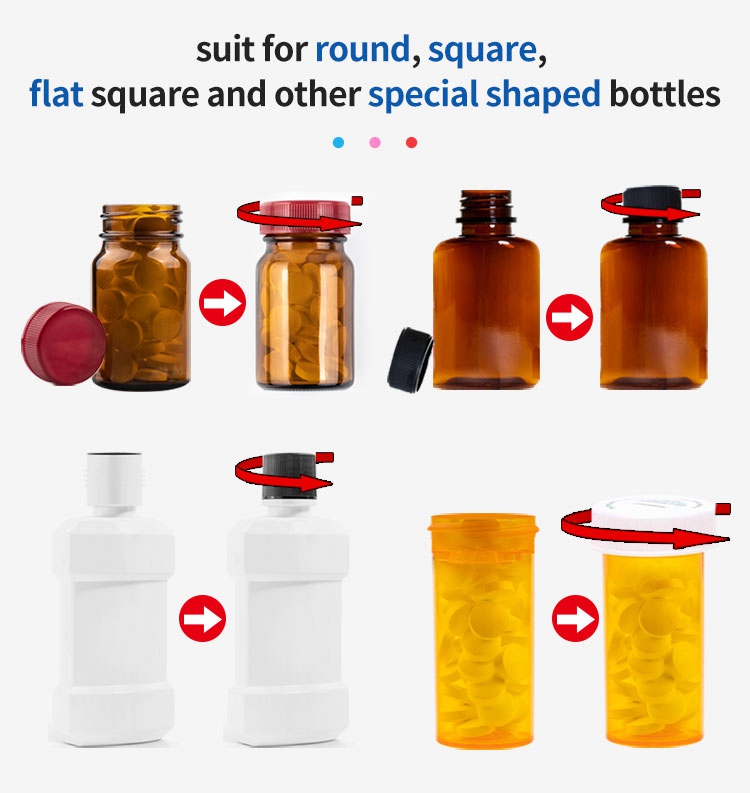

glass material bottles or plastic material bottles all are suitable
1.The RQ-XGJ-120 automatic capping machine has the dual functions of capping and twisting.

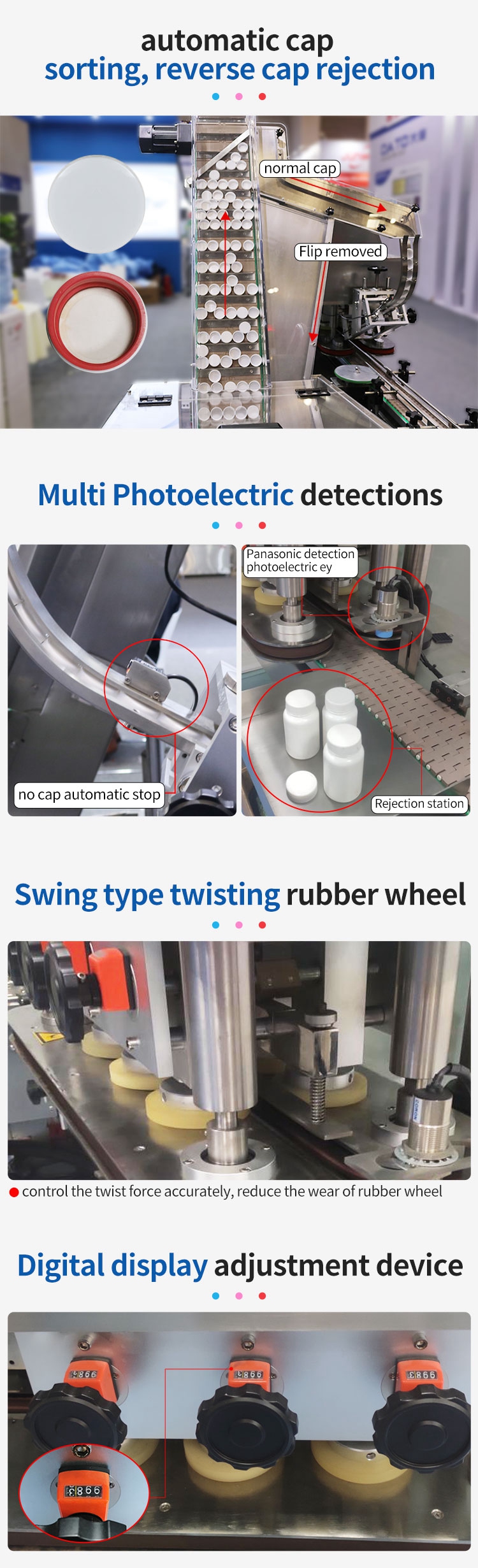

2.The tightness of capping and twisting mechanism of the RQ-XGJ-120 automatic capping machine can be adjusted, 100% ensure the bottle.Not damage and not scratch caps.
3.The RQ-XGJ-120 automatic capping machine only need 10 minutes to replace the spare parts for changing different size of bottle and cap.
4.The RQ-XGJ-120 automatic capping machine has Stop working and alarm function when self-diagnosis error.
5.Equipped with lifting motor, which can realize the main machine automatically lifting.
