Introduction

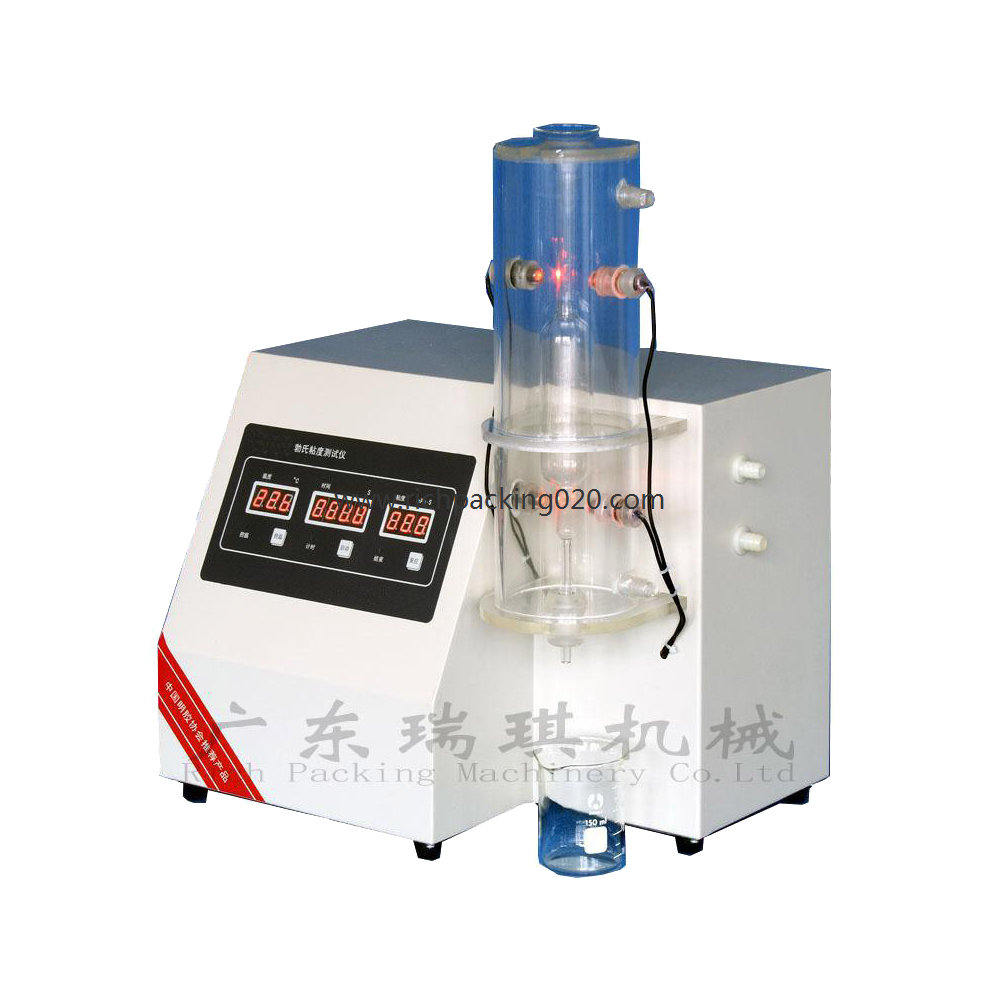

ND series of instruments are used for detecting Bloom viscosity of gelatin.
Application Standards
National standard (Food additive gelatin) GB6783-94
National standard (Hard gelatin capsule for medicine) GB13731-92
Vocation standard (Gelatin for medicine) QB2354-98
Corporate standard (Bloom viscosity tester) Q/12XQ0193-2004
Main Features
1.A MPU is used to control all operation in Bloom viscosity tester. It works in Bloom mode and the viscosity data is displayed by LED.
2.High temperature accuracy. Even temperature of the bath liquid.
3.Using capillary and precise photo-electricity transducer.
4.Automatically calculating time and viscosity.
5.Auto-timing, auto-alarming, auto-testing continually.
6.Automation: auto-test, auto-diagnose, auto-alarm.
7.Suitable for food gelatin, pharmaceutical gelatin and photographic gelatin.
Main Technical Parameters
Model | ND-2 |
Test range | (0~99.9) mPa·s |
Test accuracy | 0.2 mPa·s |
Temperature control | 60.0ºC |
Temperature control accuracy | ±0.1ºC |
Time test range | （0～999．9）s |
Time accuracy | ±0.1s |
Volume | 100ml |
Volume accuracy | ±0.5ml |
Recital distance | (152±2)mm |
Power | 220V/50Hz/600W |
Dimension | (400 x 300 x 510)mm³ |
Weight | 12kg |
