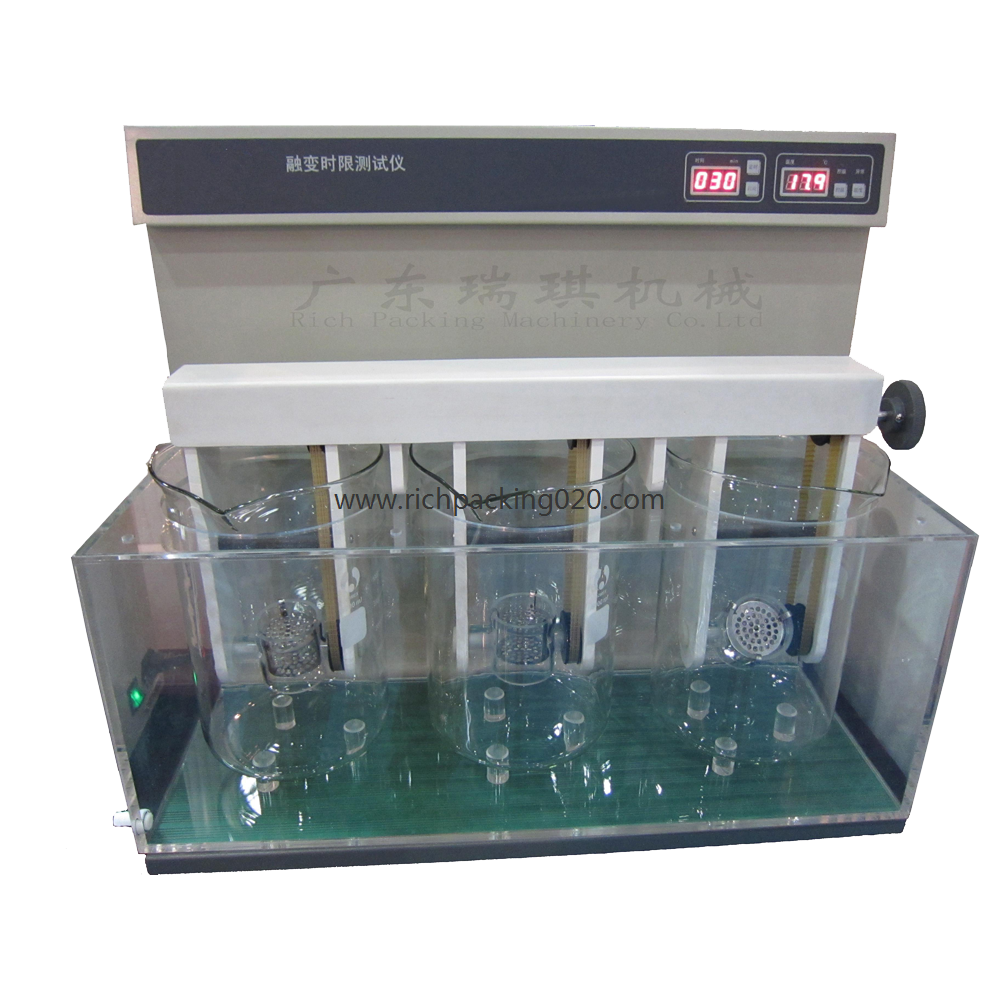

Introduction
It is used for testing thaw of the suppository etc.
Applicable Standard
National standard (Chinese codex)/2005/
Main Features
1.The three breakers run synchronously turned artificially.
2.Hyaline sleeve and net frame are made of stainless steel. The overturn machine is up-to date and it can be turned flexibly.
3.A MPU is used to automatically control the temperature.
4.The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
5.Temperature and time controlled automatically.
6.Parameters can be preset at anytime. The preset and real data can be displayed alternately in time.
7.Automation: auto-test, auto-diagnose, auto-alarm.
8.Indicating and forecasting when turning over at present time, alarming at fault.
Main Technical Parameters
Numbers of sleeve | 3 Units |
Size of hyaline sleeve | High 60mm diameter inner 52mm |
The net frame of stainless steel | Two pieces diameter 50mm, each 39 holes of 4 mm |
Turn frequency | 1time/10min |
Automatic time range | (10~900)min |
Timing accurancy | ±0.5min |
Temperature range | 20~45.0ºC |
Accuracy of controlling temperature | |
Capacity of beaker | 4L |
Power | 220V/50Hz/1000W |
Dimension | (660 x 380 x600)mm³ |
Weight | 25KG |
