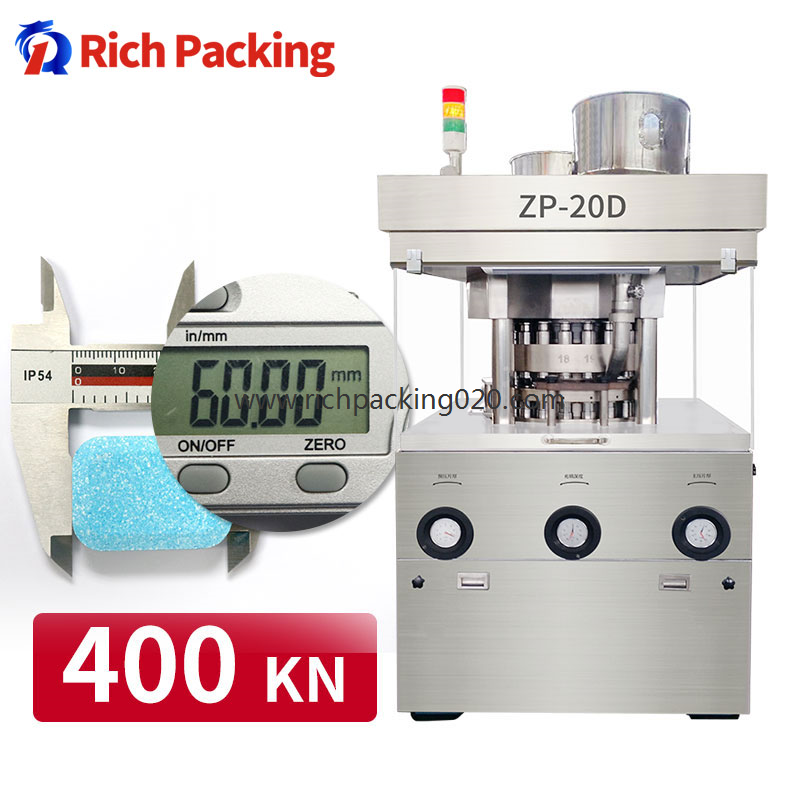

ZP 20D High Pressure Speed Automatic Rotary Tablet Press Machine For Large Diameter Tricolor Laundry Effervescent Tablets
  • ZP 20D High Pressure Speed Automatic Rotary Tablet Press Machine For Large Diameter Tricolor Laundry Effervescent Tablets
  • ZP 20D High Pressure Speed Automatic Rotary Tablet Press Machine For Large Diameter Tricolor Laundry Effervescent Tablets
  • ZP 20D High Pressure Speed Automatic Rotary Tablet Press Machine For Large Diameter Tricolor Laundry Effervescent Tablets
  • ZP 20D High Pressure Speed Automatic Rotary Tablet Press Machine For Large Diameter Tricolor Laundry Effervescent Tablets
  • PRODUCT DESCRIPTION
    • PRODUCT NAME:ZP 20D High Pressure Speed Automatic Rotary Tablet Press Machine For Large Diameter Tricolor Laundry Effervescent Tablets
    • VIDEO CONNECTION:
    • INTRODUCTION:

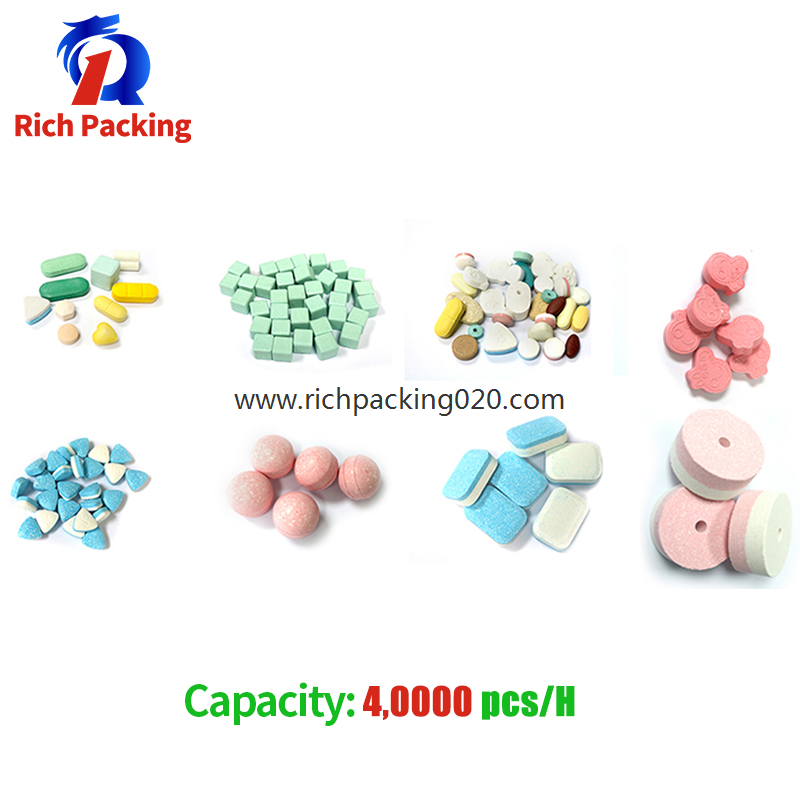

      Large diameter three color laundry effervescent tablet high-pressure zp20d high-speed automatic rotary tablet press is a machine that can work continuously for 7 days and 24 hours. It is suitable for producing and pressing large tablets, washing tablets, fish food, etc., and the production capacity can reach 30000 to 110000 pieces per hour. It is an ideal choice for large, medium and small production plants.
  • Details

  • ZP 20D High Pressure Speed Automatic Rotary Tablet Press Machine For Large Diameter Tricolor Laundry Effervescent Tablets

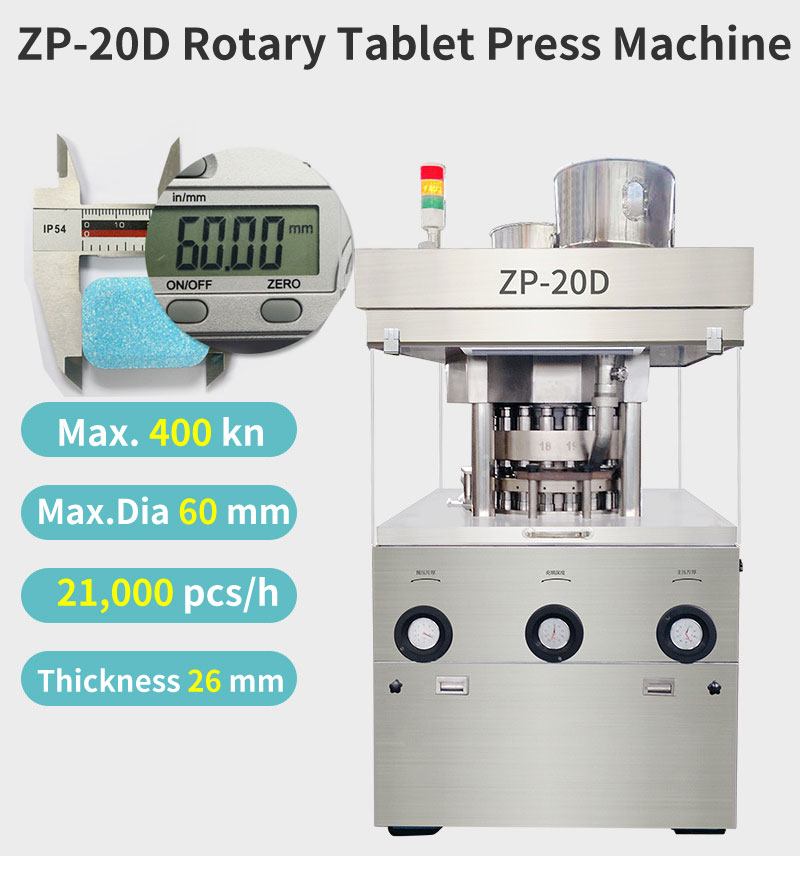

    Dies No.

    20set

    Max. Production Capacity

    21000 pcs/h

    Max. Pressure

    400KN

    Max. Dia. of Tablet

    60mm

    Max. Depth of Filling

    53mm

    Max. Thickness of Tablet

    26mm

    Dia. Of Middle Die

    Custom made according to customer requirements

    Length of Upper/Lower Punching Bar

    Custom made according to customer requirements

    Dia.of Upper/Lower Punching Bar

    Custom made according to customer requirements

    Working diameter of turntable

    560mm

    Rotary Speed

    532 r/min

    Motor

    18.5kw

    Weight of Machine

    4100kg

    Outline Dim.

    1750x1250x2250mm


    What is a big scale tablet press equipment? This is a kind of powder and pellets of various mesh sizes and sizes that are compressed into kinds of tablets or fish food charcoal blocks of various shapes and sizes through the rotating turntable. The biggest difference between our rotary tablet press and the other small size machines is that the rotary turntable in ZP 20D can bring larger and more stable tablet products, while the other single punch or the 579 small tablet presses can only provide very small output.

    these are the advantages of the large output mentioned above that the rotary tablet press manufactured by RICH PACKING is very suitable for the large-scale tablet, the carbon block and the fish food manufacturers. In one hour output covers the production needs of 30,000 to 110,000 pieces. As long as you are not the small size family workshop, whether you are a small, medium, or large production factory or company, it is your best choice to find RICH PACKING about the machine and the output plan and to purchase the machine.

    We provide the uninterrupted pre-sale service and the after-sales service 24 hours a day, 365 days in a year. We have set up the special after-sales service points in major cities in the Asia, Europe, the North America and the South America. When you need the on-site service of the rotary tablet press, our service engineer will arrive at the your site within 72 hours, we are looking forward to you to purchase our RICH PACKING machine.
