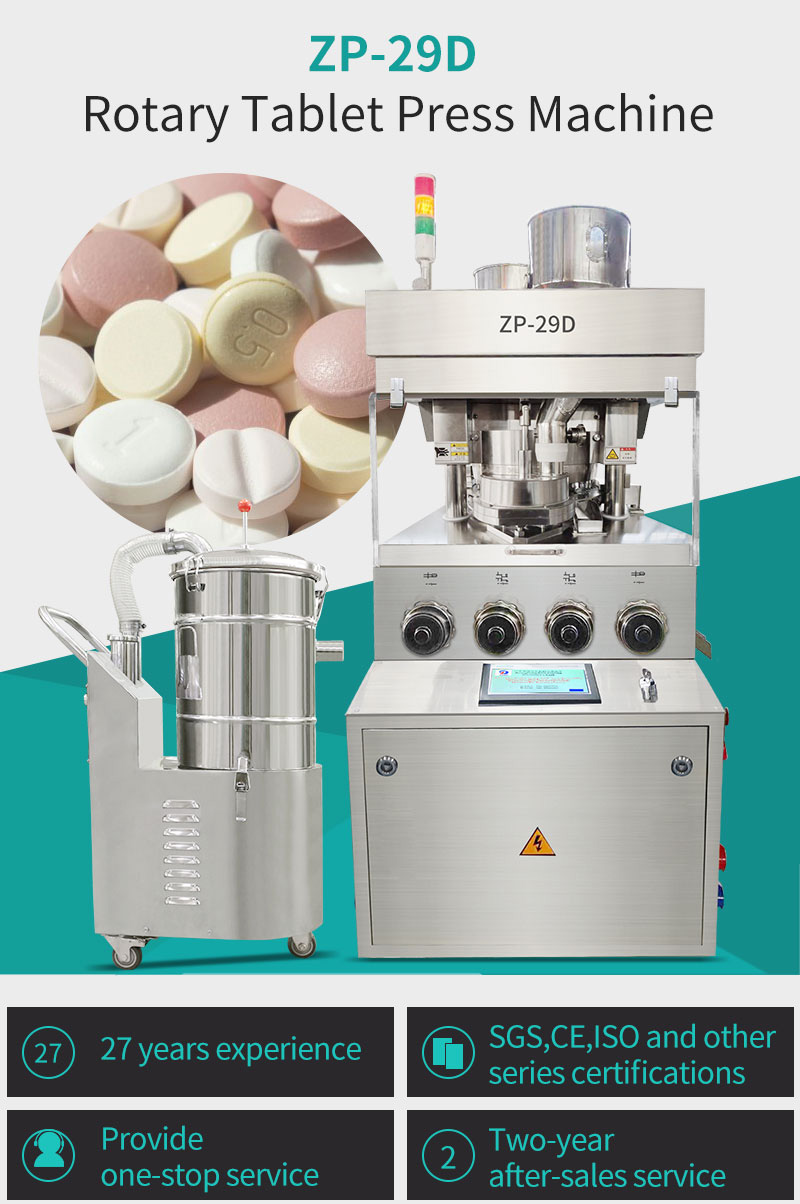

ZP 29D Pharmaceutical Medicine Powder Pellet Automatic Rotary Tablet Press Machine Manufacture
Model | ZP-29D |
Max. Production Capacity | 75000pcs/h |
Applicable material | Powder,granule |
Applicable tablet types | Round tablets, special-shaped tablets, double color and annular tablet. |
Max. pressure | 100KN |
Max. tablet diameter | 24mm |
Max.Thickness of Tablet | 12mm |
Main material | The main body adopts stainless steel 304,the mould is made of GCR15 material |
Digital display adjustment | Filling depth, pressure adjustment digitization |
Power supply | 380/220V/50Hz |
Power | 5.5kw |
Weight | 1600kg |
Outline dim. | 1040*910*1690mm |
Packing/size | 1340×1100×1960mm (standard export wooden case) |
Warranty | 2 year |
Method of Warranty | Remote telephone and video guidance or home service according to customer requirements |
Time of delivery | Shipped in 15 days after payment |
Payment term | L/C,T/T,Western Union |
Port of loading | Guangzhou or Shanghai |

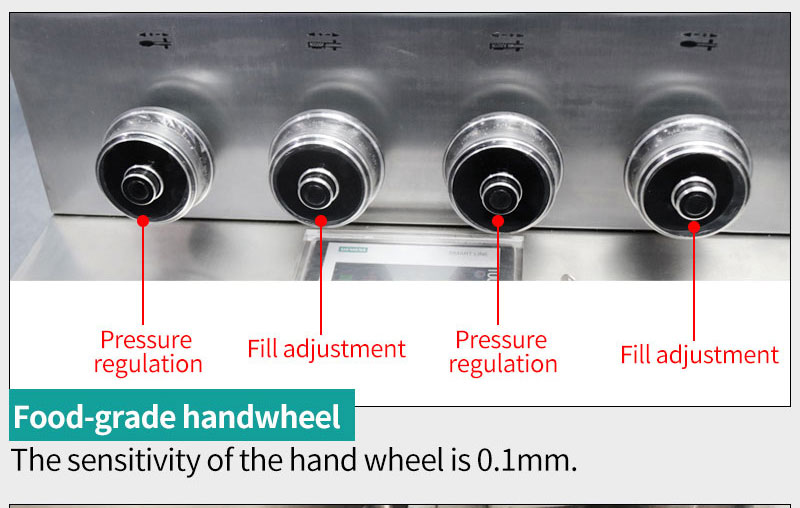

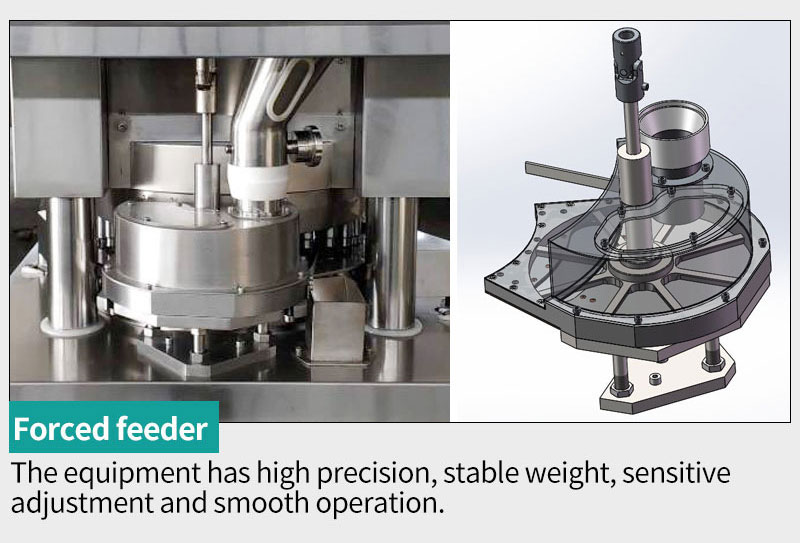

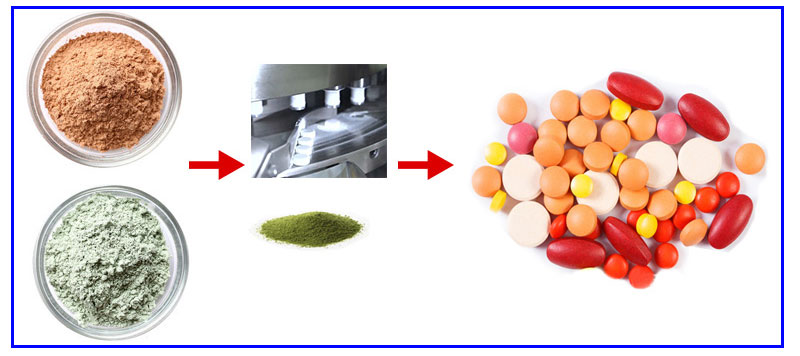

Zp29d automatic rotary tablet press with 100 kn uses double pressing mode, which can be used to press medicinal powder and particles. It is the first choice in the production industry (chemical industry, food, pharmaceutical industry, electronics, etc.). This rotary pharmaceutical powder tablet press 29 with forced feeding device has high feeding accuracy, the scale can be accurate to one tenth of a millimeter, and can be adjusted by rotating the hand wheel.
The 29d automatic tablet pressing machine developed for medicinal granular powder has large tablet capacity and can be used for pressing 24mm different tablets (including ring tablets, special-shaped tablets, two-color tablets and common round tablets). This high-speed rotary tablet press can be used for tablet pressing of some difficult to form materials.
The high-speed tablet press 29d, which realizes the double tablet pressing method and meets the GMP requirements, can produce 75000 tablets per hour. It is a machine that can bring efficient tablet production to enterprises. The developed medicinal zp29 rotary automatic tablet press using austenitic metal has high intelligence, can automatically detect overload, timely sound and remind through spring pressure and alarm lamp, and automatically start and stop. The tablet press 29d, which can fully protect molds and equipment, is made of stainless steel. It is a product without oil pollution and adopts intelligent lubrication system.
