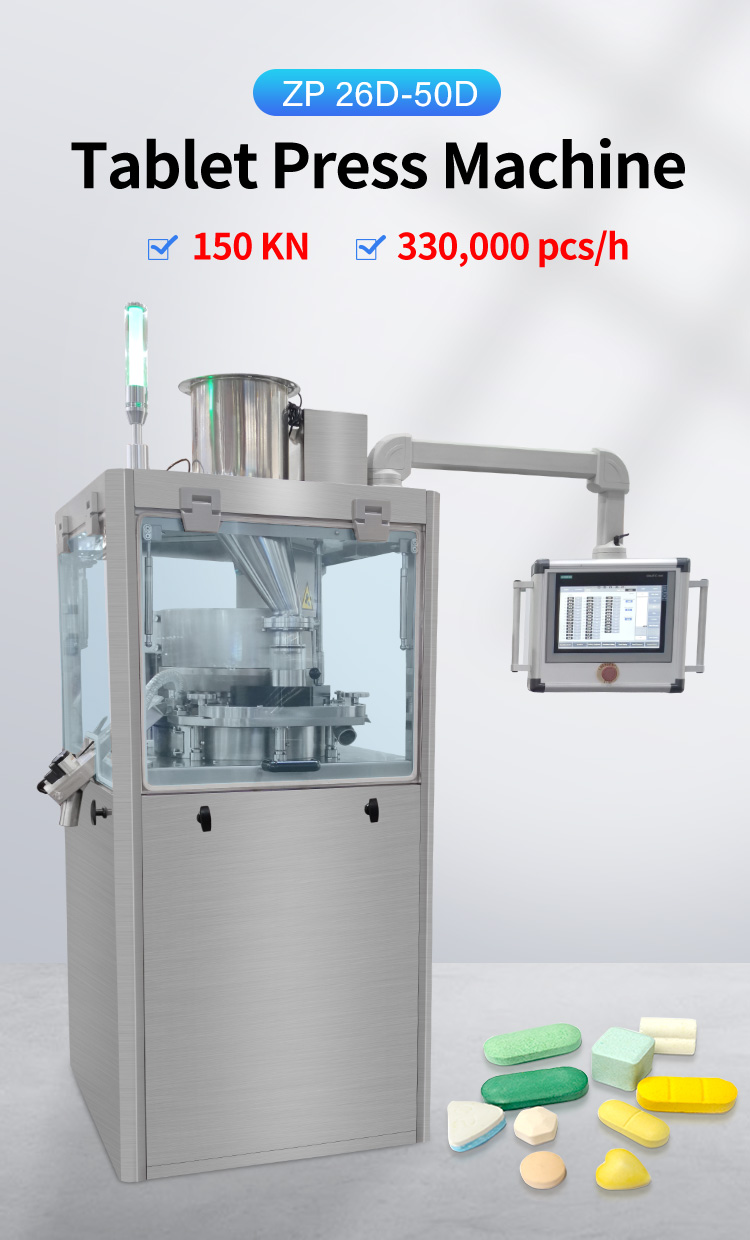

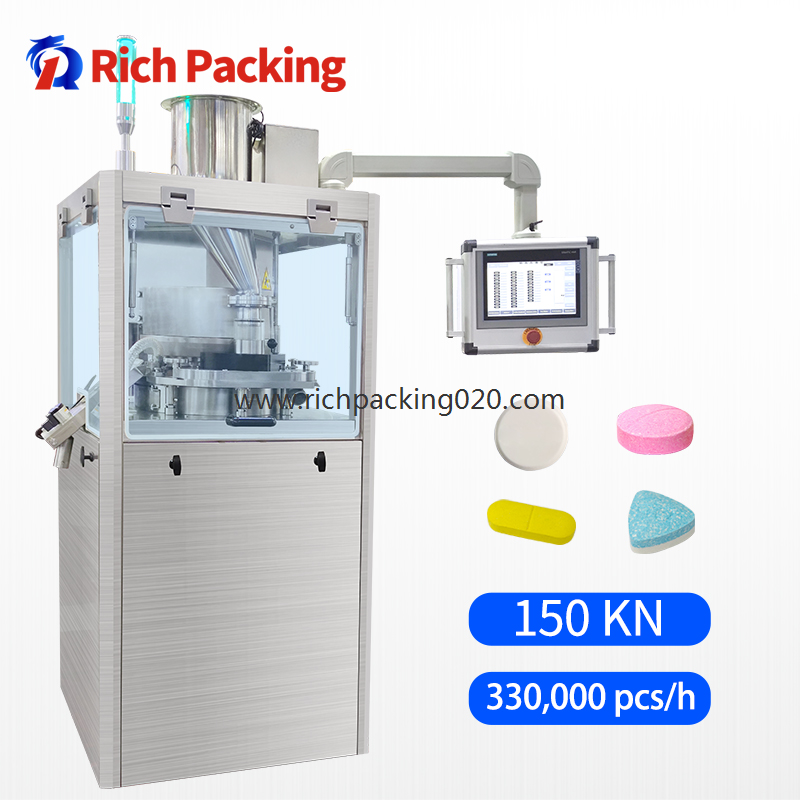

ZP 26D-50D High Capacity Speed Automatic Pharmaceutical Rotary Pressing Pill Tablet Press Machine
Model | ZP-26D | ZP-32D | ZP-40D | ZP-50D |
Dies No. | 26 | 32 | 40 | 50 |
Max. Pressure | 150kn，16kn | 150kn，16kn | 150kn，16kn | 150kn，16kn |

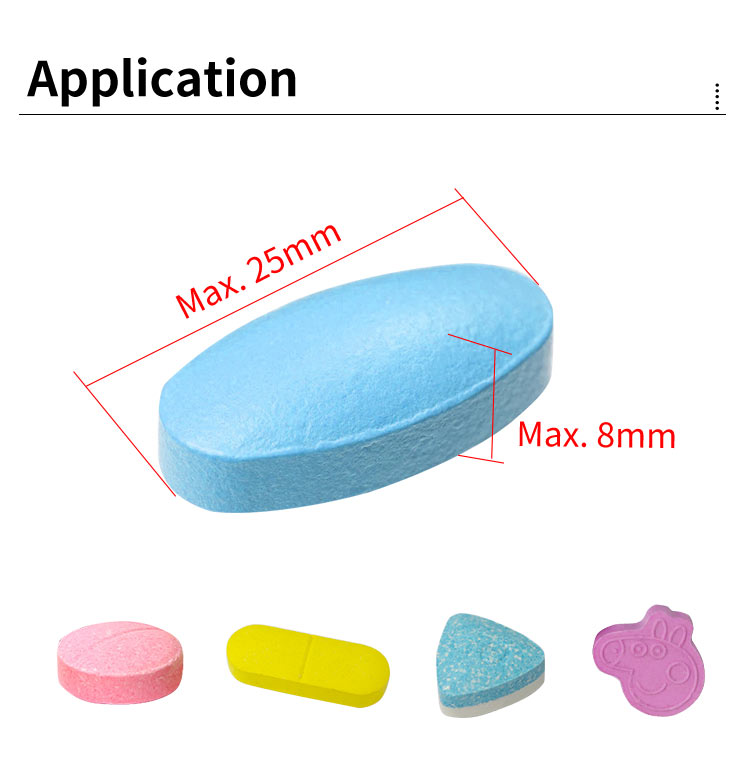

Max. Dia. of Tablet | 25mm | 16mm | 13mm | 10mm |
Max. Depth of Filling | 20mm | 16mm | 16mm | 16mm |
Max.Thickness of Tablet | 1-8mm | |||
Rotary Speed | 10-110r/min | 10-110 r/min | 10-110 r/min | 10-110 r/min |
Max. Production Capacity | 170000 t/h | 210000 t/h | 260000 t/h | 330000t/h |
Power | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
voltage | 380 220V/50Hz | 380 220V/50Hz | 380 220V/50Hz | 380 220V/50Hz |
size | 820×1100×1750 mm | 820×1100×1750 mm | 820×1100×1750 mm | 820×1100×1750 mm |
Weight | 1660kg | 1660kg | 1660kg | 1660kg |
In the customized demands of our RICH PACKING company's past customers, the diversified requirements for the ZP26/50D making tablet press machine rotary automatic structure are mainly reflected in the following aspects:
These customize requires the design and the transformation of the tablets making output structure of the machinery tablet pills press to achieve the different requirements.
In terms of tableting molds’ protection, some are required to have a die broken protection structure, and some require power-off automatic protection when the chamber tablet door is opened suddenly.
The die broken protection structure means that when the dies of the press tablet machine high speed suddenly breaks in an unexpected situation, the die broken protection system responds very quickly, and the machinery automatically stops quickly to prevent the occurrence of the safety accidents and eliminate the hidden dangers in the buds.
In terms of automatic running control, the automatic operating system and the host of most high quality pill tablet presses are integrated, and some requires that the operating system is independent and can be controlled remotely. The design and the transform the electrical operating system according to the customer’s demands, the controlling system and the electrical independent cabinet are connected together by a cable, so that the operation control is made.
