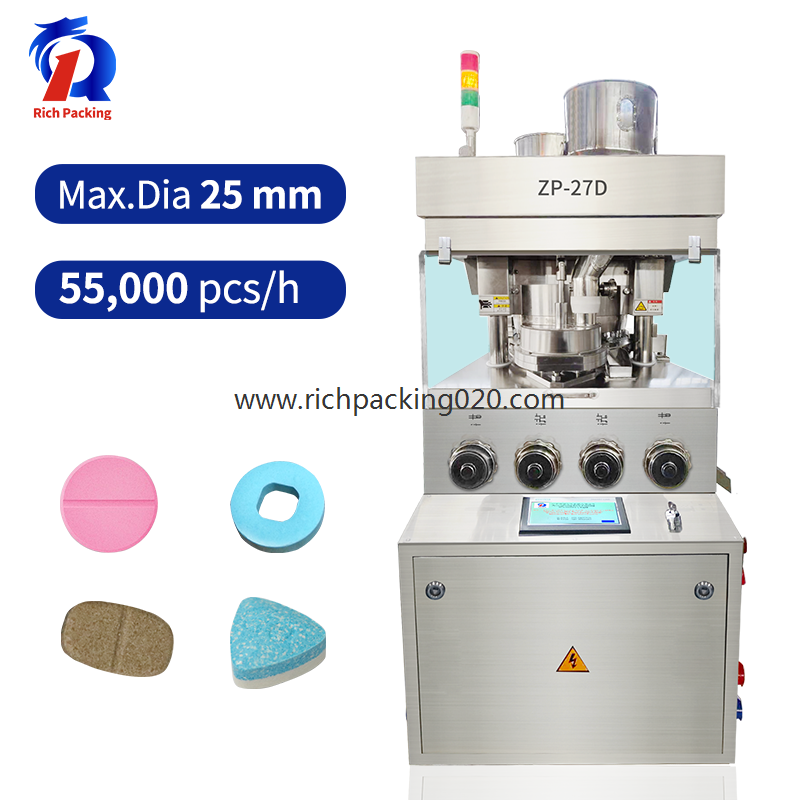

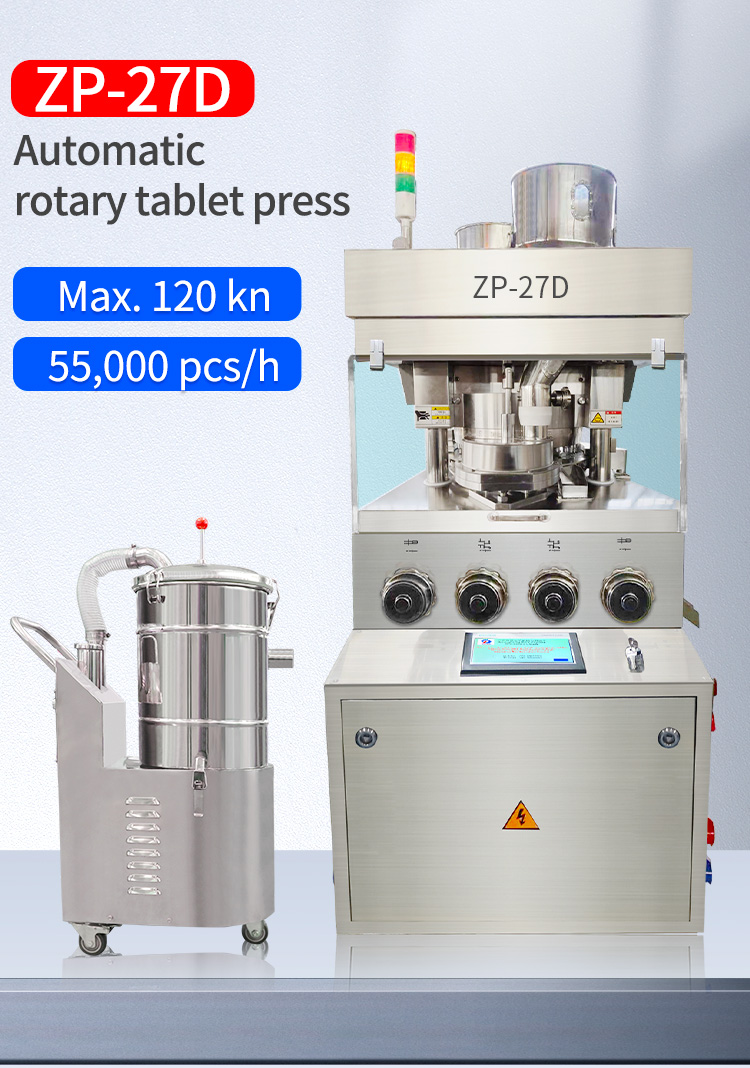

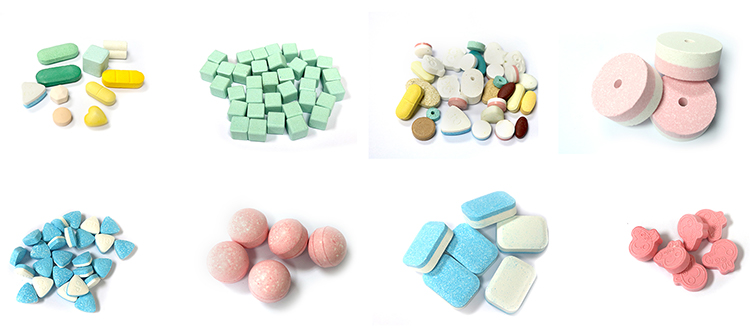

ZP-27D is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet.
Dies No. | 27 set |
Max. Production Capacity | 55000 pcs/h |
Max. Pressure | 120KN |
Max. Dia. of Tablet | 25mm |
Max. Depth of Filling | 35mm |
Max. Thickness of Tablet | 17mm |
Dia. Of Middle Die | Ф38.1mm |
Length of Upper/Lower Punching Bar | 136.4mm/153.4mm |
Dia.of Upper/Lower Punching Bar | Ф25.4mm |
Rotary Speed | 7～17 r/min |
Motor | 7.5kw |
Weight of Machine | 1600kg |
Outline Dim. | 1040×910×1690mm |
Packing Size | 1340×1100×1960mm |
Packing size of Dust Collector | 960×620×1460 mm |
