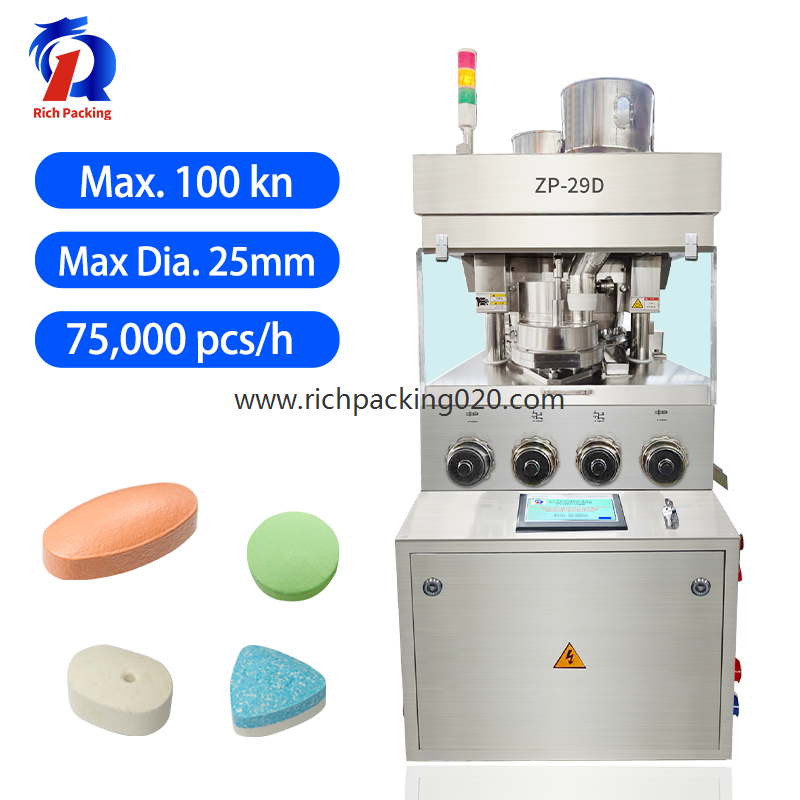

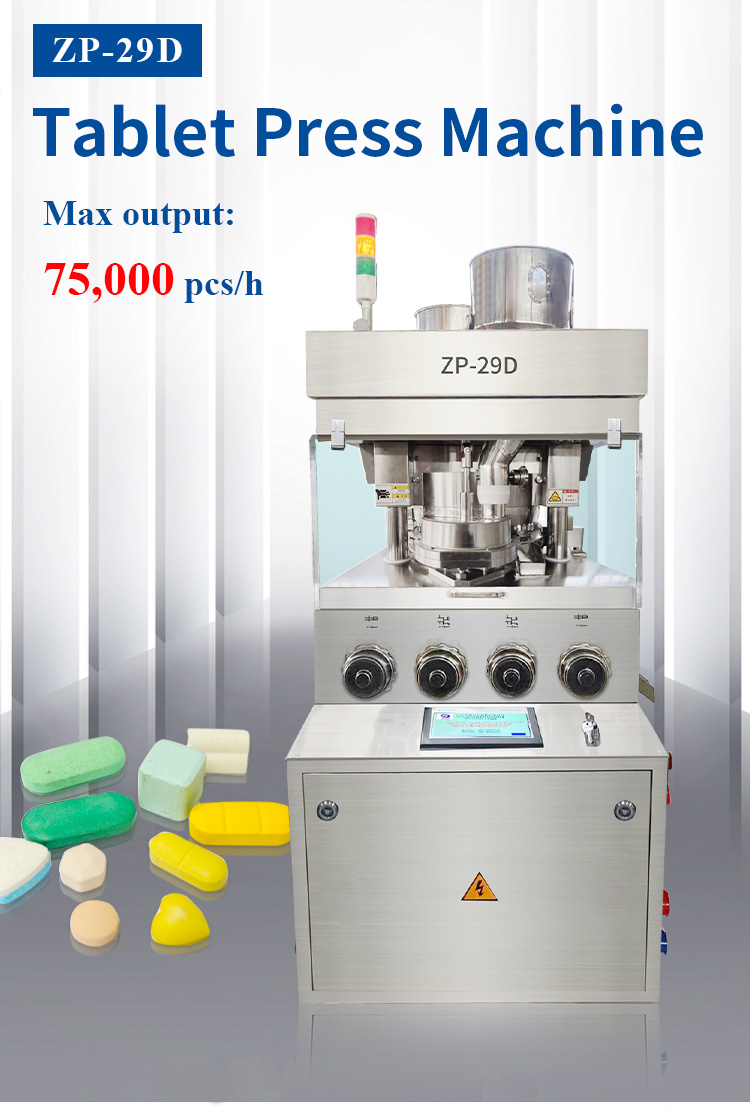

ZP-29D is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet.
Dies No. | 29 set |
Max. Production Capacity | 75000 pcs/h |
Max. Pressure | 100KN |
Max. Dia. of Tablet | 24mm |
Max. Depth of Filling | 24mm |
Max. Thickness of Tablet | 12mm |
Dia. Of Middle Die | Ф38.1mm |
Length of Upper/Lower Punching Bar | 115mm/133.4mm |
Dia.of Upper/Lower Punching Bar | Ф25.4mm |
Rotary Speed | 5～21 r/min |
Motor | 5.5kw |
Weight of Machine | 1600kg |
Outline Dim. | 1040*910*1690mm |
Packing Size | 1340×1100×1960mm |
Packing size of Dust Collector | 960×620×1460 mm |
