Introduction

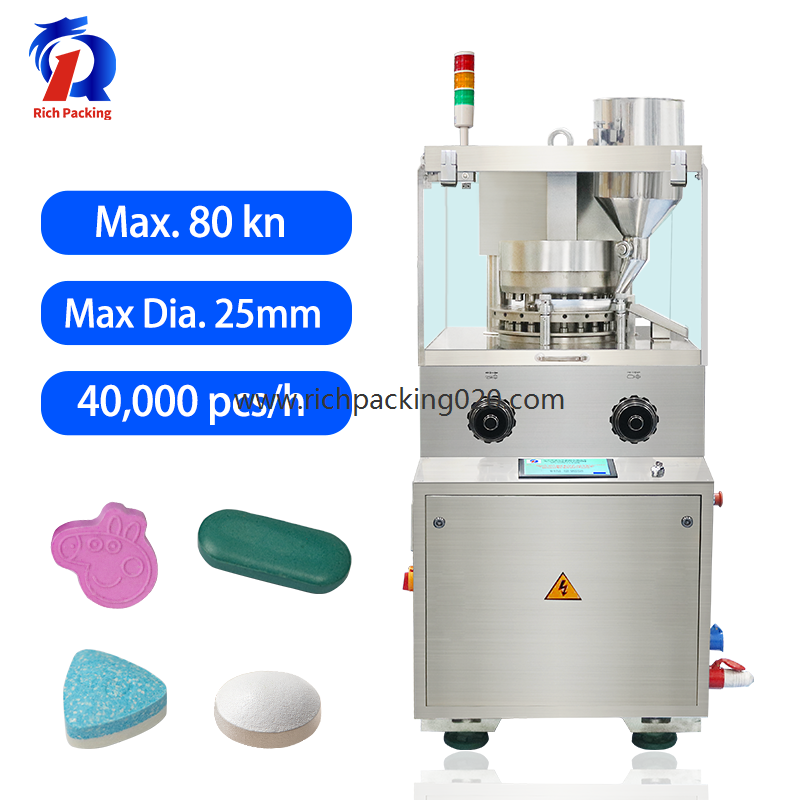

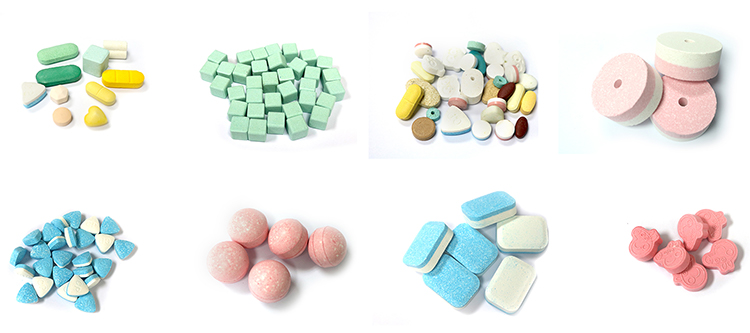

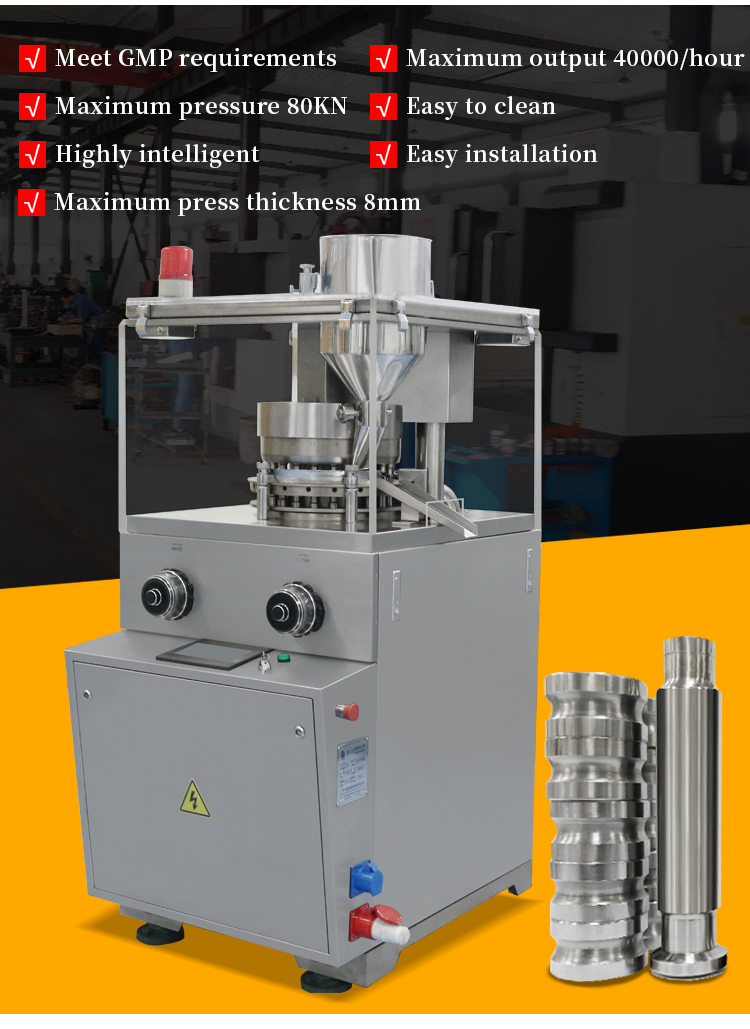

ZP-20 is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. It is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, it is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
Main Features

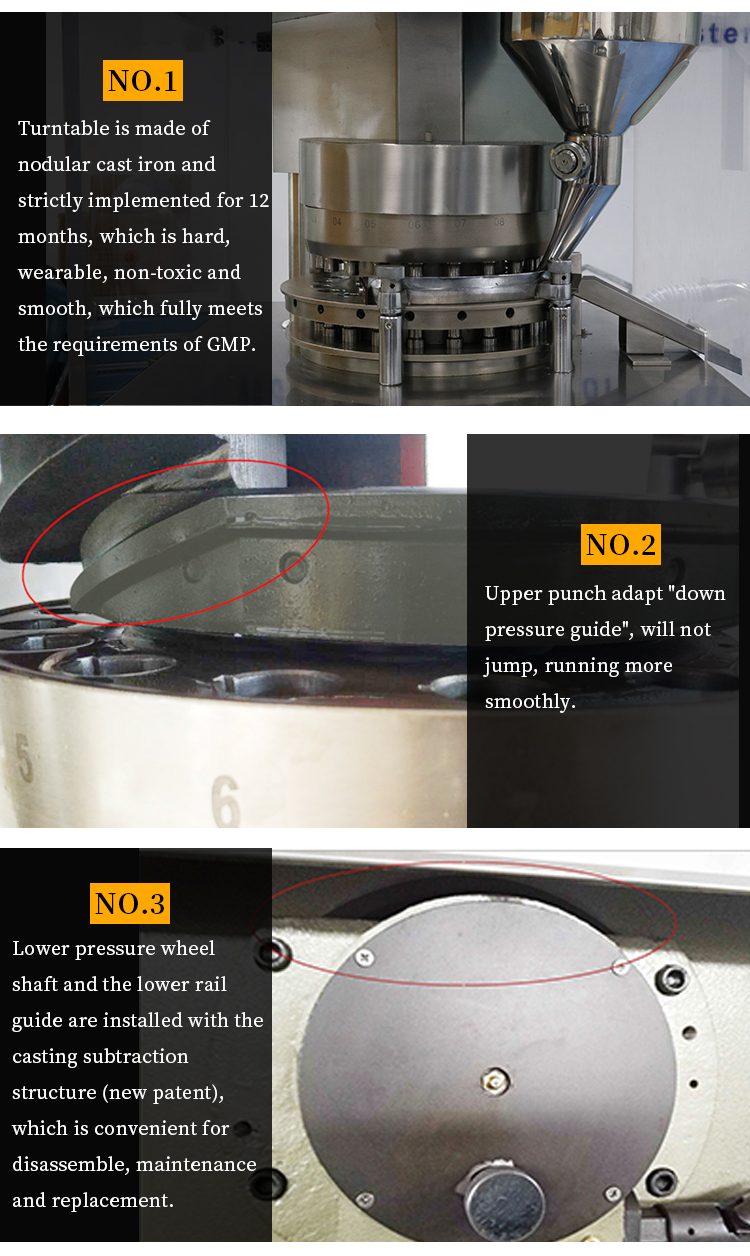

1.This machine conforms to GMP standard. Its tablet pressing chamber is completely separated from the driving mechanism.
2.The parts contacting with the drug are made of stainless steel or their surfaces are given the special treatment. Moreover, it is featured with non- toxicity and corrosion prevention.
3.The tablet pressing chamber is enclosed by the transparent organic glass to prevent pollution. Every surface is smooth, easy for treatment.
Main Technical Parameters
Dies No. | 20 set |
Max. Production Capacity | 40000 pcs/h |
Max. Pressure | 80KN |
Max. Dia. of Tablet | 25mm |
Max. Depth of Filling | 18mm |
Max. Thickness of Tablet | 8mm |
Dia. Of Middle Die | Ф38.1mm |
Length of Upper/Lower Punching Bar | 133.4mm |
Dia.of Upper/Lower Punching Bar | Ф25.4mm |
Rotary Speed | 4～32 r/min |
Motor | 4.0kw |
Weight of Machine | 1200kg |
Outline Dim. | 840×1015×1720mm |
Packing Size | 1340×1100×1960mm |
Packing size of Dust Collector | 960×620×1460 mm |
