Introduction

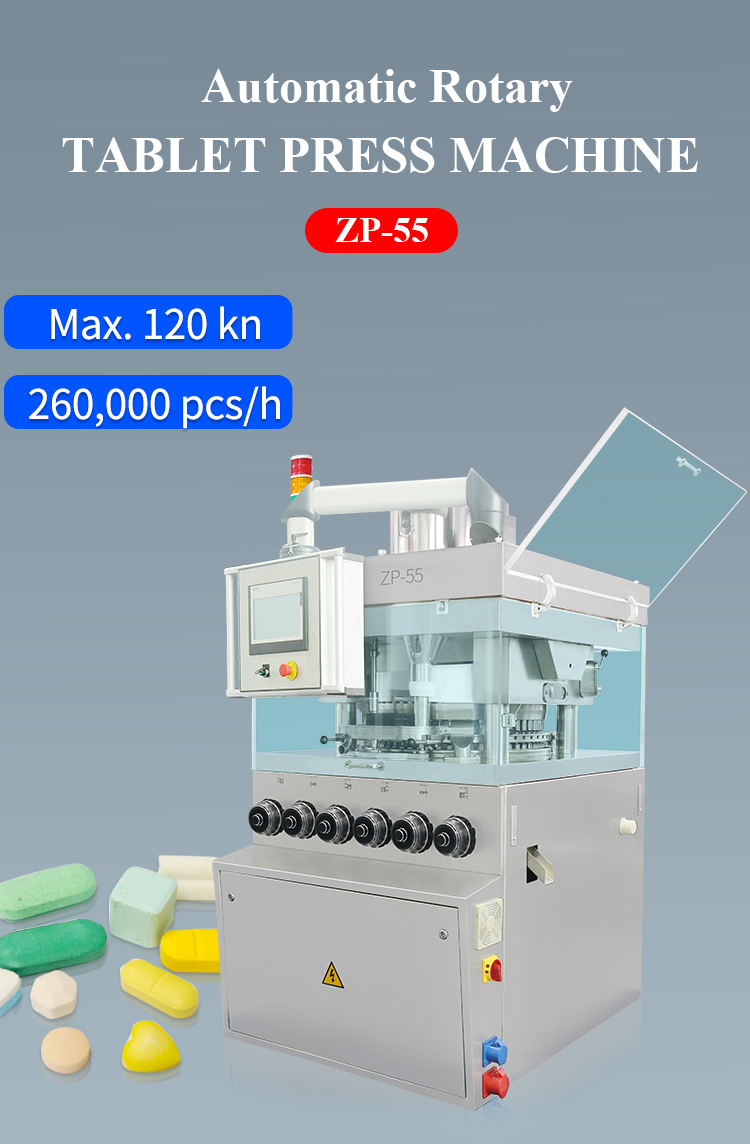

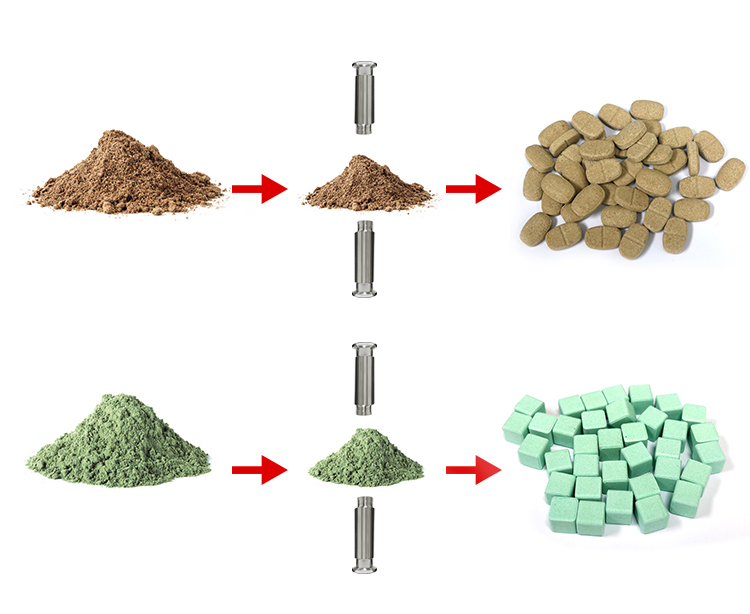

ZP-55 series is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. It is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, it is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
Main Features
1.This machine conforms to GMP standard. Its tablet pressing chamber is completely separated from the driving mechanism.
2.The parts contacting with the drug are made of stainless steel or their surfaces are given the special treatment. Moreover, it is featured with non- toxicity and corrosion prevention.
3.The tablet pressing chamber is enclosed by the transparent organic glass to prevent pollution. Every surface is smooth, easy for treatment.
Main Technical Parameters
Model | ZP-55 | ZP-51 | ZP-41 |
Dies No. | 55 set | 51 set | 41 set |
Max. Production Capacity | 260000/h | 220000/h | 160000/h |
Max. Pre-pressure | 20KN | ||
Max. Pressure | 120KN | ||
Max. Dia. of Tablet | 13mm | 19 mm | 25 mm |
Max. Depth of Filling | 18mm | 18mm | 18mm |
Max. Thickness of Tablet | 8mm | 9mm | 9mm |
Power of Motor | 7.5kw | ||
Weight of Machine | 2000kg | ||
Outline Dim. | 1220*1120 mm | ||
Packing Size | 1600*1300*2160mm | ||
Packing size of Dust Collector | 960*620*1460 mm | ||
