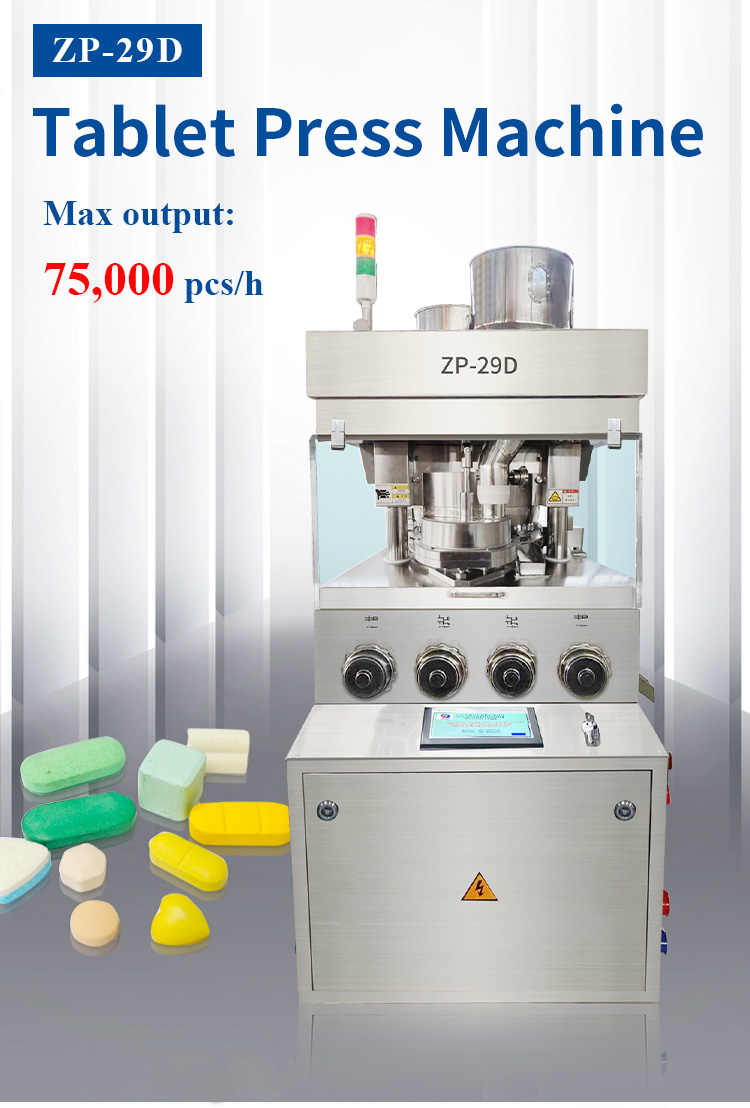

Introduction
This series of products is an upgraded version of automatic double rotary tablet press machine, which can continuously press powder and particle into round tablets, special-shaped tablets, double color and annular tablet. It has the advantage of large pressure and easy operation, suitable for pressing low density and low weight material like charcoal powder. It is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, it is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
Main Features
1.This machine conforms to GMP standard. Its tablet pressing chamber is completely separated from the driving mechanism.
2.The parts contacting with the drug are made of stainless steel or their surfaces are given the special treatment. Moreover, it is featured with non- toxicity and corrosion prevention.
3.The tablet pressing chamber is enclosed by the transparent organic glass to prevent pollution. Every surface is smooth, easy for treatment.
Main Technical Parameters
Size | ZP-21 | ZP-25 |
Dies No. | 21 sets | 25 sets |
Max. Production Capacity | 50000 pcs/h | 60000 pcs/h |
Max.Pressure | 100KN | 100KN |
Max.Dia. of Tablet | 40mm | 32mm |
Max. Depth of Filling | 30mm | 30mm |
Max.Thickness of Tablet | 14mm | 14mm |
Dia. Of Middle Die | 55mm | 55mm |
Heigt of Middle Die | 28mm | 28mm |
Length of Upper/Lower Punching Bar | 133.4mm | 133.4mm |
Dia.of Upper/Lower Punching Bar | 40mm | 40mm |
Rotary Speed | 20 | 20 |
Motor | 7.5kw | 7.5kw |
Weight of Machine | 2000kg | 2000kg |
Outline Dim. | 1100*940*1800 mm | 1100*940*1800 mm |
Packing Size | 1340*1100*1960mm | 1340*1100*1960mm |
Packing size of Dust Collector | 960*620*1460 mm | 960*620*1460 mm |
