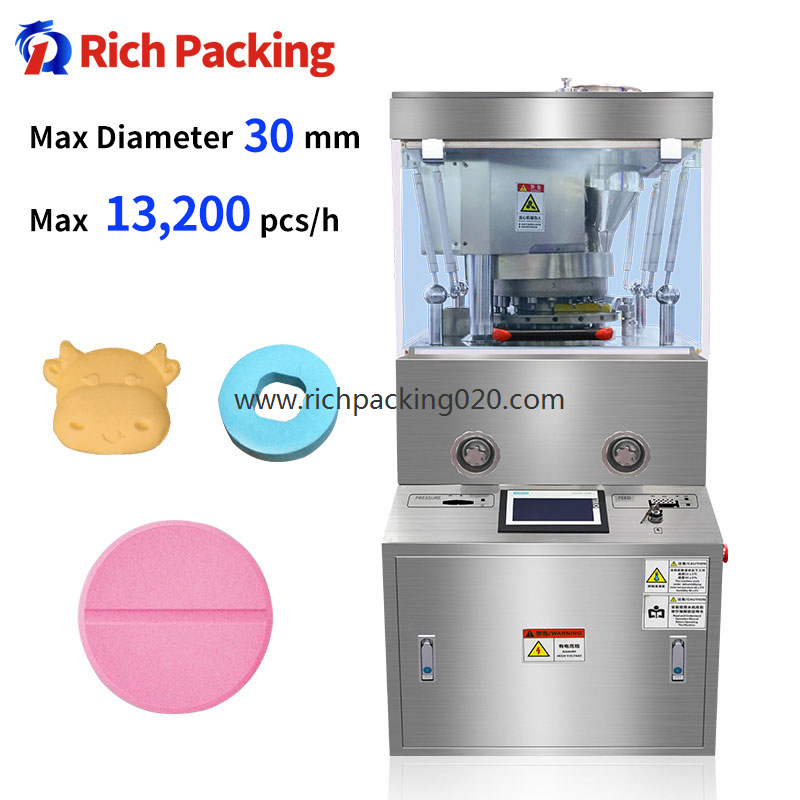

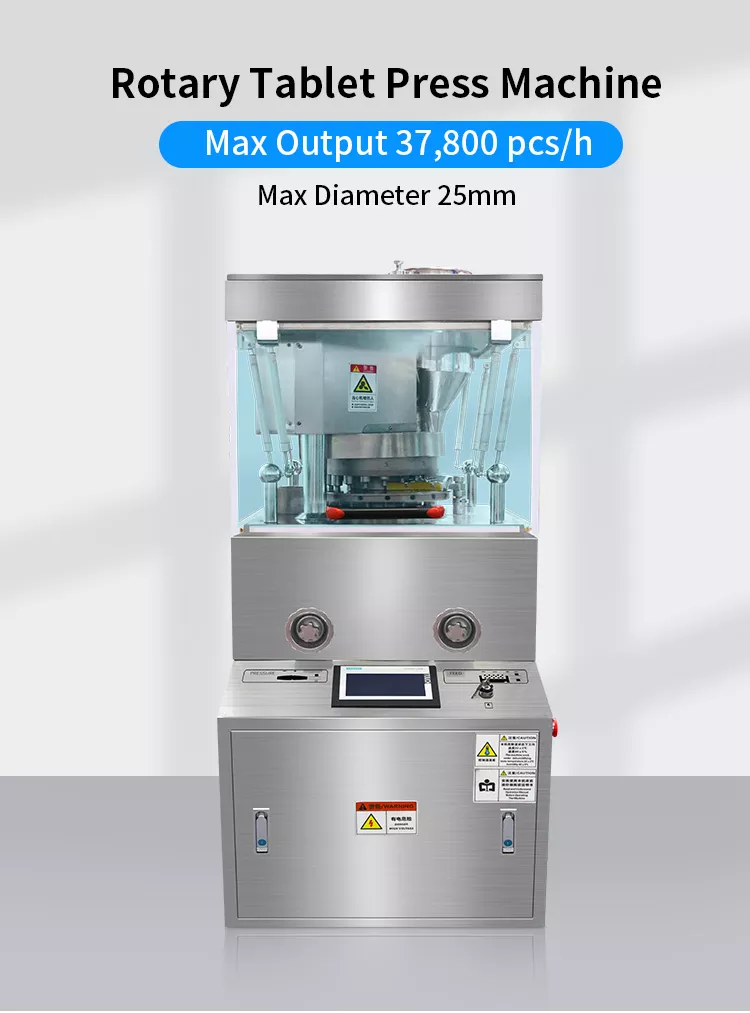

Model | ZP11D | ZP15D | ZP17D | ZP19D | ZP21D |
Dies No. | 11 | 15 | 17 | 19 | 21 |
Max. Pressure | 100kn | 80 kn | 60 kn | 60 kn | 60 |
Max. Dia. of Tablet | 40mm | 25 mm | 20 mm | 13 mm | 12 mm |
Max. Depth of Filling | 28 mm | 15 mm | 15 mm | 15 mm | 15 mm |
Max.Thickness of Tablet | 10 mm | 6 mm | 6 mm | 6 mm | 6 mm |
Rotary Speed | 20r/min | 30 r/min | 30 r/min | 30 r/min | 30 r/min |
Max. Production Capacity | 13200 pc/h | 27000 pc/h | 30600 pc/h | 34200 pc/h | 37800 pc/h |
Power | 3.0kw | ||||
voltage | 220v/380v | ||||
Size | 890*650*1680mm | ||||
Weight | 1000kg | ||||
1. This machine has high pressure and large tableting range, and can compress tablets of various shapes, such as ordinary, irregular and circular shapes.

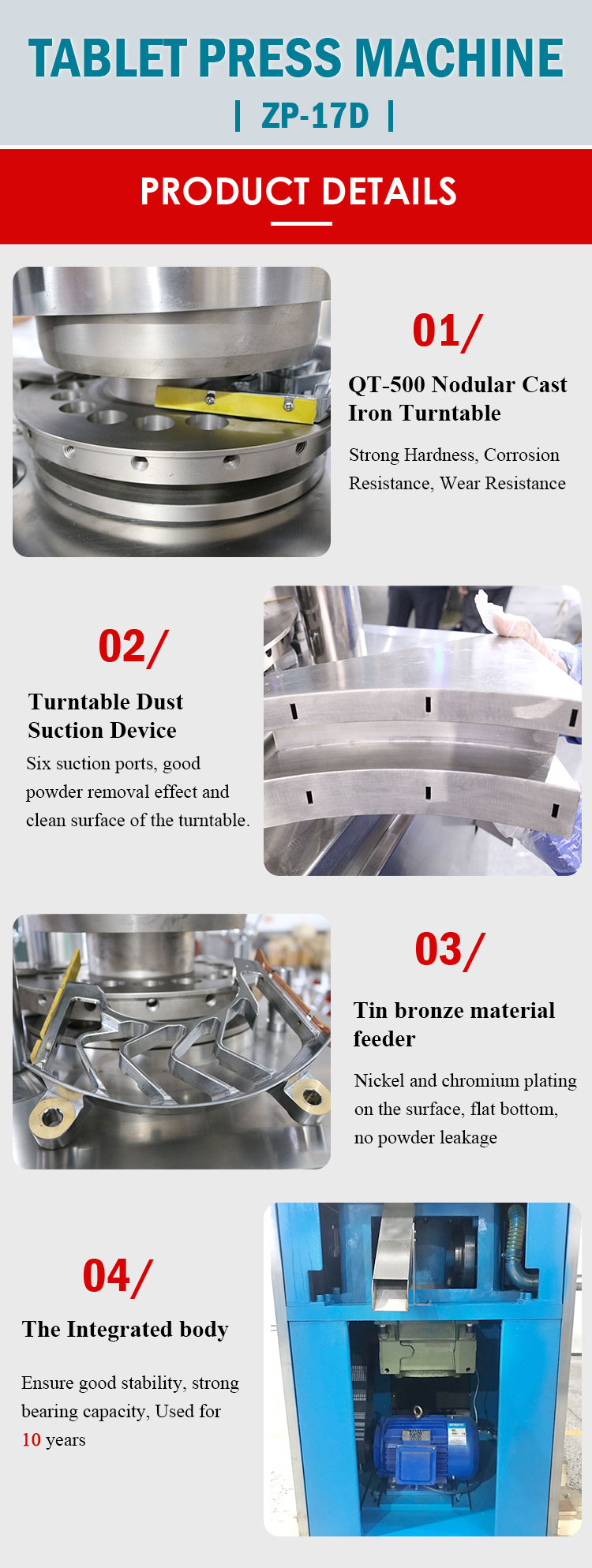

2. ZP-17D series tablet press is equipped with pressure overload protection device, once overloaded, it will automatically stop to avoid equipment damage.
3. This tablet press is equipped with a turntable double suction, with six suction ports up and down, with good powder removal effect and a clean surface of the turntable.
4. The turntable is made of nodular cast iron QT500, pressed by solid bar material, with strong hardness, heat resistance, wear resistance and good system stability.
5. Safety first. The safety concept runs through the links of feeding, suppression, emergency stop protection, etc., to ensure the safety of every drop.
6. The oil intrusion lubrication transmission mechanism has low noise and good lubrication effect.
7. The power part is sealed and placed at the bottom to prevent contact with materials and reduce secondary pollution.
8. Digital display adjustment: Filling depth and pressure adjustment are digitized, making adjustment more precise and convenient.
9. The structure is stable. The bracket part is made of cast iron, which has good stability.
10. Low noise. The upper and lower rails are made of cast steel. The running arc and angular position of the rails are designed scientifically. The large-angle linear structure makes the mold run smoothly and has low noise.
11. The mold is made of GCR15 material, which has strong hardness and good corrosion resistance.
12. The whole machine is made of stainless steel 304, which can prevent mutual contamination of materials, facilitate cleaning, and meet GMP standards.
13. The tablet press room is 100% isolated with transparent plexiglass (acrylic board), which can effectively prevent materials from moisture absorption and pollution, and is convenient for operation, cleaning and maintenance.
14. The motor belt adopts synchronous gear belt, which is not easy to slip and the power transmission is stable.
